Marinus Cross-profiling machine / End profiling machine - second-hand

Description

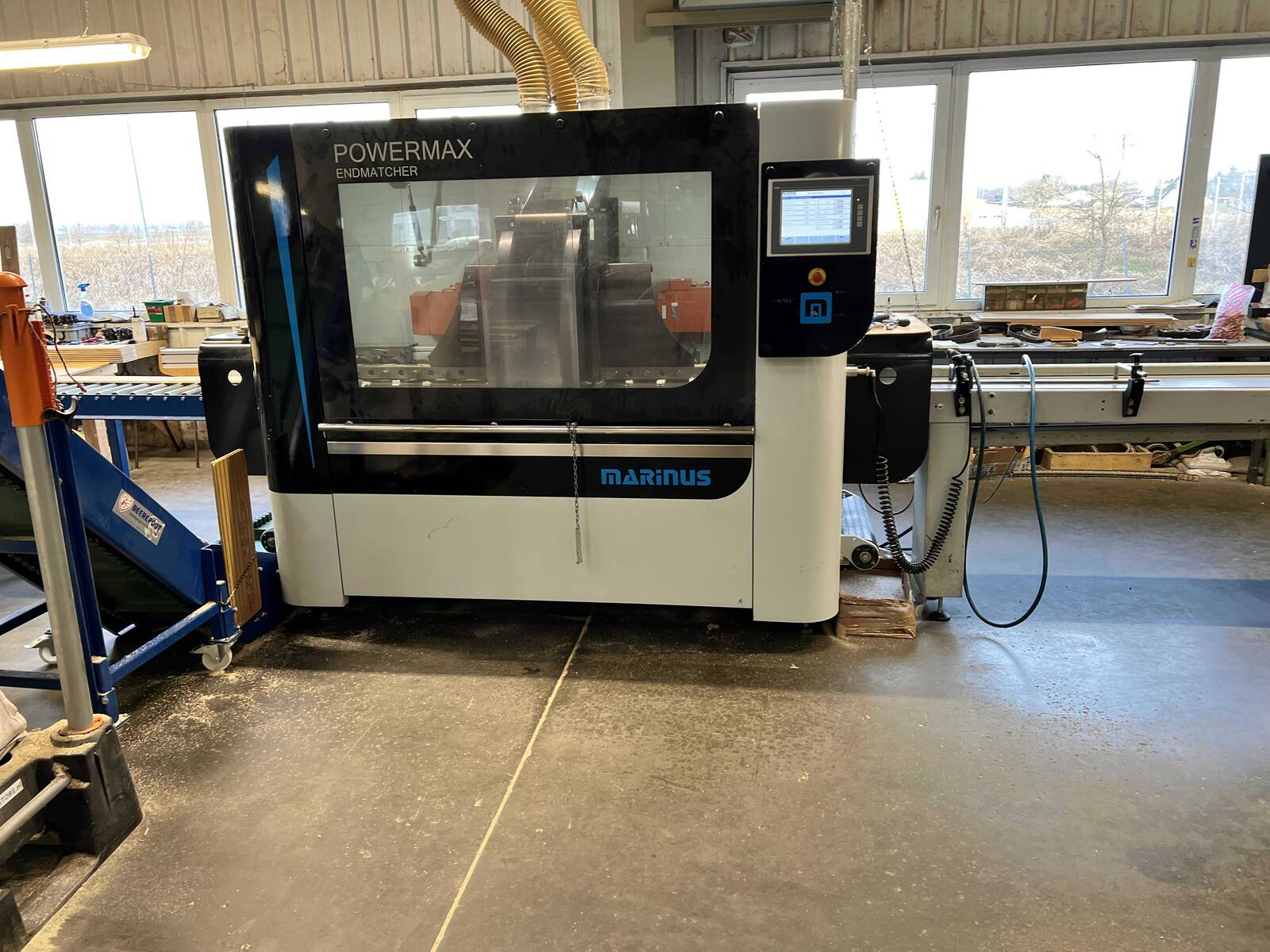

Cross-cutting and End-profiling Machine
Manufacturer: Marinus
Model: Powermax Endmatcher 300

Year of manufacture: 2017

Well-maintained machine, previously used in a parquet manufacturing facility

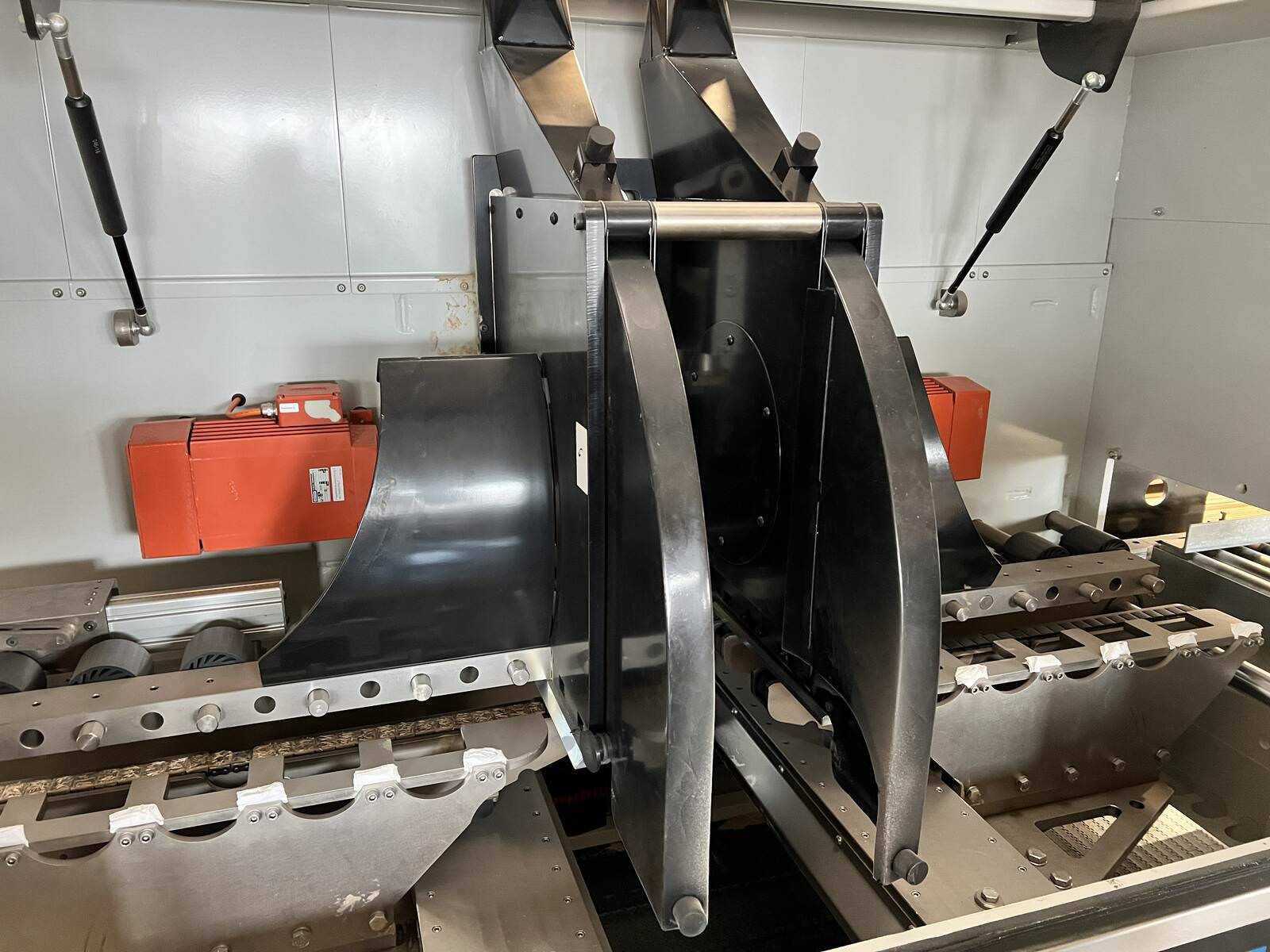

The Powermax Endmatcher is designed for end-side processing (tongue-and-groove machine) of floorboards, decking boards, and paneling in a continuous-feed process.

Workpiece widths: approx. 60–310 mm
Workpiece length: min. approx. 450 mm
Workpiece thickness: approx. 10–45 mm

Control via touch panel at the machine inlet

Air pressure: 6 bar
Power: 400 VAC / 50 Hz
Total power consumption: 32 kW

Dimensions approx. 3000 x 1800 x 2000 mm LxWxH
Weight approx. 3500 kg

Includes a powered infeed conveyor and an unpowered outfeed roller conveyor
Includes a vertical waste conveyor for transporting offcuts/scrap wood
Includes 5 tool sets / cutters (for 10–20 mm thicknesses, top and bottom with chamfer) as well as saw blades, if available.

Some information taken from the brochure.

Expected to be available starting in January 2027!
