Description

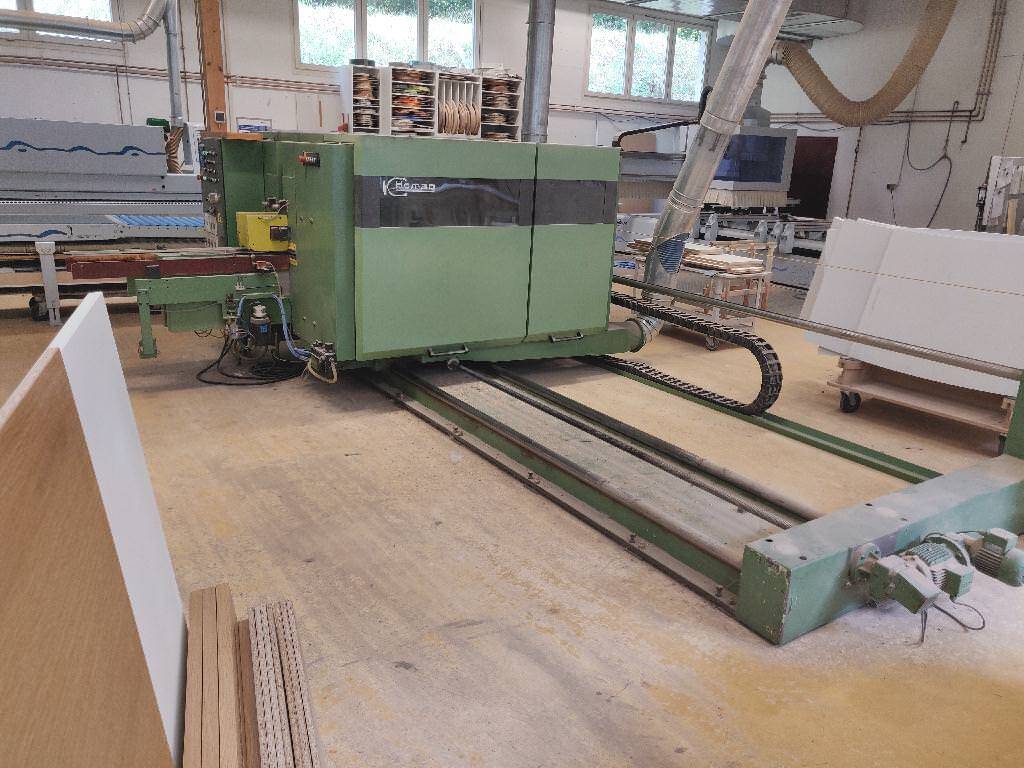

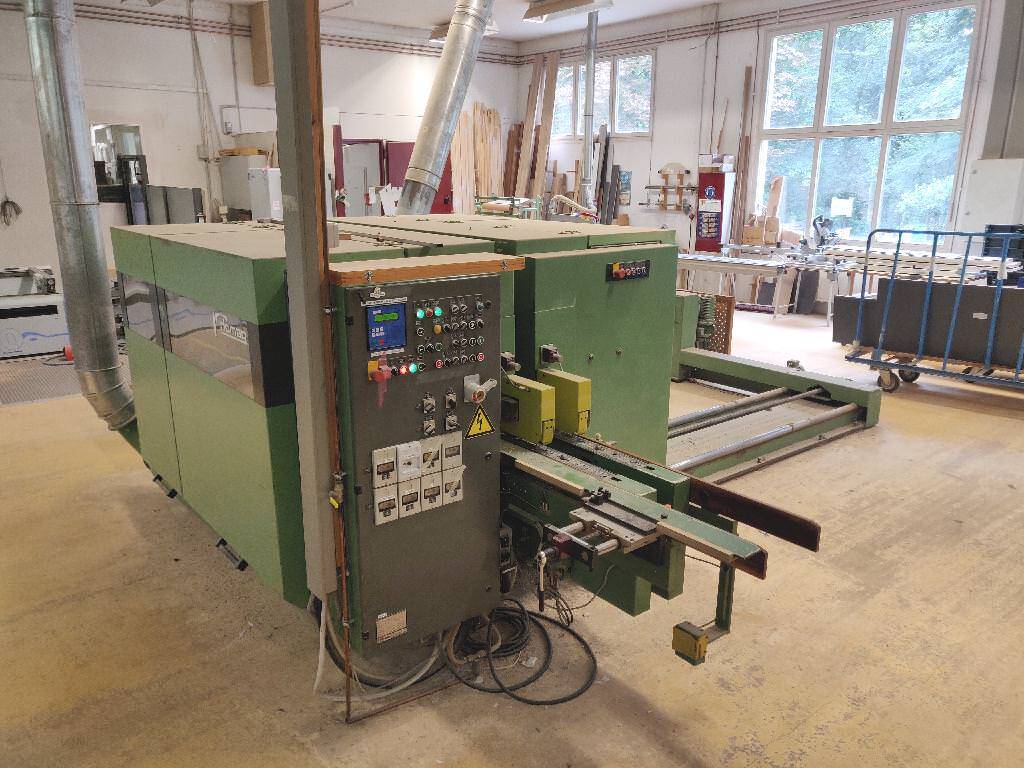

Double-end profiling machine
make Homag
type FLO 22
Workpiece width min. approx. 190 mm – 2600 mm
Workpiece thickness 8 – 90 mm
Workpiece overhang adjustable 10 – 120 mm
Working height from floor 905 mm
Feed infinitely variable 5- 25 m/min.
Magnetic braking of the feed motor

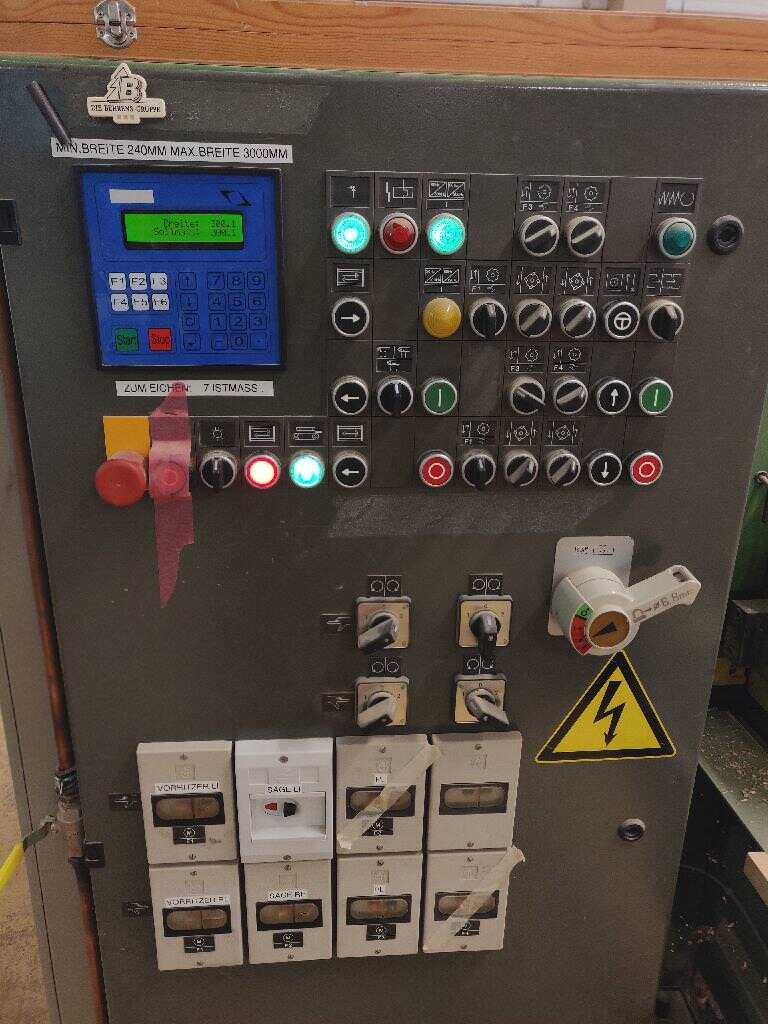

Electronic width adjustment, positioning in rapid/creep mode,
Adjustment speed max. 3 m/min.
Transport chain with cams, cam spacing 900 mm, cam height adjustable up to 20 mm
Input on left side of machine

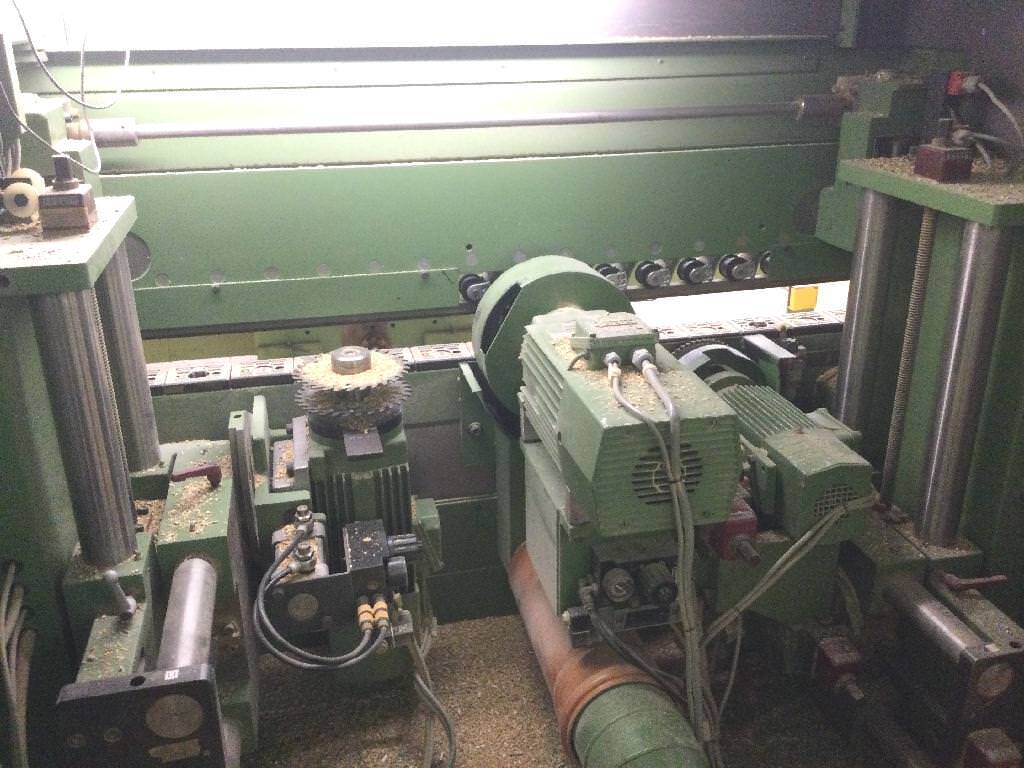

Equipped with 3 motors on each side:
Scribing unit 1.5 kW controlled, motor brake, 100 Hz, 6000 rpm,
for tool diameter max. 180 mm
Cutter 4.5 kW, motor brake, 100 Hz, 6000 rpm,
15° swivel, for tool diameter max. 250 mm
Milling motor 4.5 kW, electro-pneumatic control for insert milling,
motor brake, swivel range 90 degrees, 100 Hz, 6000 rpm,
reversing switch for direction of rotation, extraction hood,
tool diameter max. 200 mm
Free space for mounting a standard milling unit
Complete with frequency converter 30 kVA, 100 Hz, IP 54
