Alpha Brush Structuring and sanding machine / brushing machine, 4-sided - new machine

Descripción

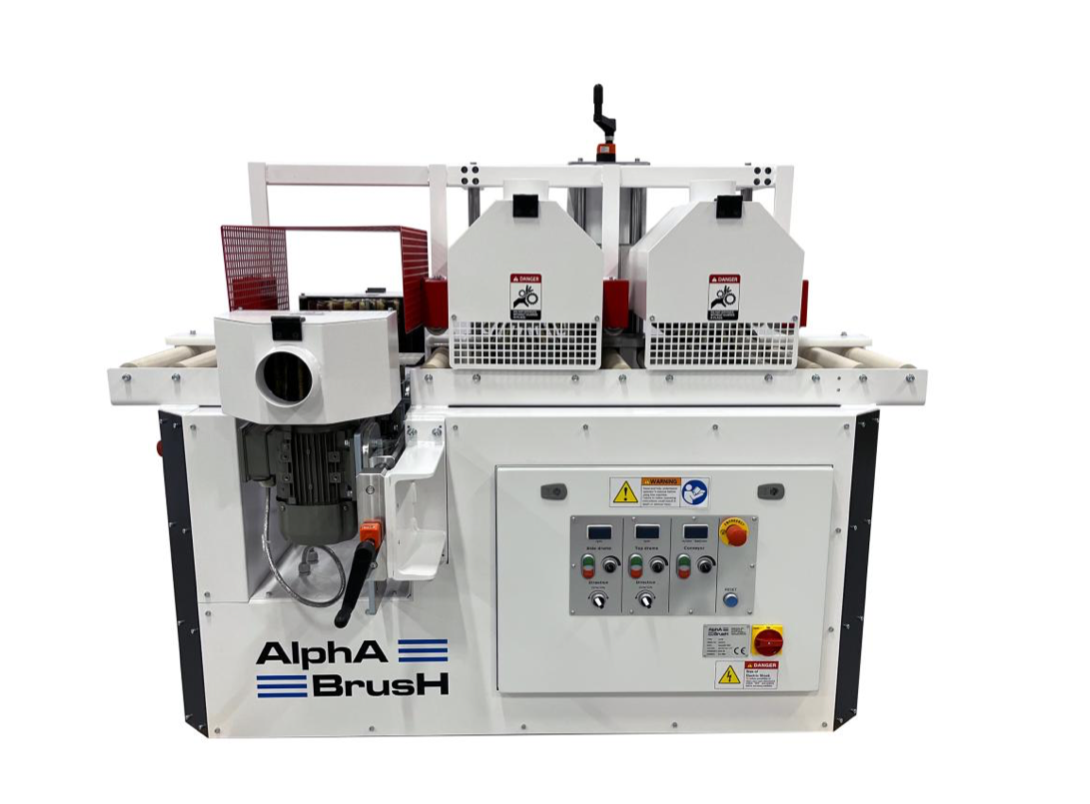

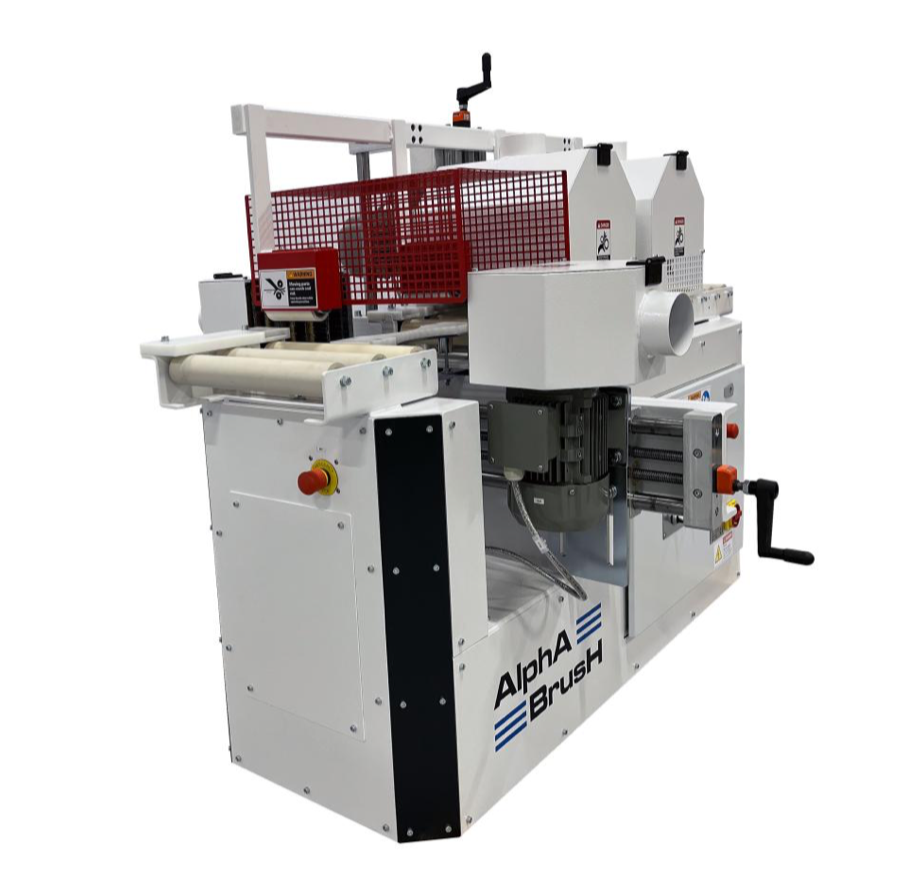

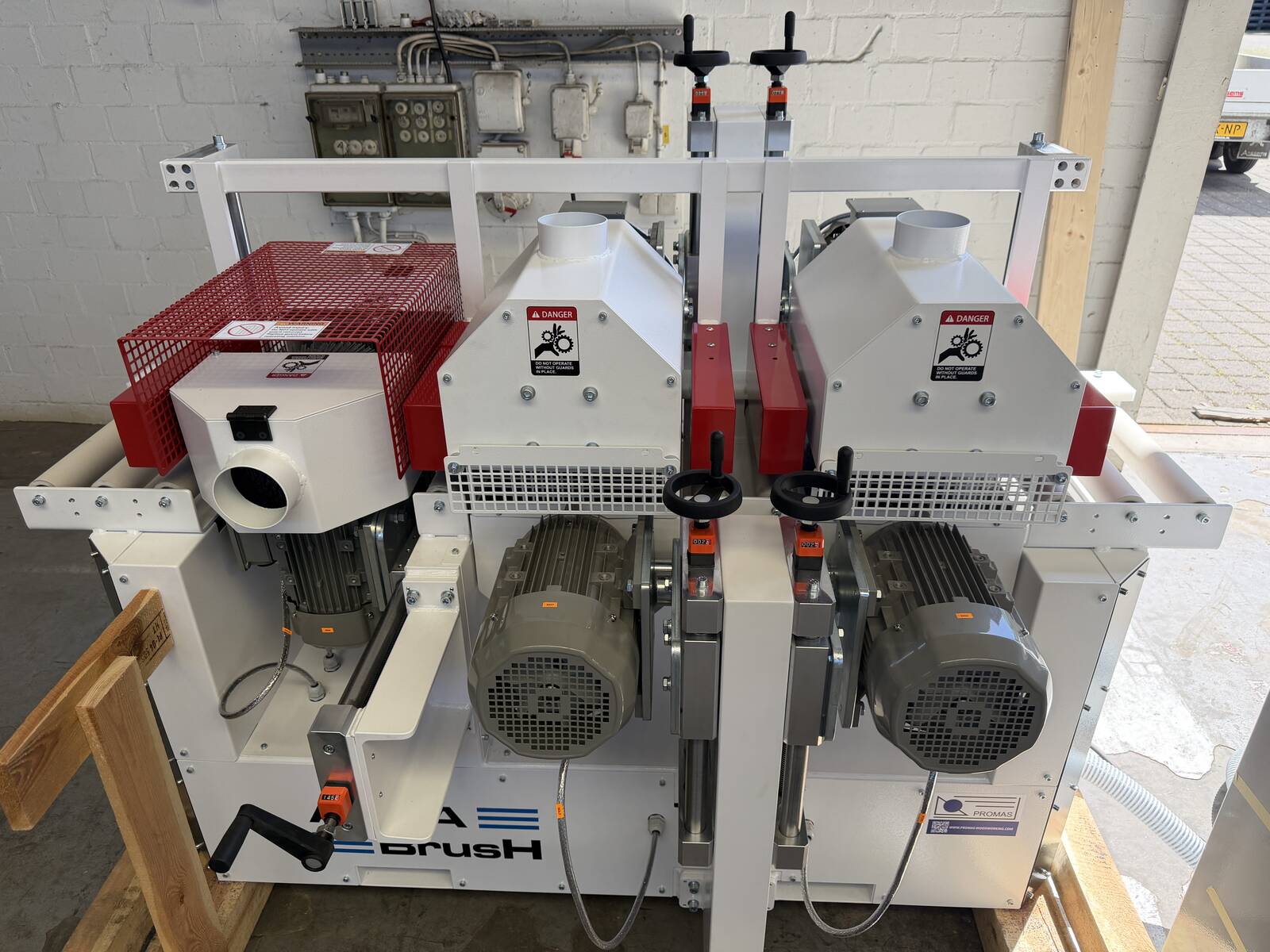

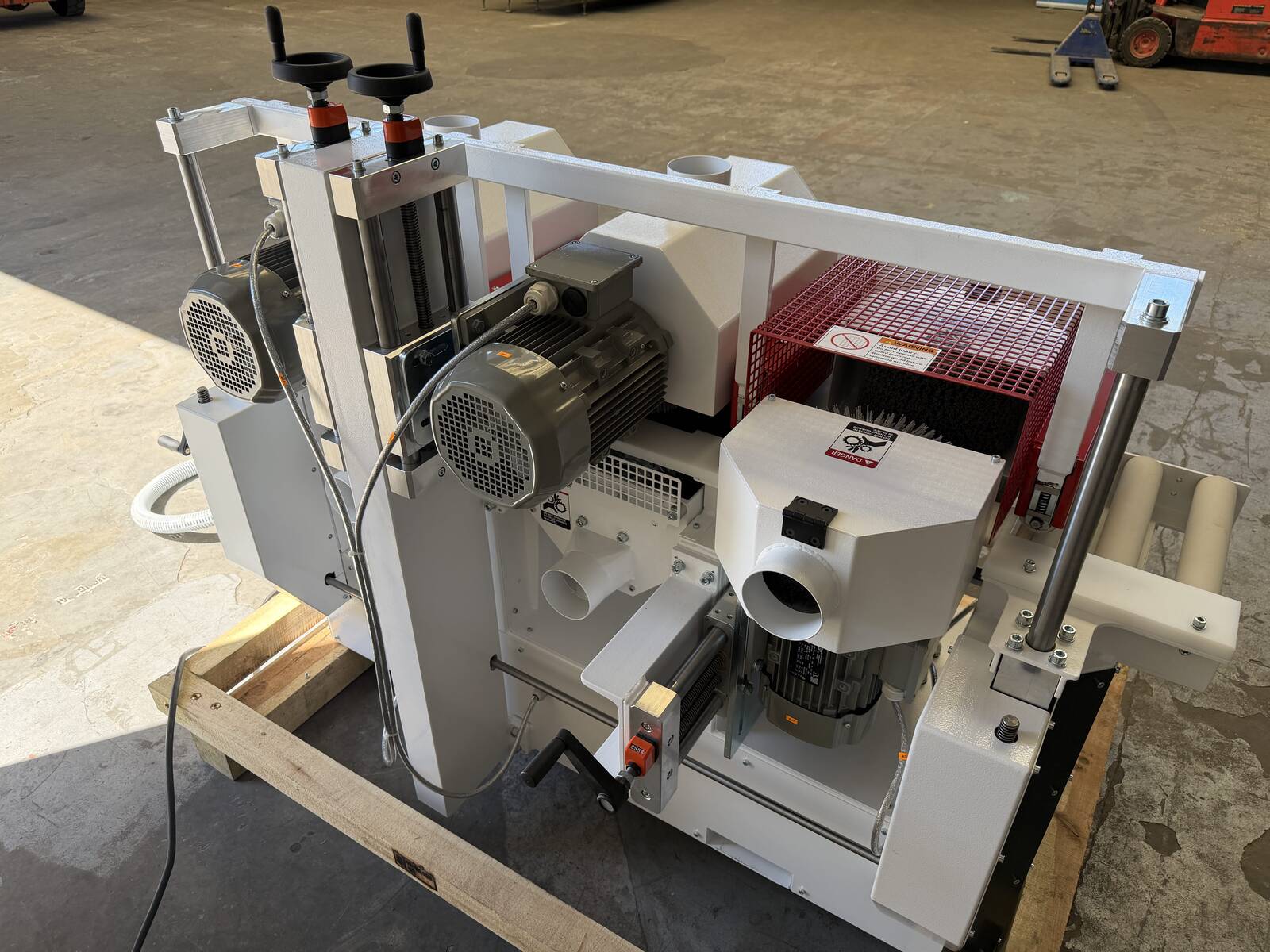

Structuring and sanding machine / brushing machine, 4-sided
Manufacturer: Alpha Brush
Type: LS-TSB

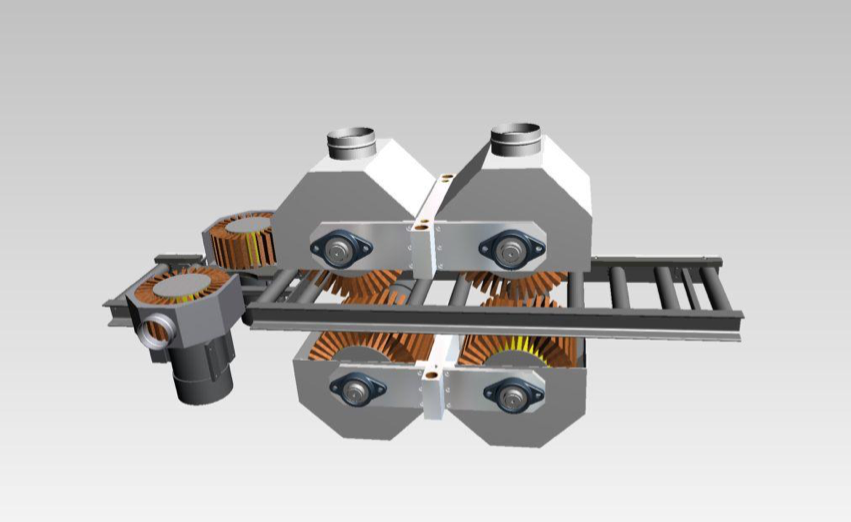

Universally applicable brush sanding machine with a total of 6 brush units for 4-sided sanding and structuring of wood-based materials such as panels, solid wood flooring, scaffolding boards, façade boards, etc.

Working width 300 mm
Clearance height 150 mm

Equipped with:
1x brush unit from above, 2.2 kW
1x brush unit from below, 2.2 kW
1x brush unit from above, 2.2 kW
1x brush unit from below, 2.2 kW
1x brush unit from the left, 1.1 kW
1x brush unit from the right, 1.1 kW

Speed per brush group infinitely variable (top, bottom, side)

Brush diameter 260 - 300 mm
Quick-change system for brush heads

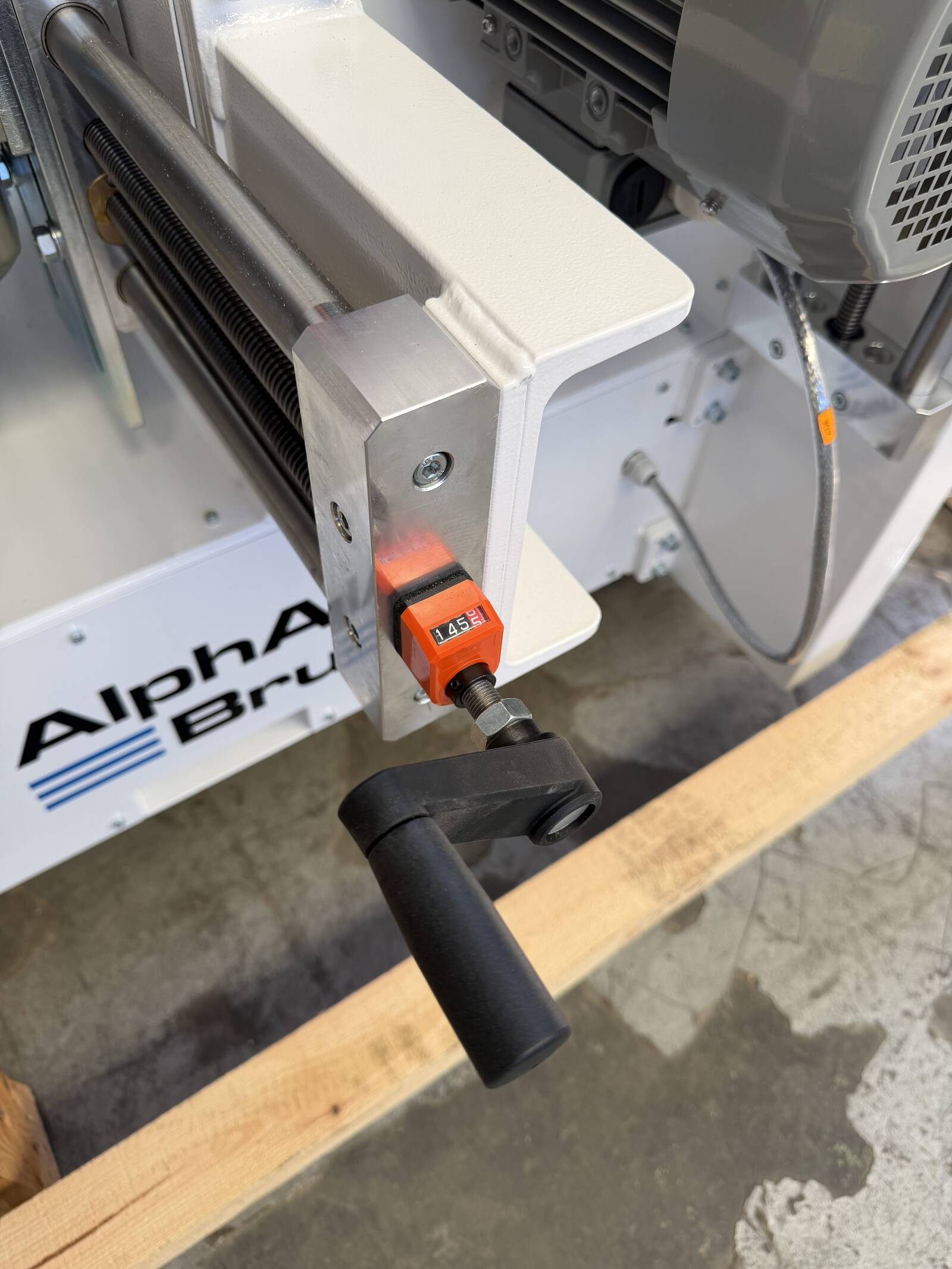

Spring-loaded pressure roller, individually adjustable in height

Infinitely variable feed, approx. 2 - 20 m/min., 0.75 kW

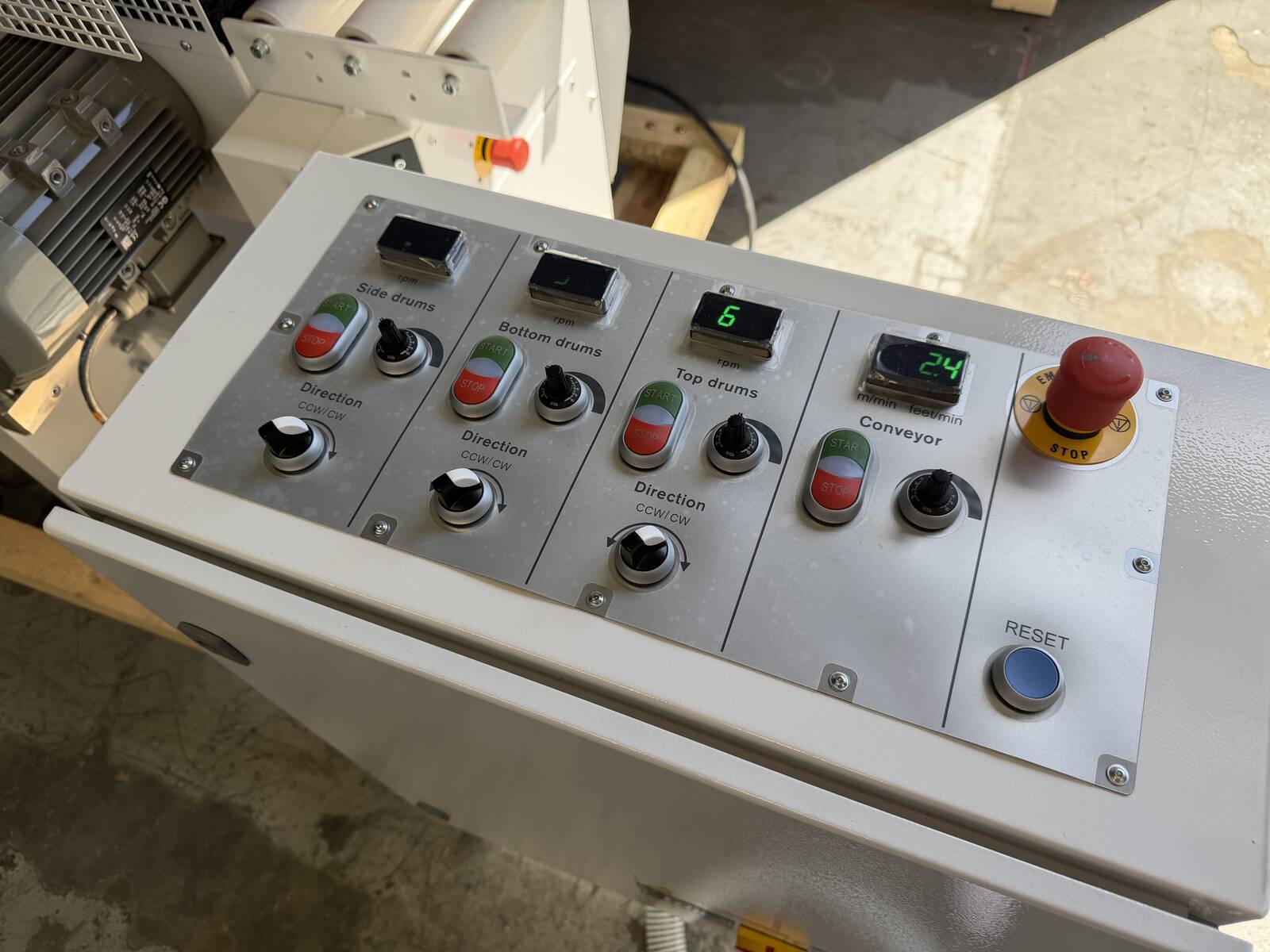

Digital display of settings

Voltage: 400 - 480 V, 3 Ph, 50/60 Hz

Dimensions approx. 1800 x 1400 x 1450 mm LxWxH
Weight approx. 850 kg
