Planing Machine for Construction Wood / Four-Side Planer
make Kupfermühle
type VUIN Plus 600
working width: 600 mm
working height: 250 mm
working height 4-sided: 4-seitig: 200 mm (230 mm possible, with little effort even 250 mm)
equipped with:
planing spindles: 4 pieces
spindle arrangement: u-o-r+l (bottom-top-right-left)
lower and upper cutter spindle with 4 HSS-knives and clamping strips
motors: 7,5-11-7,5-7,5 kW
feed motor: 4 kW
feed speed approx. 30 m/min
driven rolls in table; 3 pieces
feed rollers top: 4 pieces
transport rollers at outfeed; 2 pieces
constant table height: approx. 900 mm
weight approx. 4500 kg
The machine is checked and the planing spindles have a new bearing!
OPTIONAL (for an additional charge):
- additionally 5. saw spindle bottom with 11 kW motor
- feed controlled by frequency changer

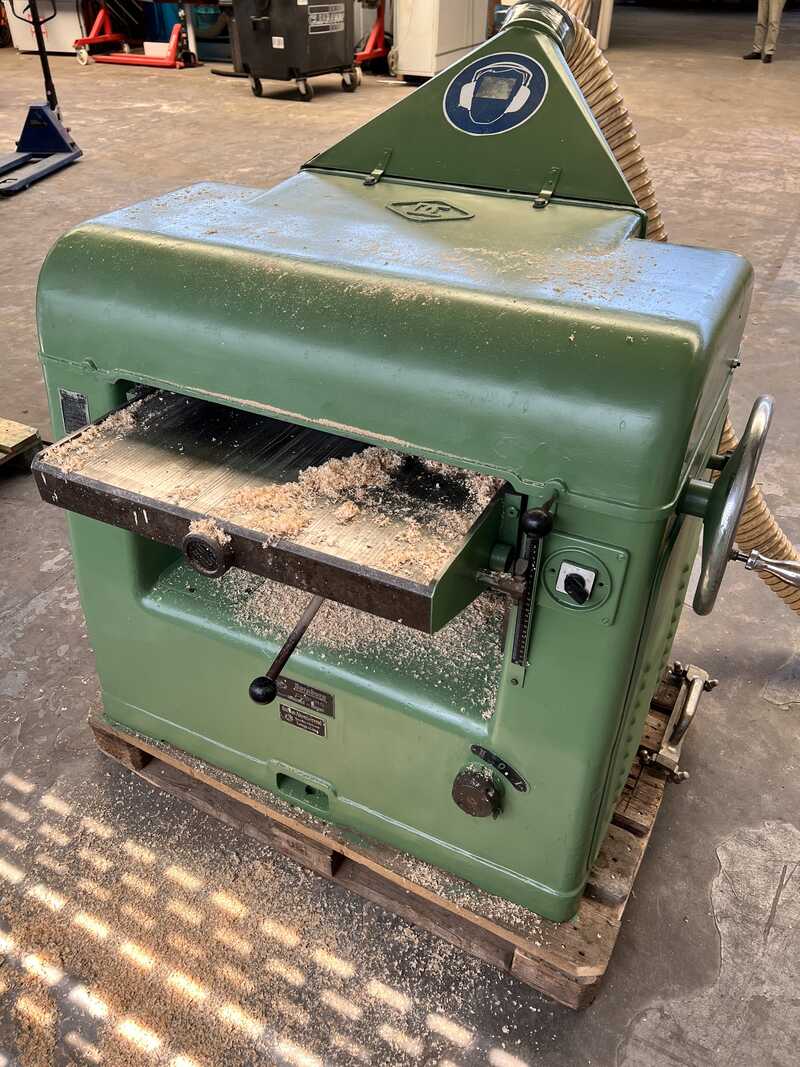

Fotos de
