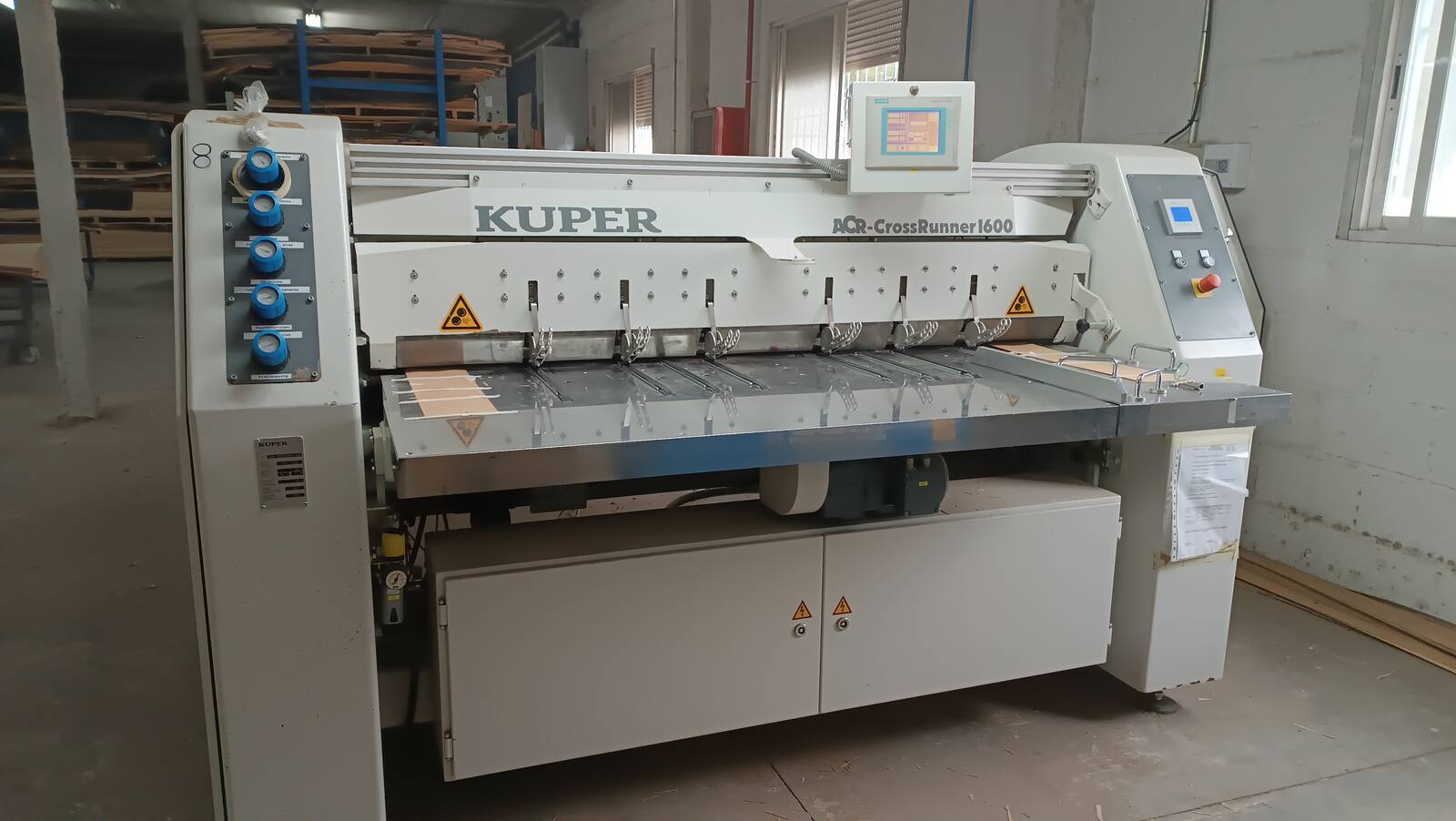

Kuper Veneer cross-lamination machine / Cross Veneer Splicer - used

Descripción

Cross veneer splicing machine / Cross splicing machine
Manufacturer: Kuper
Type: ACR CrossRunner 1600

Year of manufacture: 2007

Narrow cross splicing machines for pre-glued veneer strips with a small working width. The machine works much faster in crosswise operation than longitudinal machines, making it an economical alternative for cross-veneered interior doors or smaller furniture parts, for example.

Working width 1600 mm (in the grain direction)
Veneer strip width from approx. 60 mm
Veneer thickness approx. 0.3 - 2.5 mm

Feed approx. 30 m/min.
Glue types: PVAc or urea

With automatic destacking

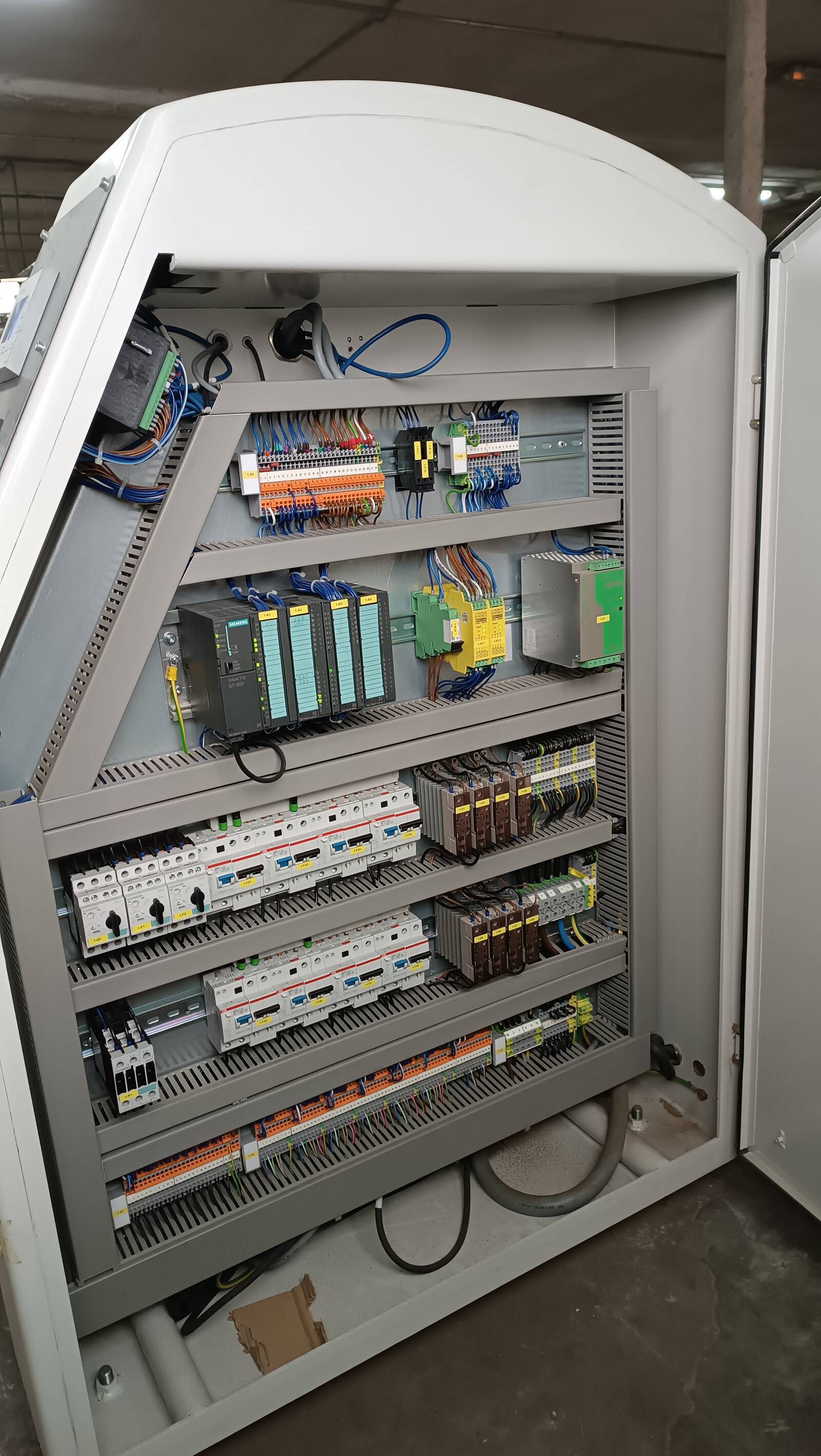

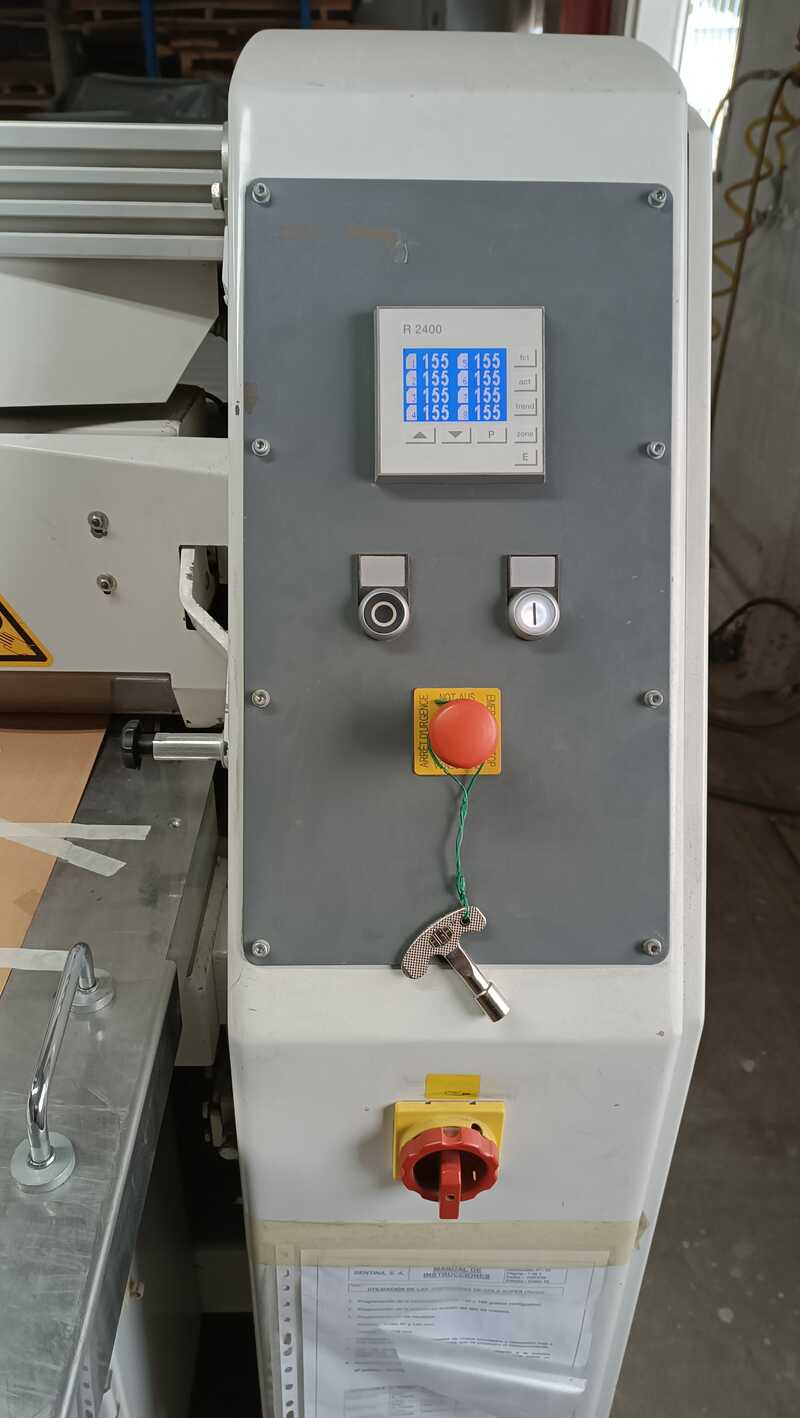

Control: Siemens Simantic with touch display

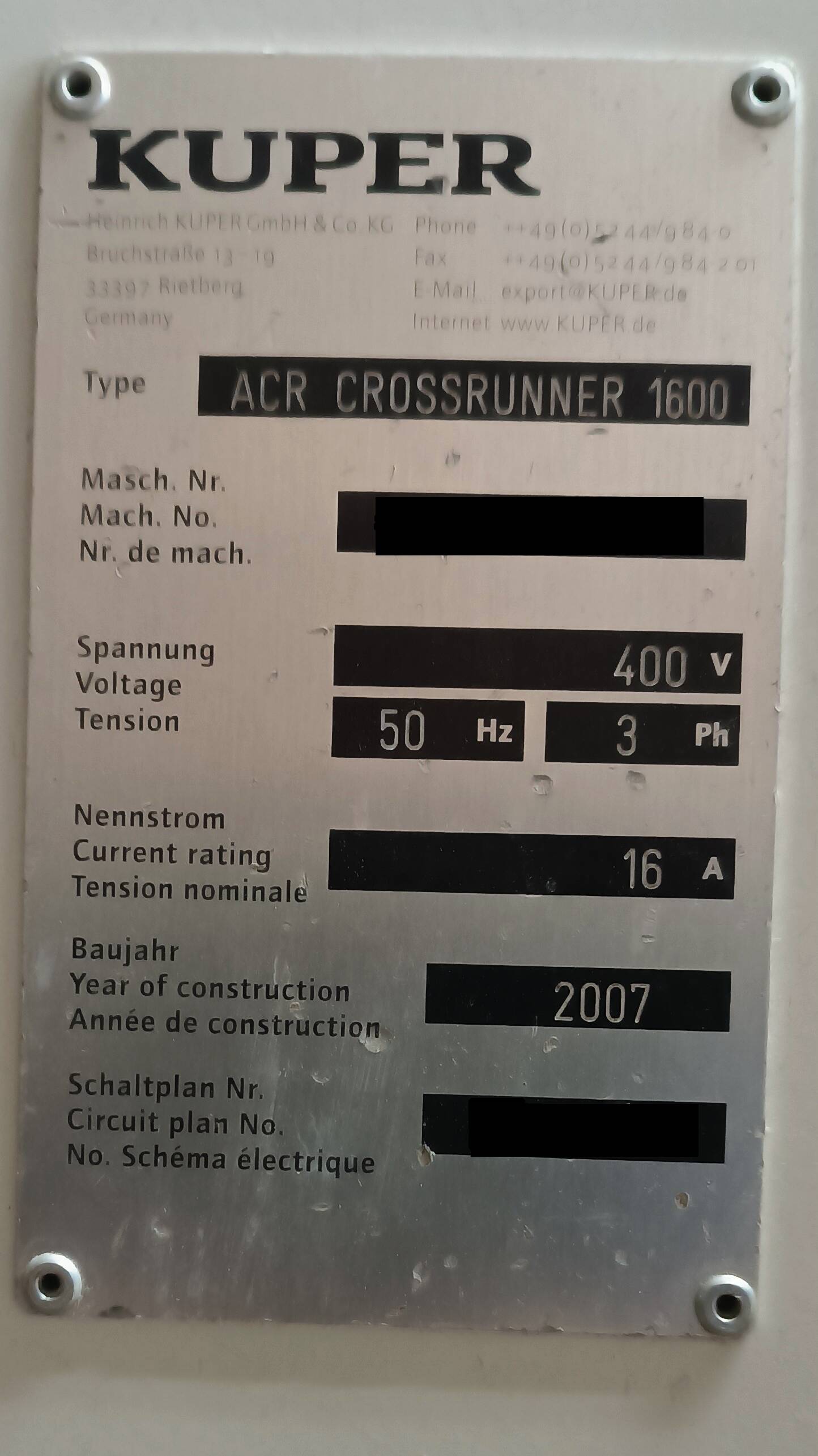

Voltage: 400 V, 50 Hz, 3 Ph
Rated current: 16 A

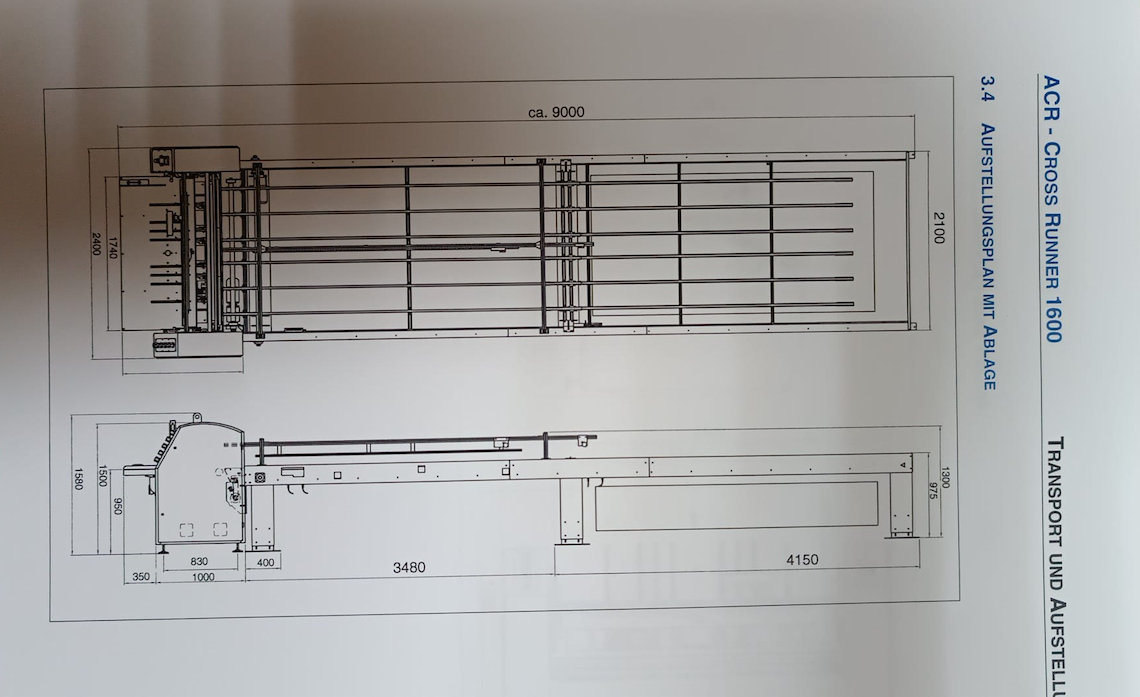

Installation dimensions approx. 2400 x 9000 mm WxL
