Stenner Vertikale Blockbandsäge / Trennbandsäge - gebraucht

Descripción

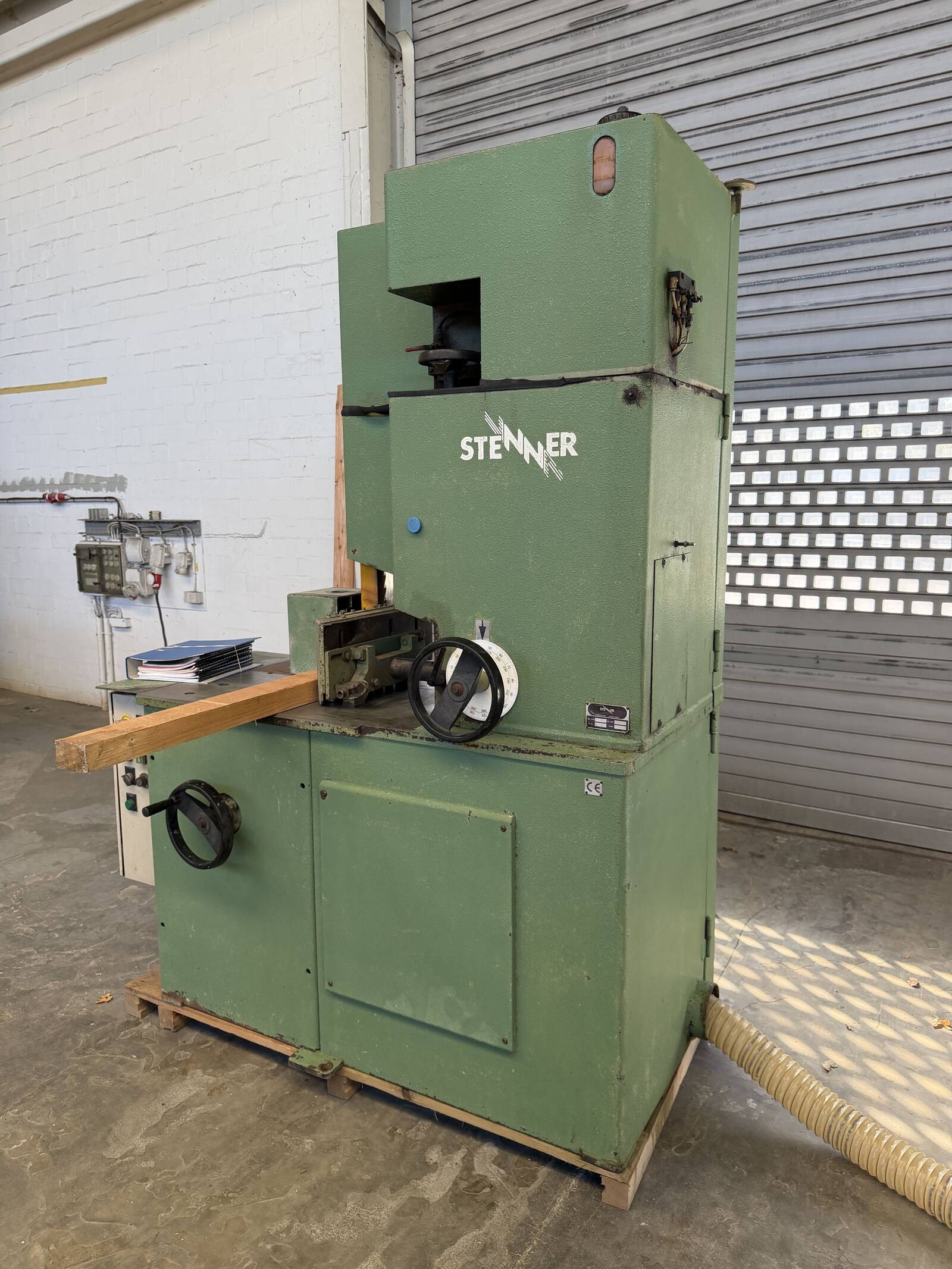

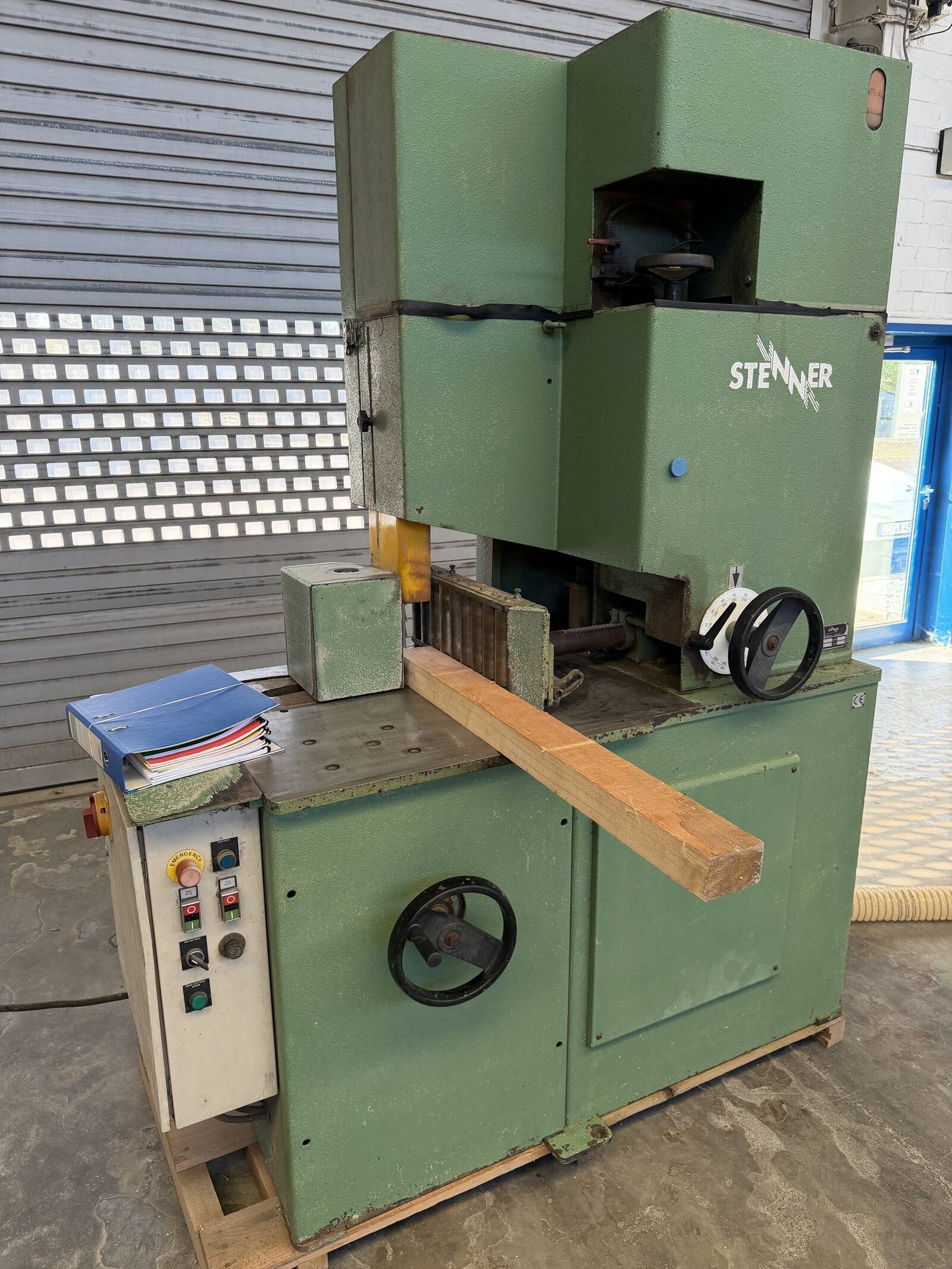

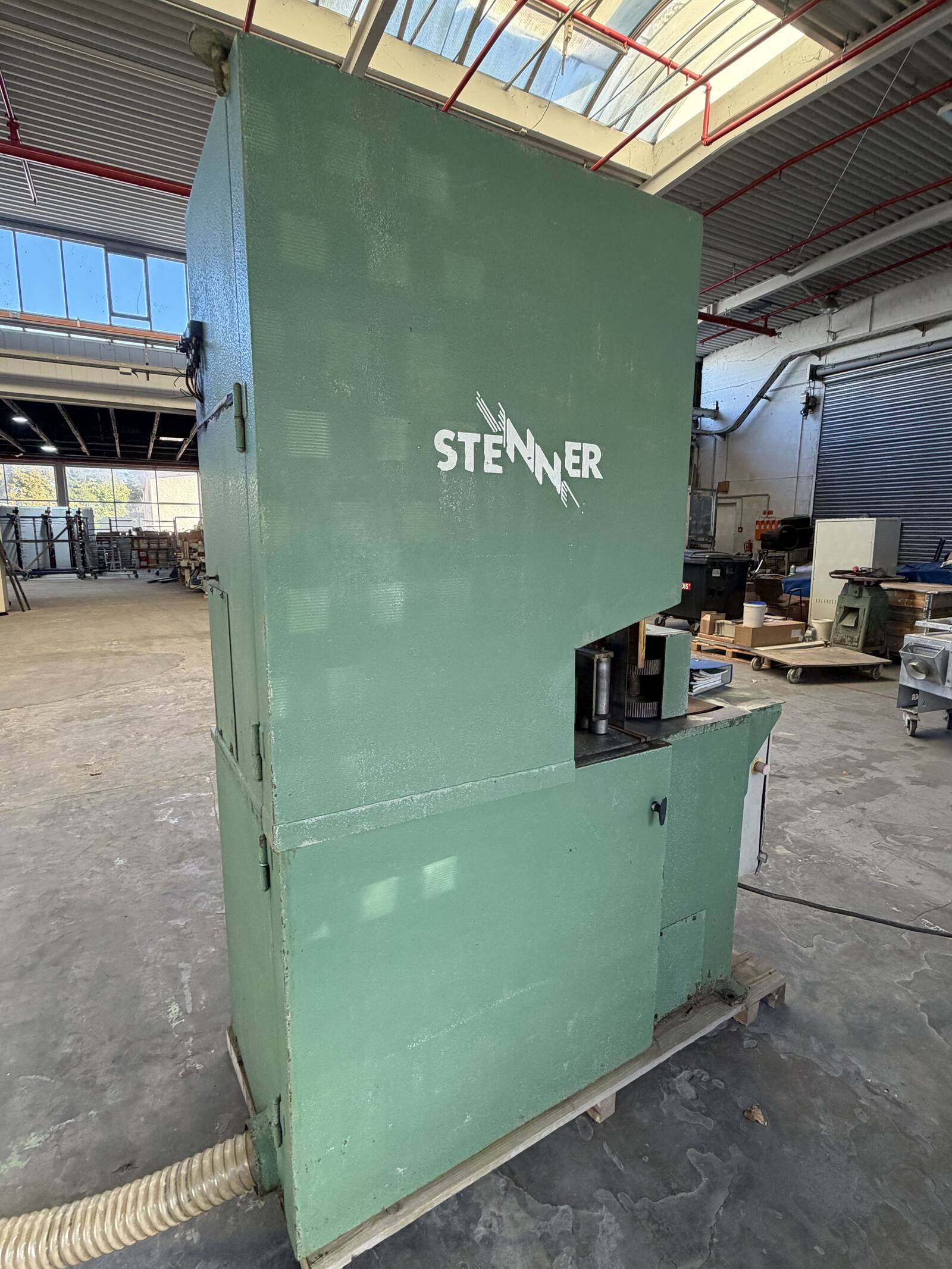

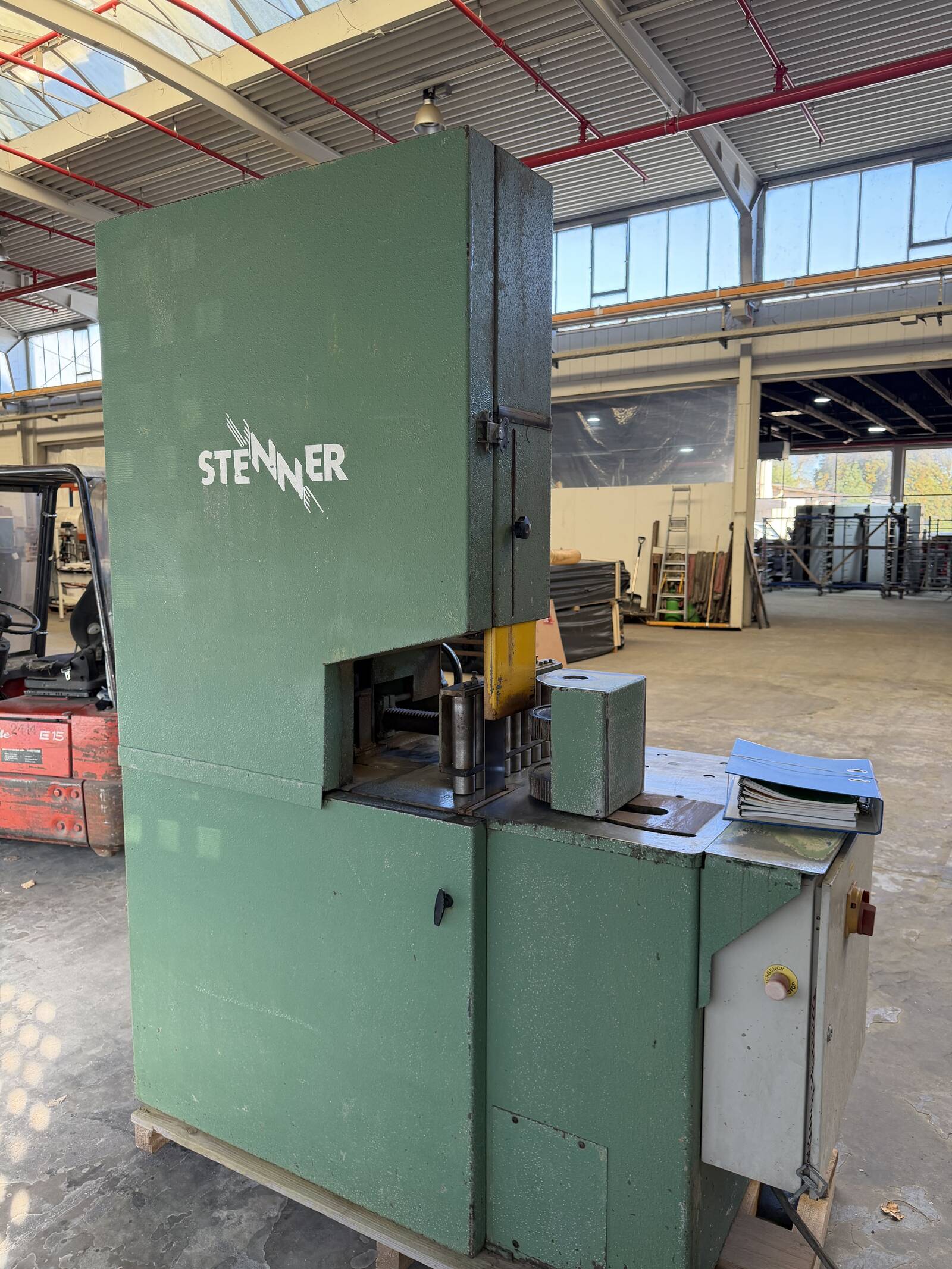

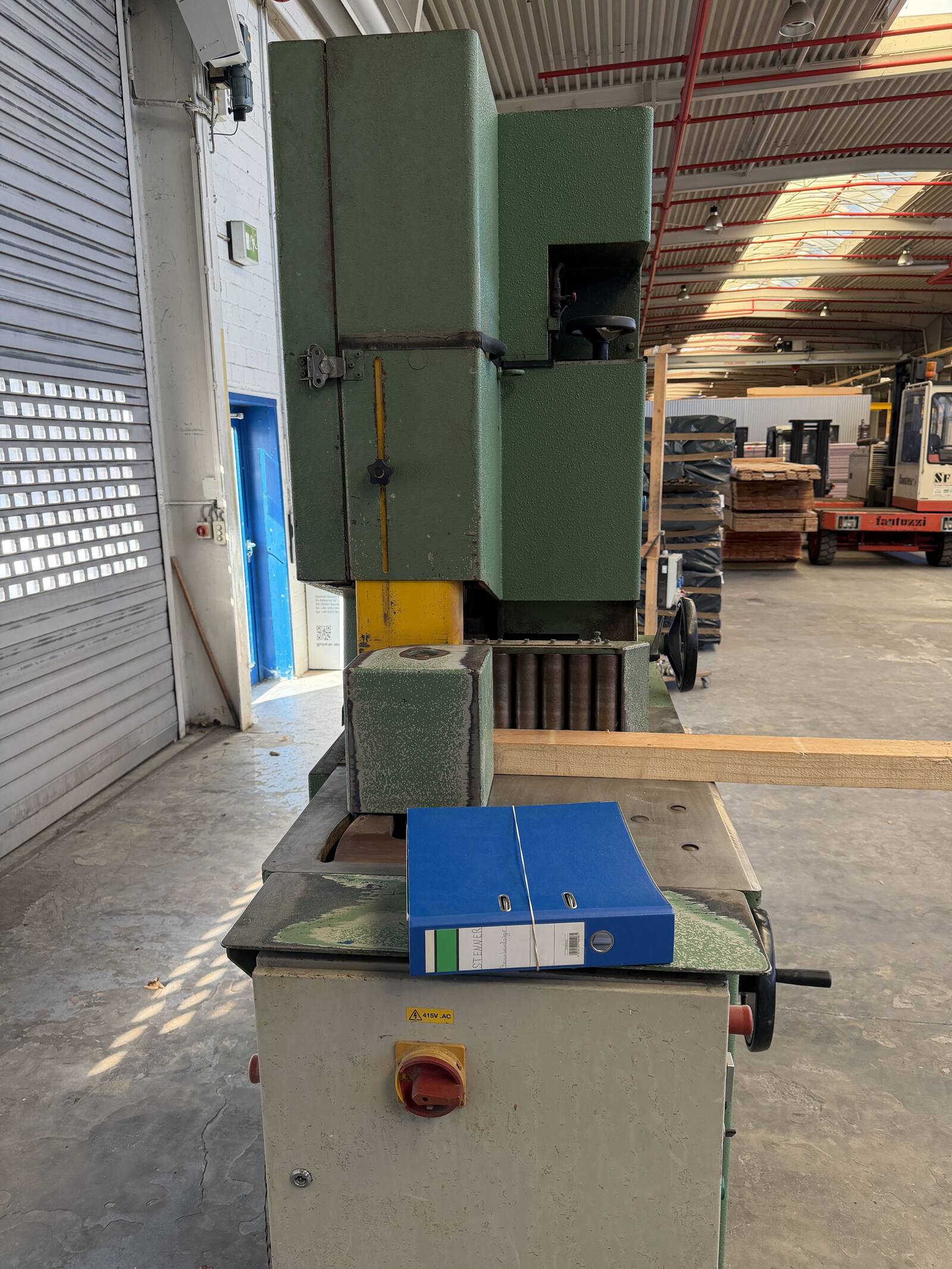

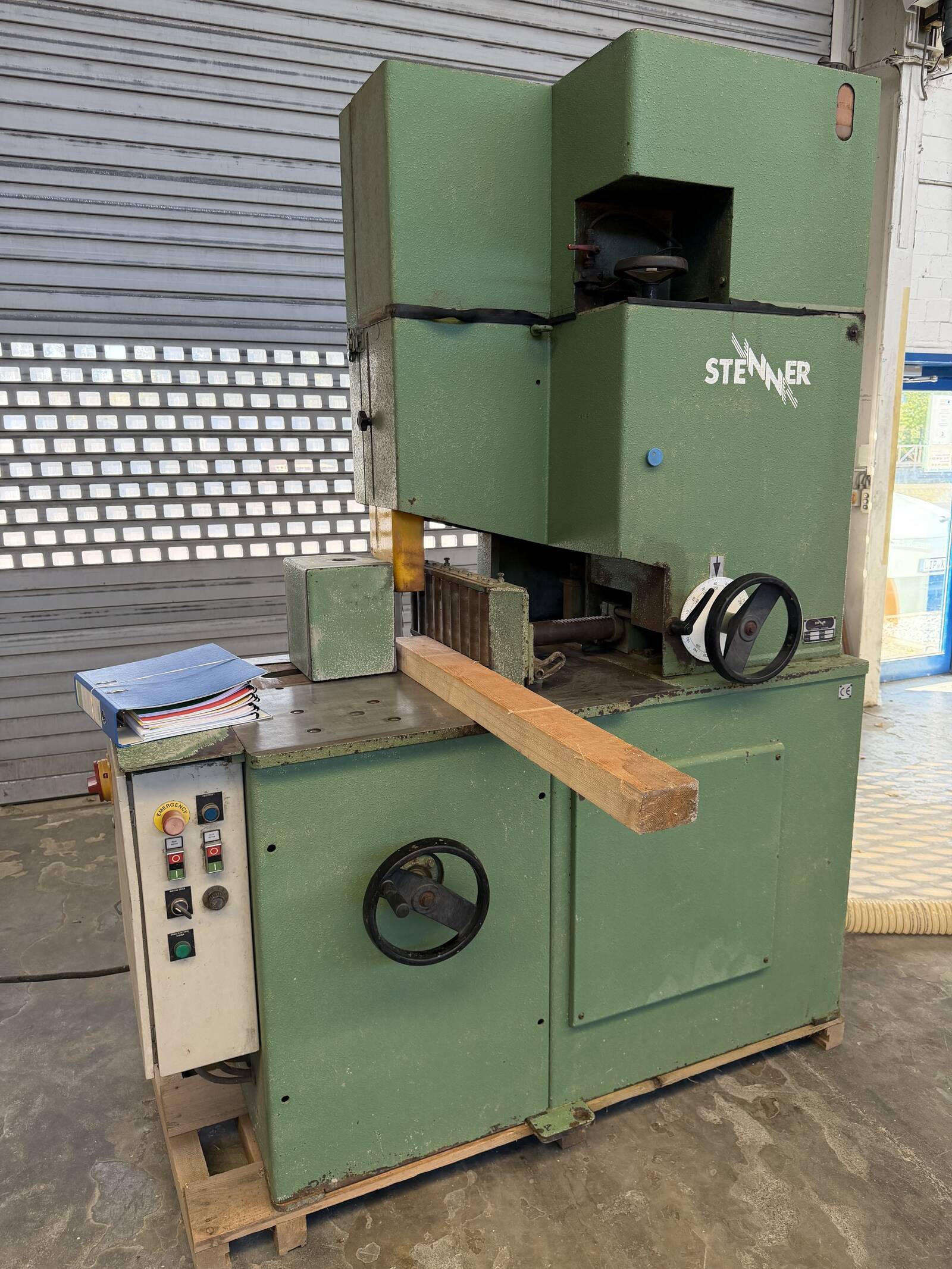

Vertical Band Saw / Cutting Band Saw
Manufacturer: Stenner
Model ST9

Heavy-duty vertical band saw for cutting and trimming
squared lumber, planks, and boards

Typical applications: sawmills, lumber yards, carpentry shops,
pallet manufacturing, planing mills

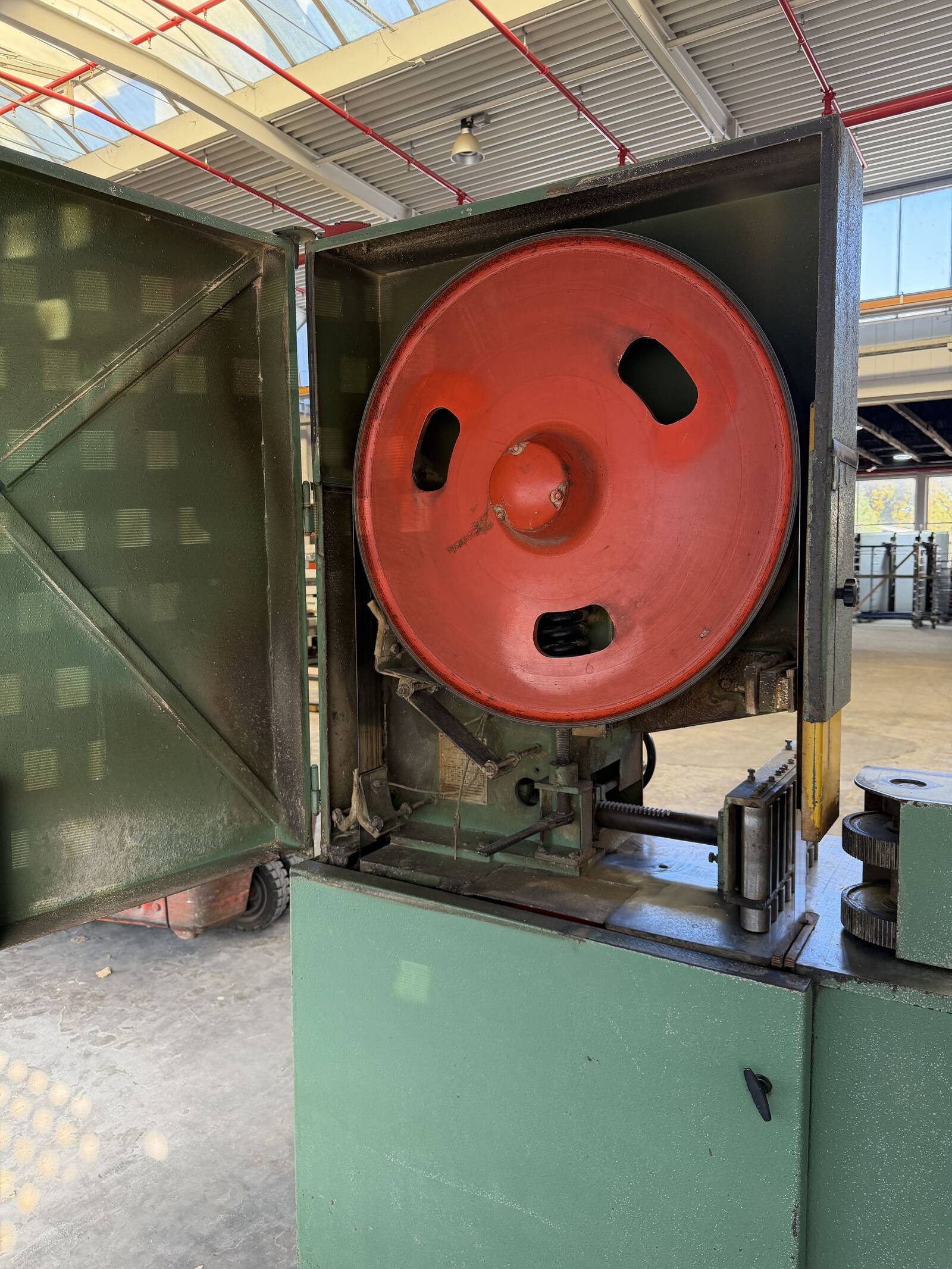

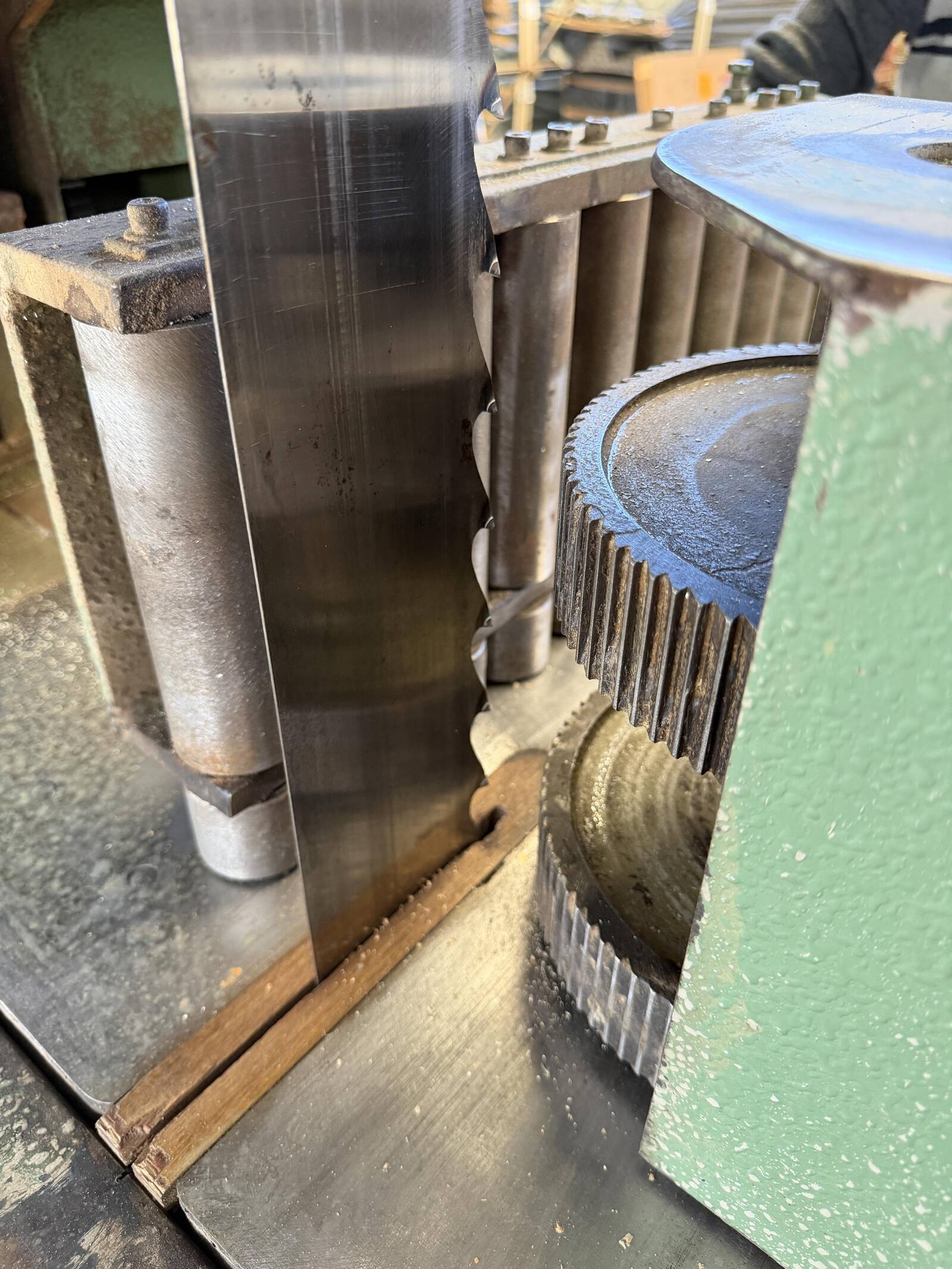

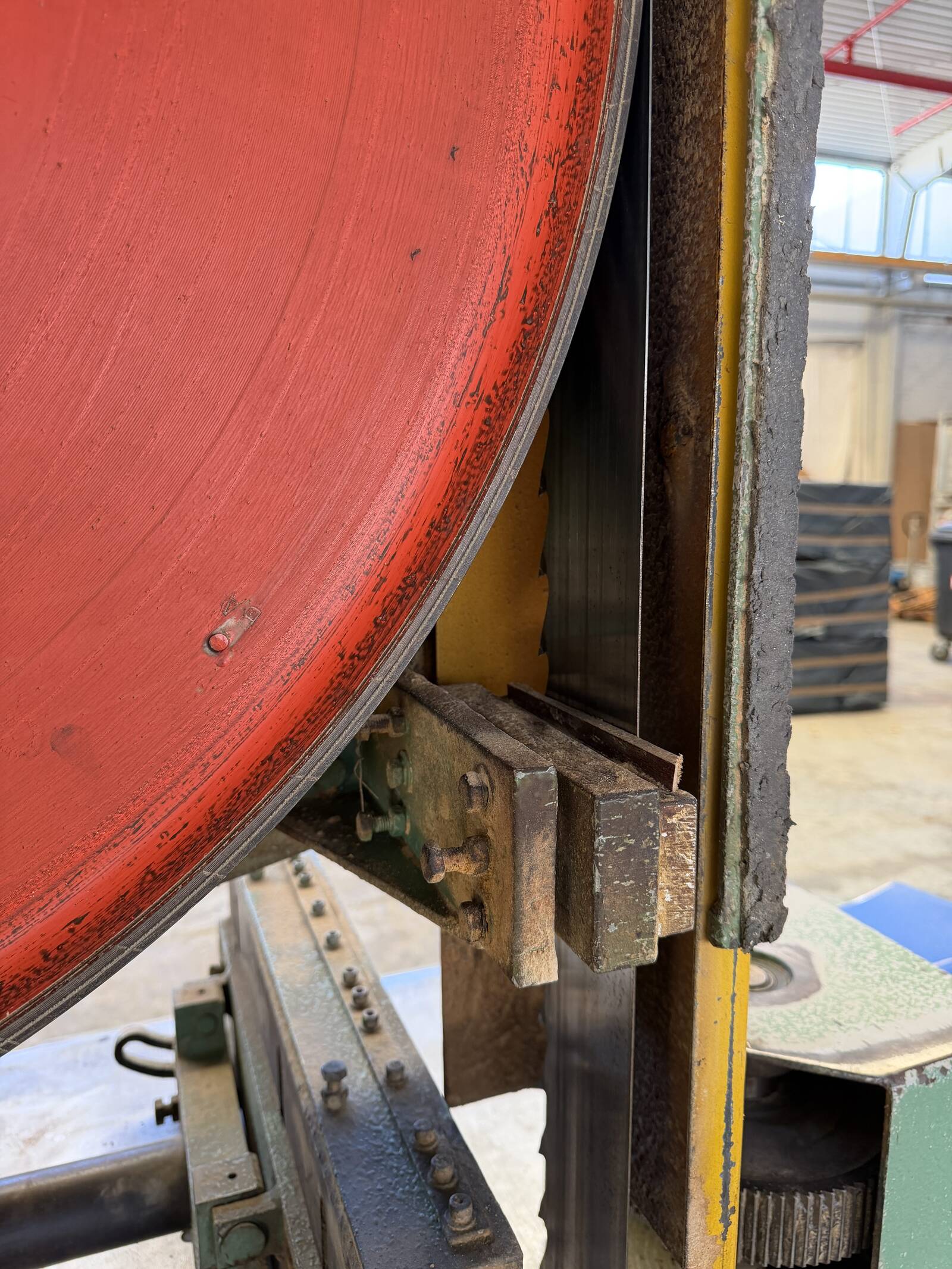

Saw blade and rollers:

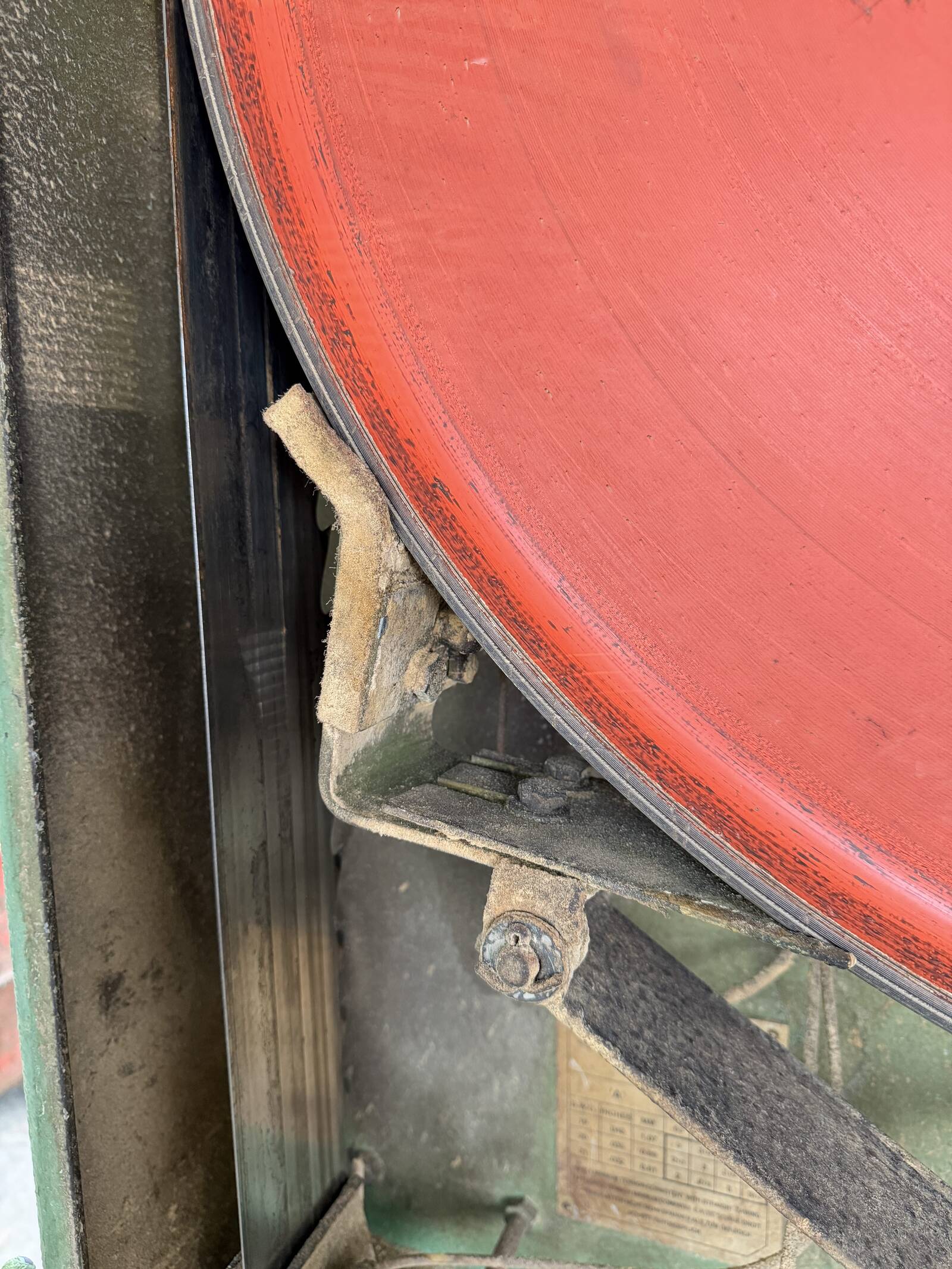

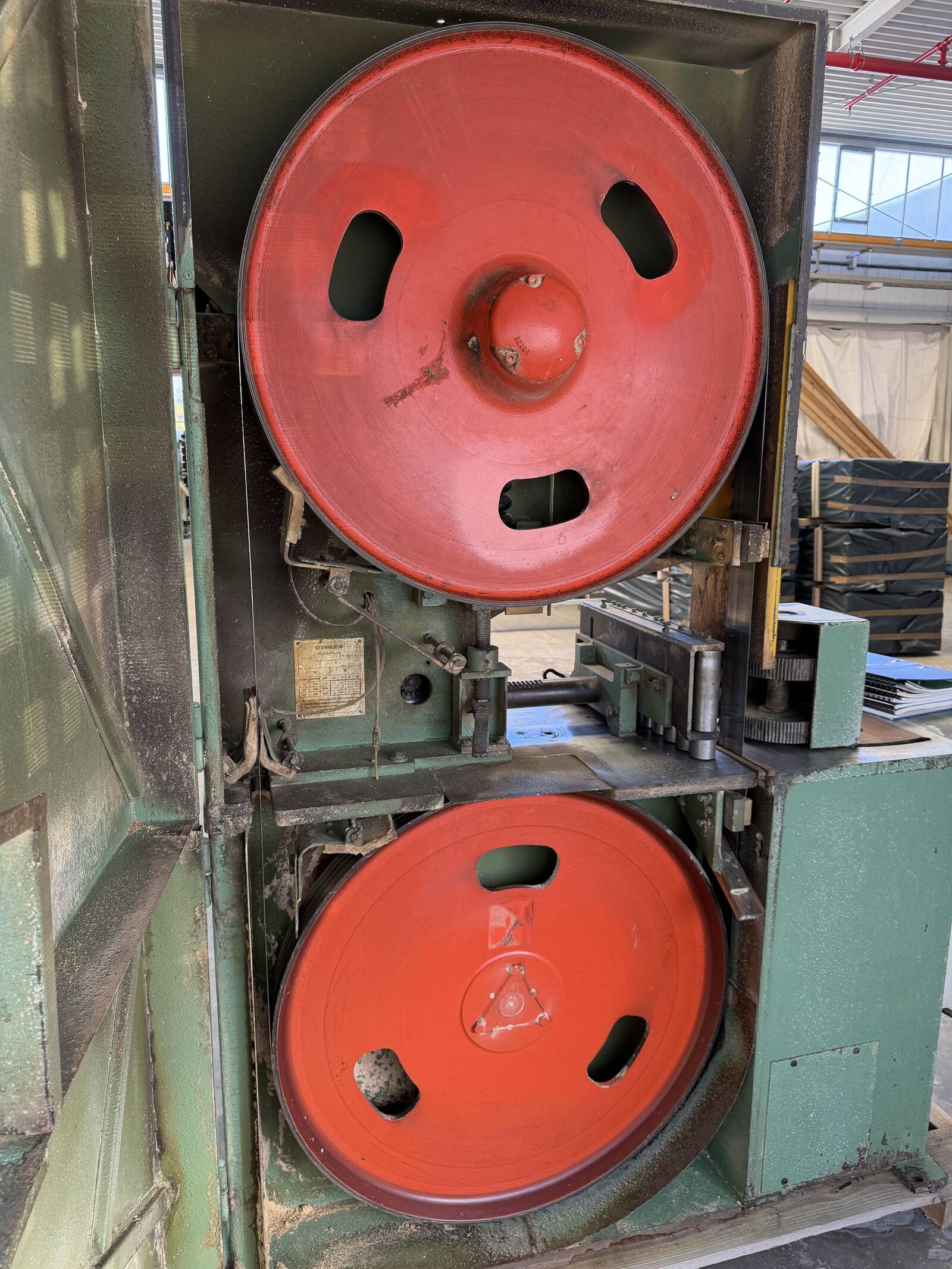

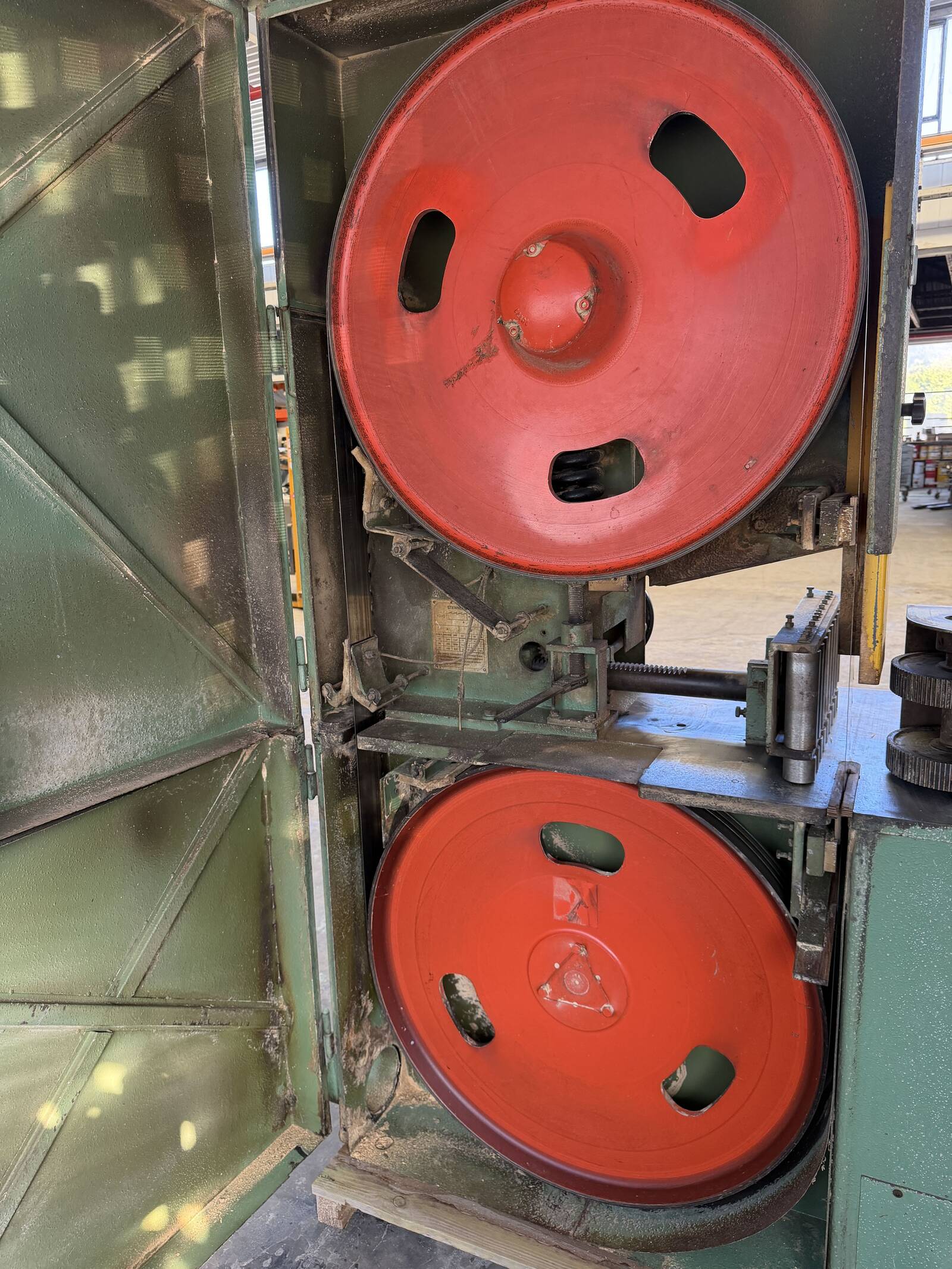

Diameter of saw blade rollers: 915 mm

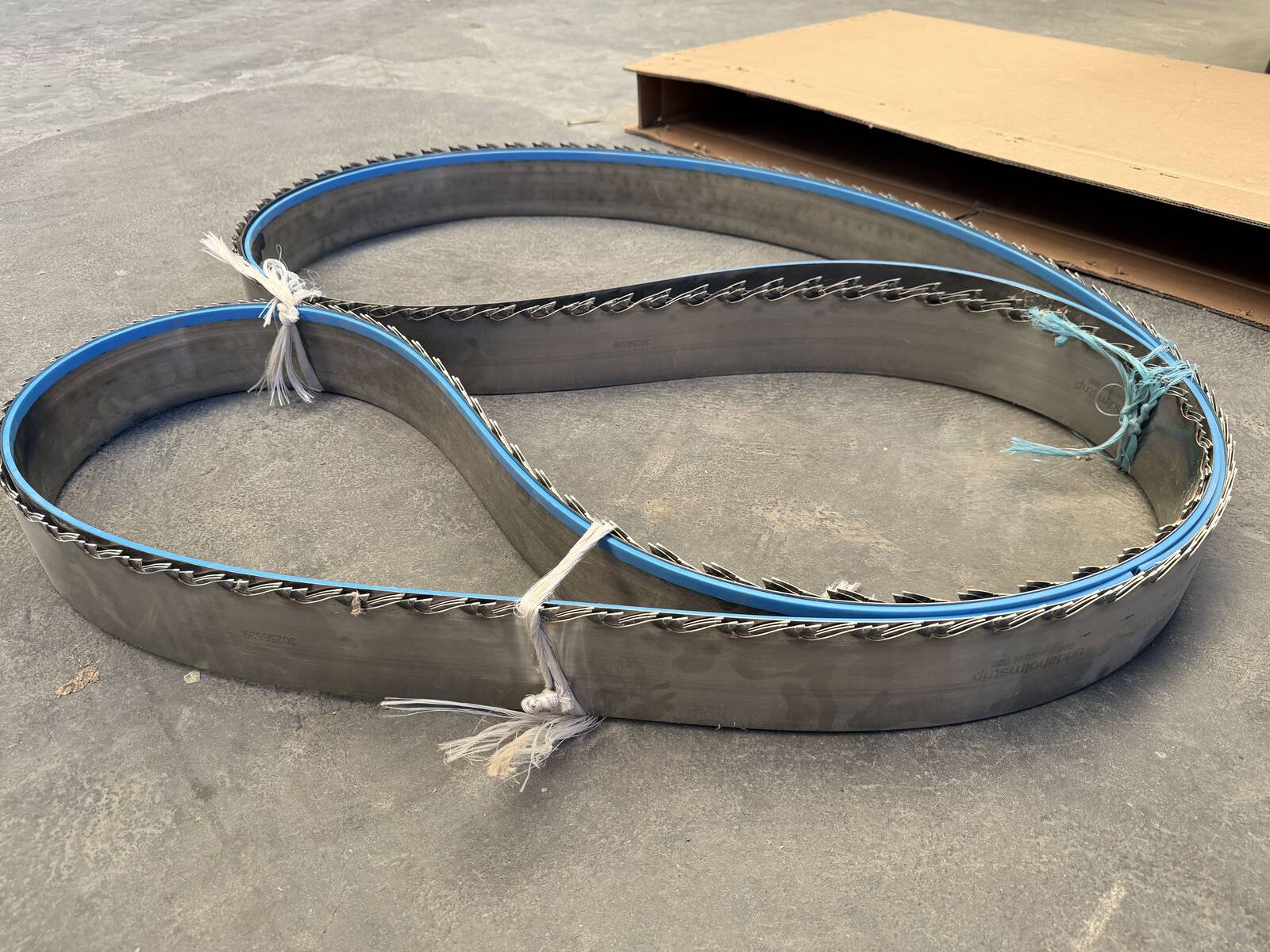

Saw blade width: 100 mm
Saw blade length (min.): 5280 mm
Saw blade length (max.): 5380 mm

Cutting capacity:
Max. wood width: 370 mm
Max. cutting width (standard): 230 mm
Max. distance from saw line to stop: 305 mm

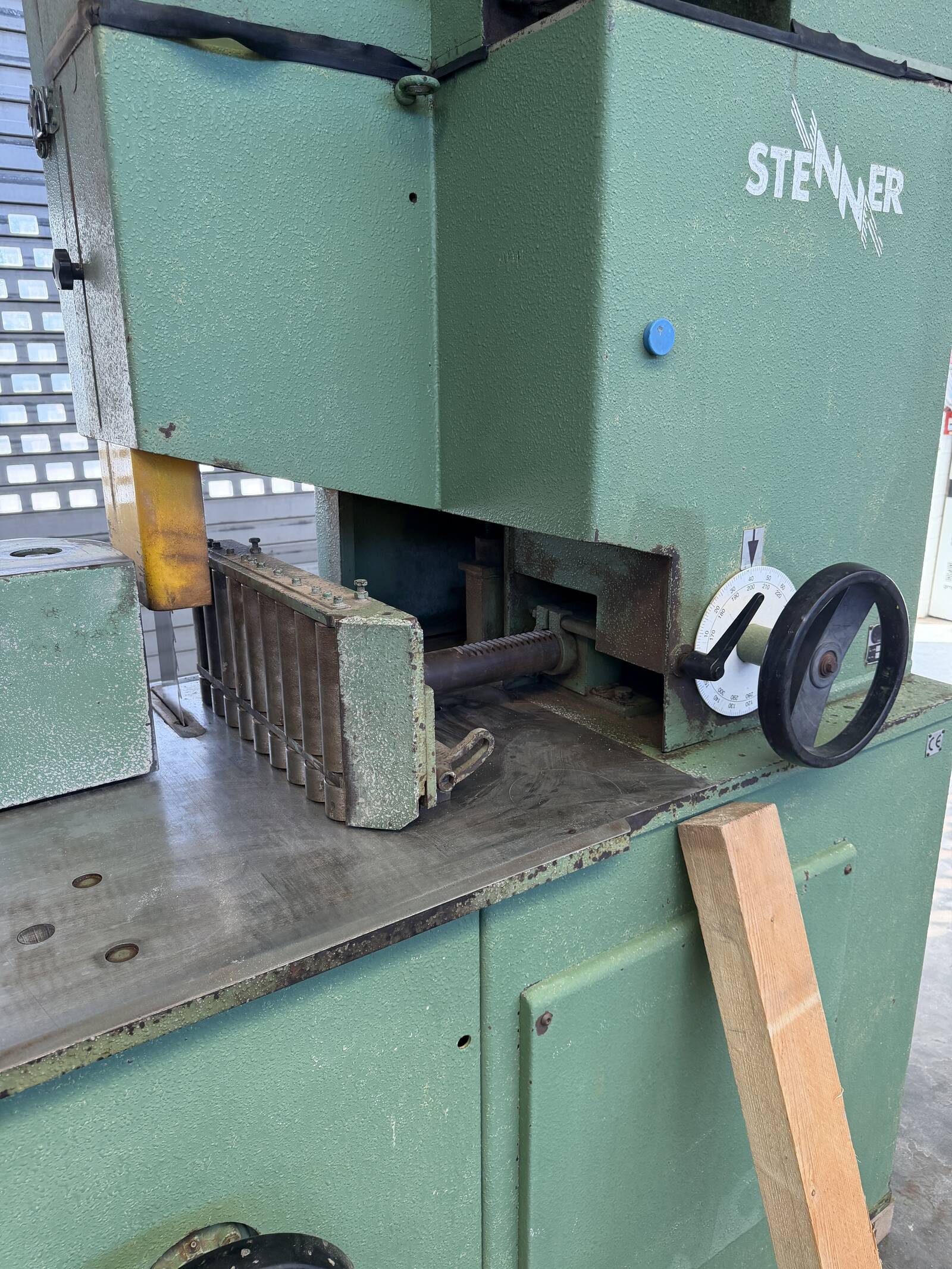

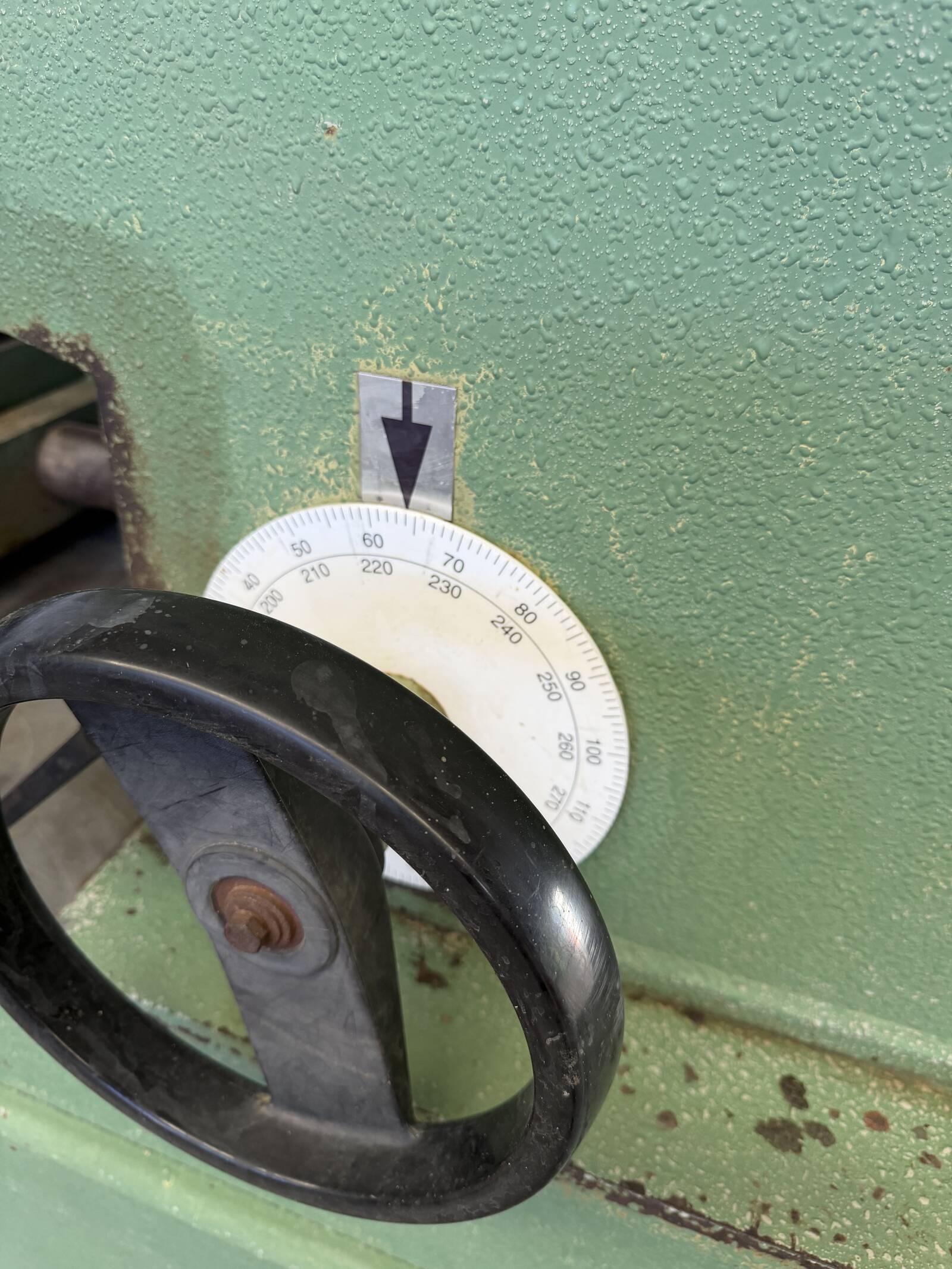

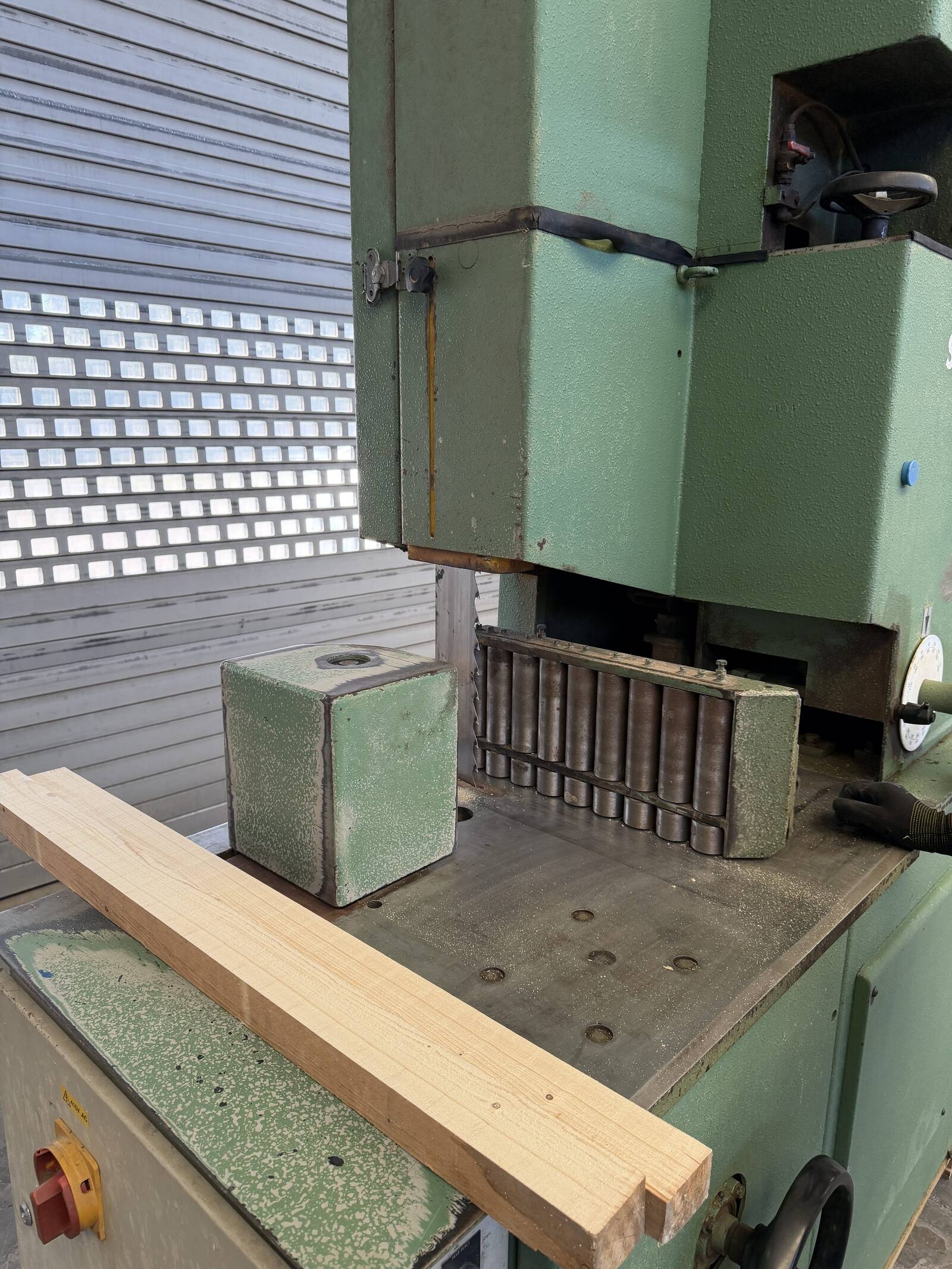

Stop swivels 0–35°

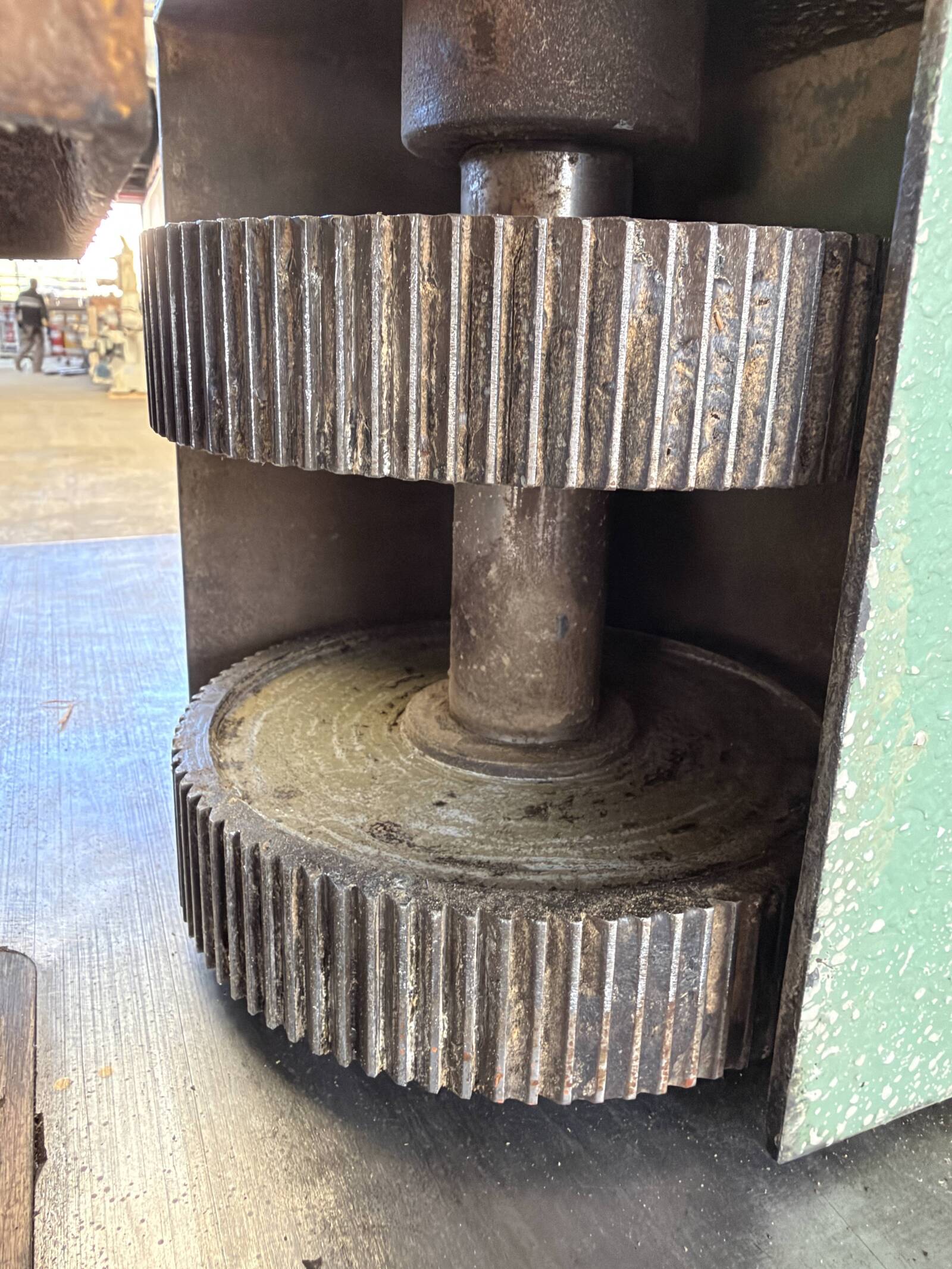

Drive and Feed:
Motor: 15 kW (optional)
Variable feed: 7.5–30 m/min

Dust Extraction:
Dust extraction port diameter: 150 mm
Extraction volume: 1,455 m³/h

Dimensions and Weight:
Working height: 955 mm

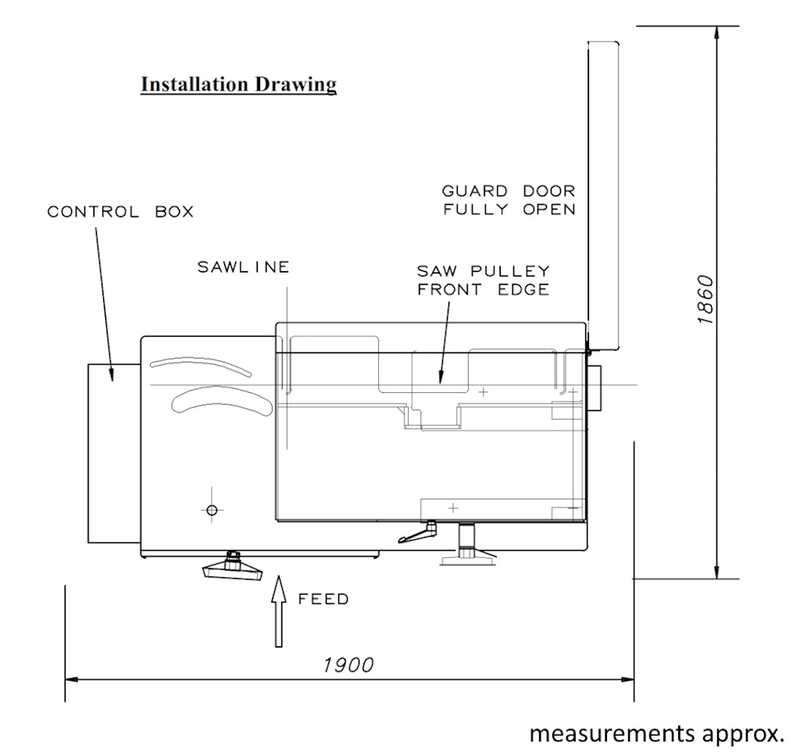

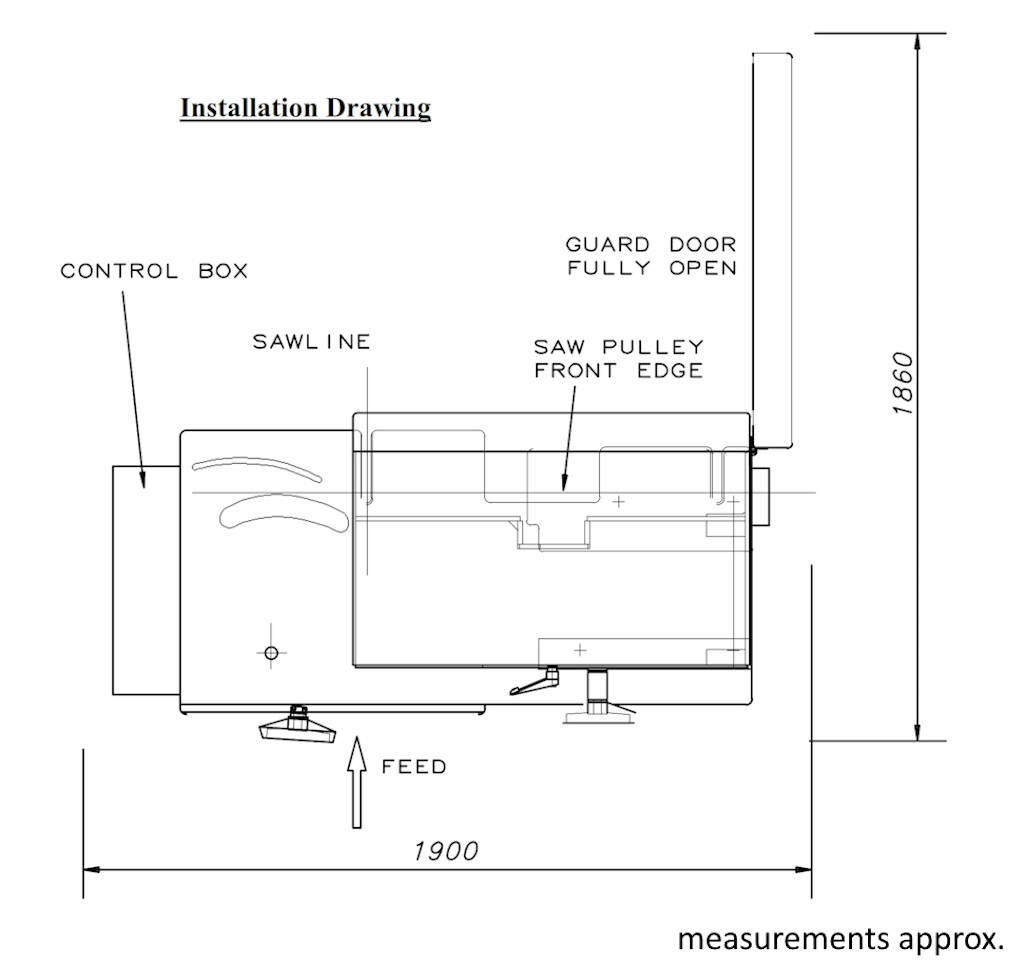

Dimensions: approx. 1,500 x 900 x 2,300 mm (L x W x H)
Machine weight: approx. 1,500 kg

Basic Concept:
- Vertical band saw for cutting and trimming solid wood
- Swiveling stop, 0–35°, for bevel and miter cuts
- Feed rate variably adjustable from 7.5 to 30 m/min
- Saw blade rollers: 915 mm; saw blade width up to 100 mm
- Wood type: Softwood / Hardwood
