Löser Dowel cutting and chamfering machine - second-hand

Description

Dowel cutting and chamfering machine

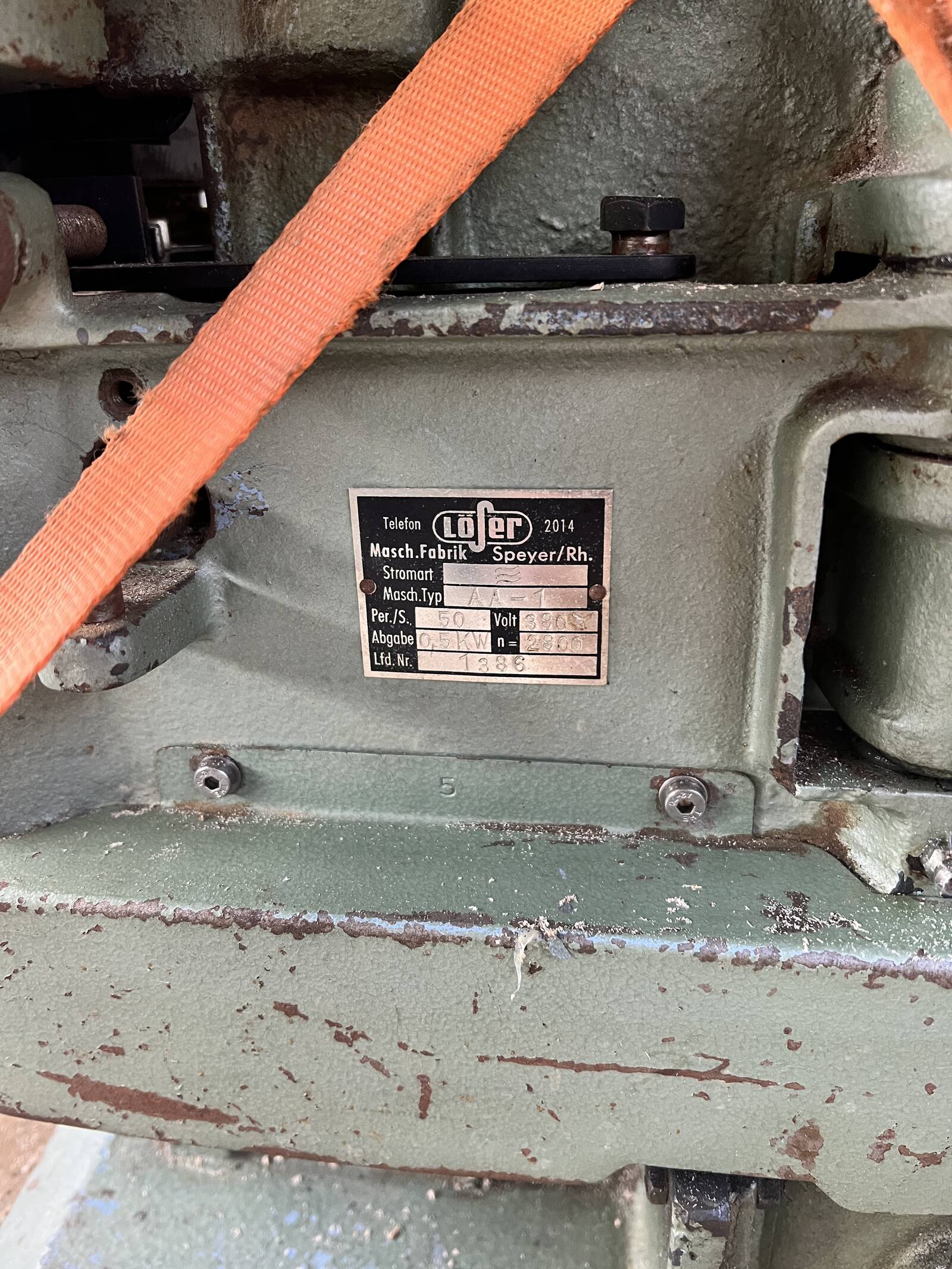

make Löser
type AA 200

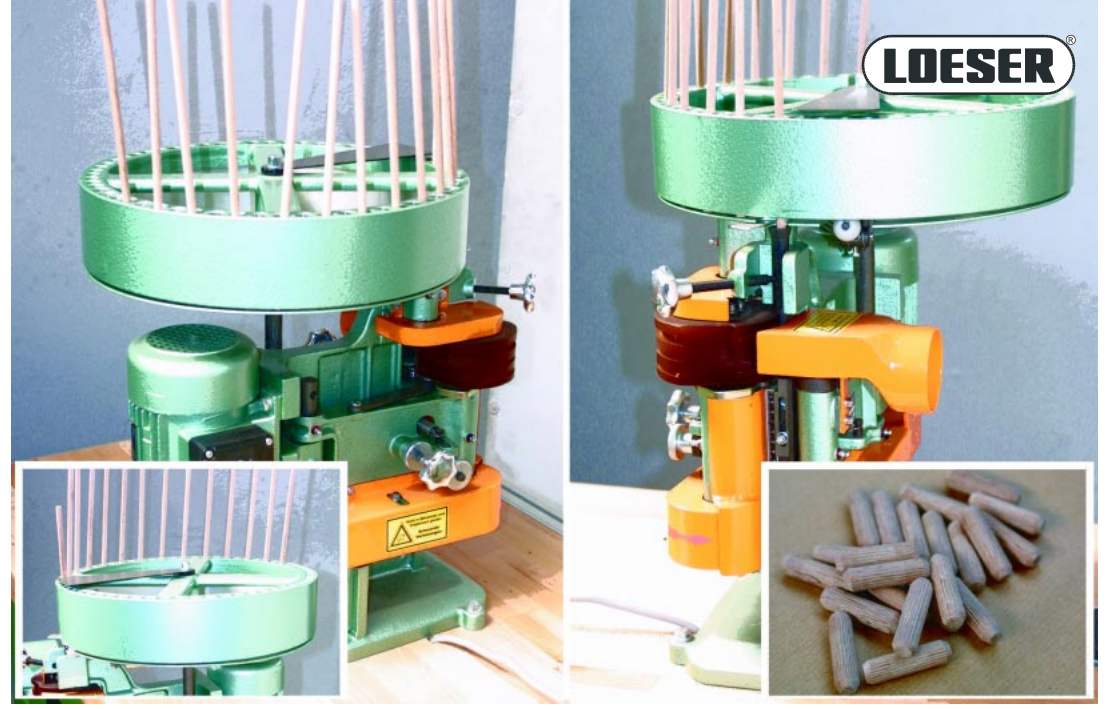

Table machine for the production of wooden dowels, for efficient cutting to length and chamfering of dowel rods / round bars

The dowel cutting and chamfering machine type AA 200 is a small to medium capacity machine. Round bars made of wood, plastic, hard paper and other materials can be cut to length and chamfered. The dowel length can be adjusted between 20 and 150 mm and is determined by means of a setting scale. The chamfer thickness can be set as required.

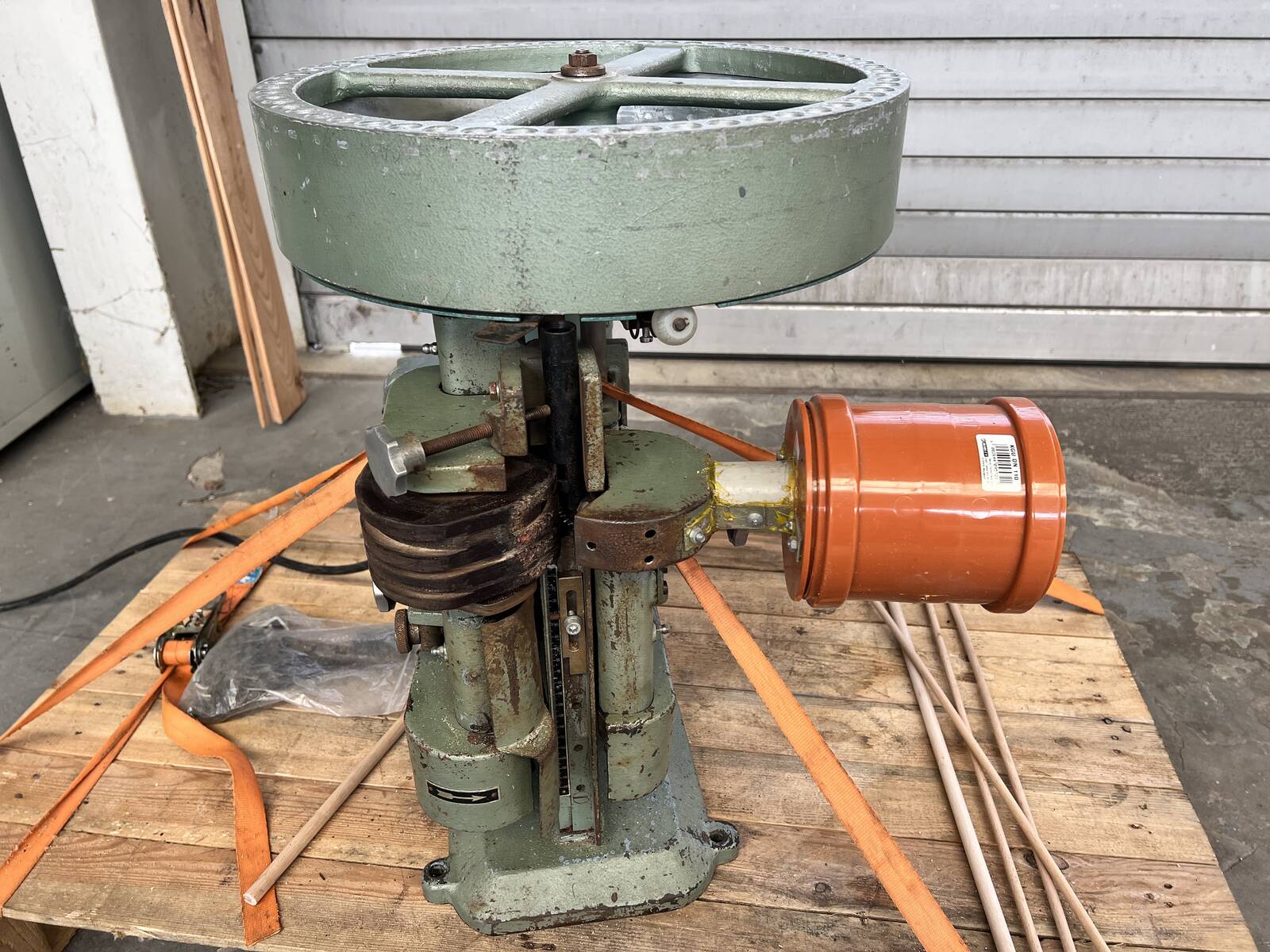

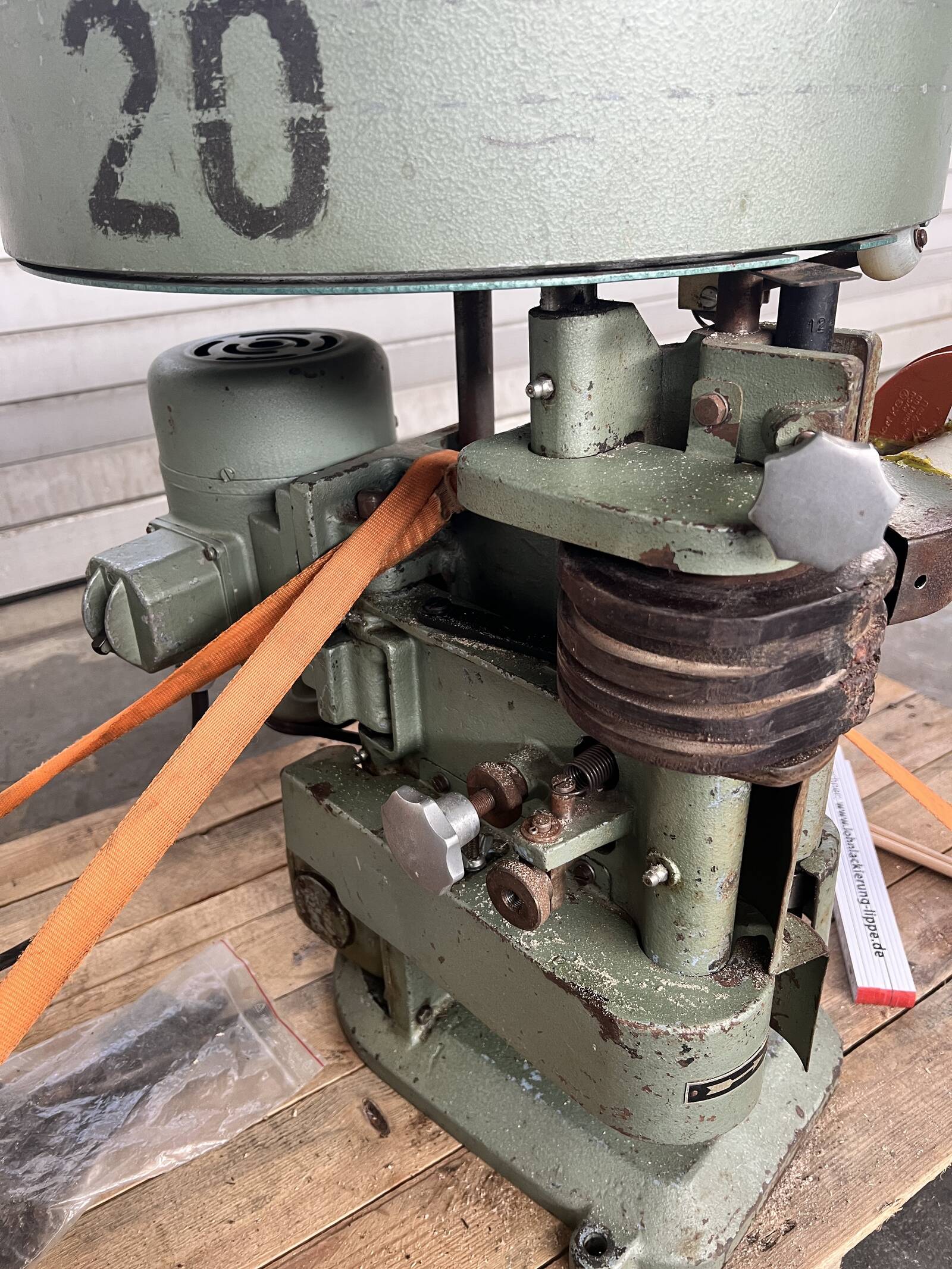

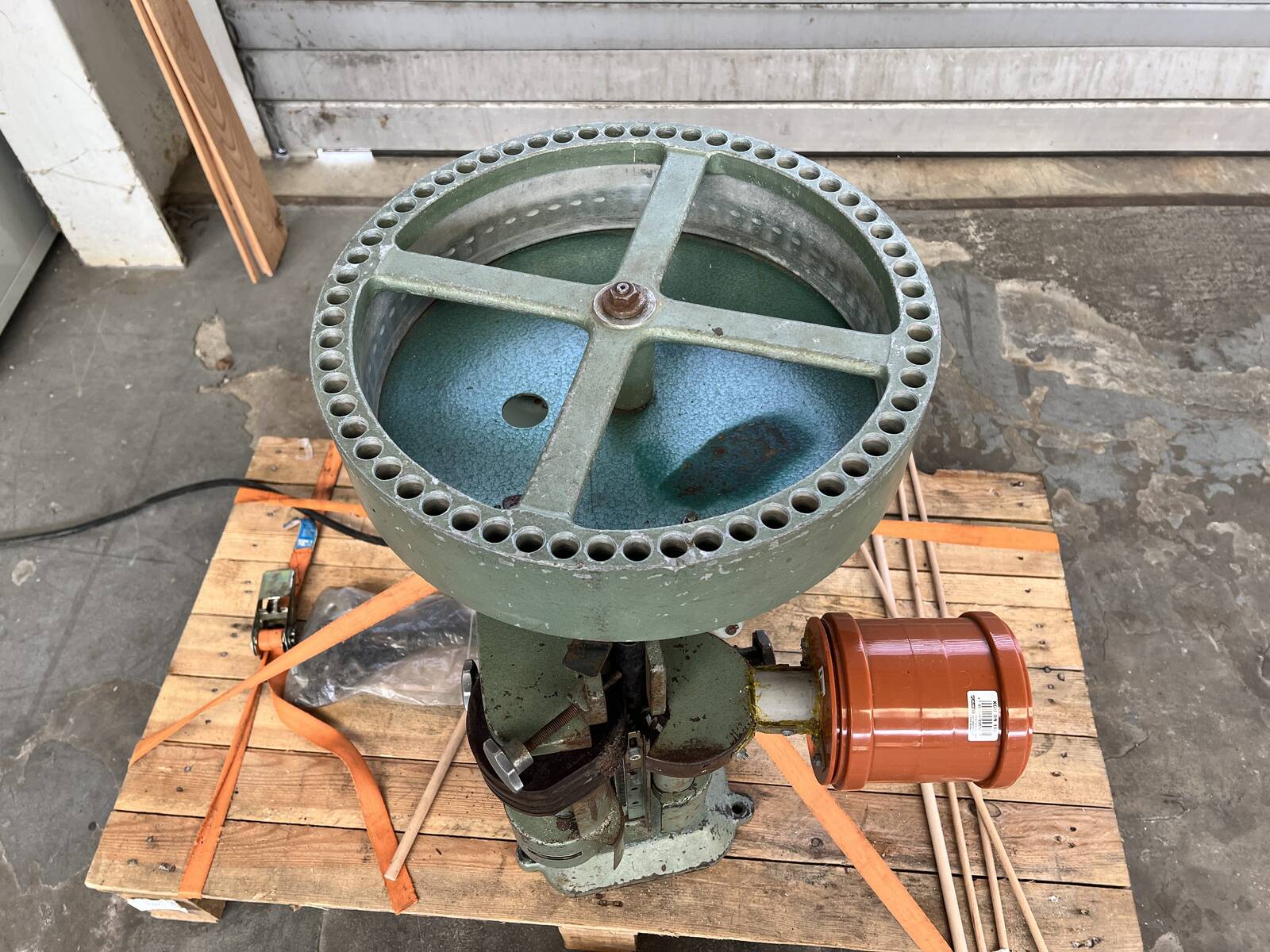

The machine is equipped with a magazine ring as standard. This makes it possible for the operator to operate several machines at the same time or carry out other work. The machine has a solid, torsion-free cast iron stand. Extremely easy operation, simple maintenance and easily accessible lubrication points are further advantages of this machine.

Technical data:
for dowel diameters approx. 6-13 mm
smallest cutting length 15 mm
largest cutting length 150 mm
Output approx. 2000 pieces per hour
Weight 53 kg (table machine)

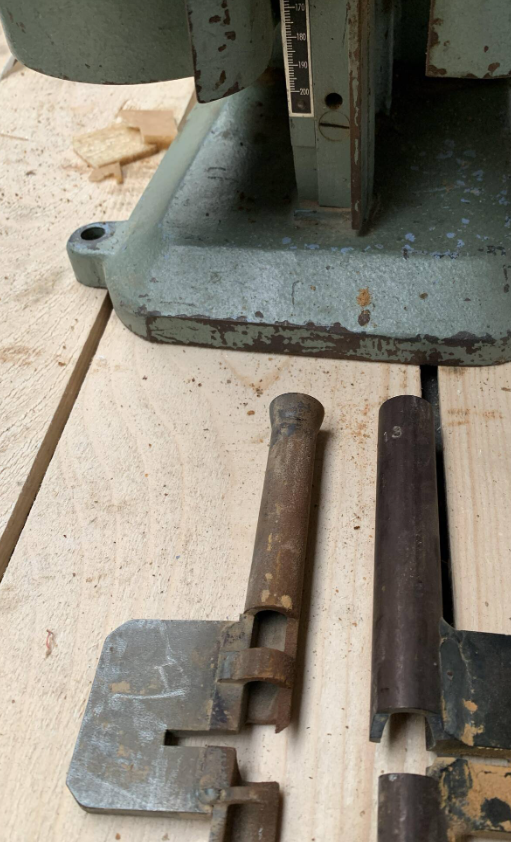

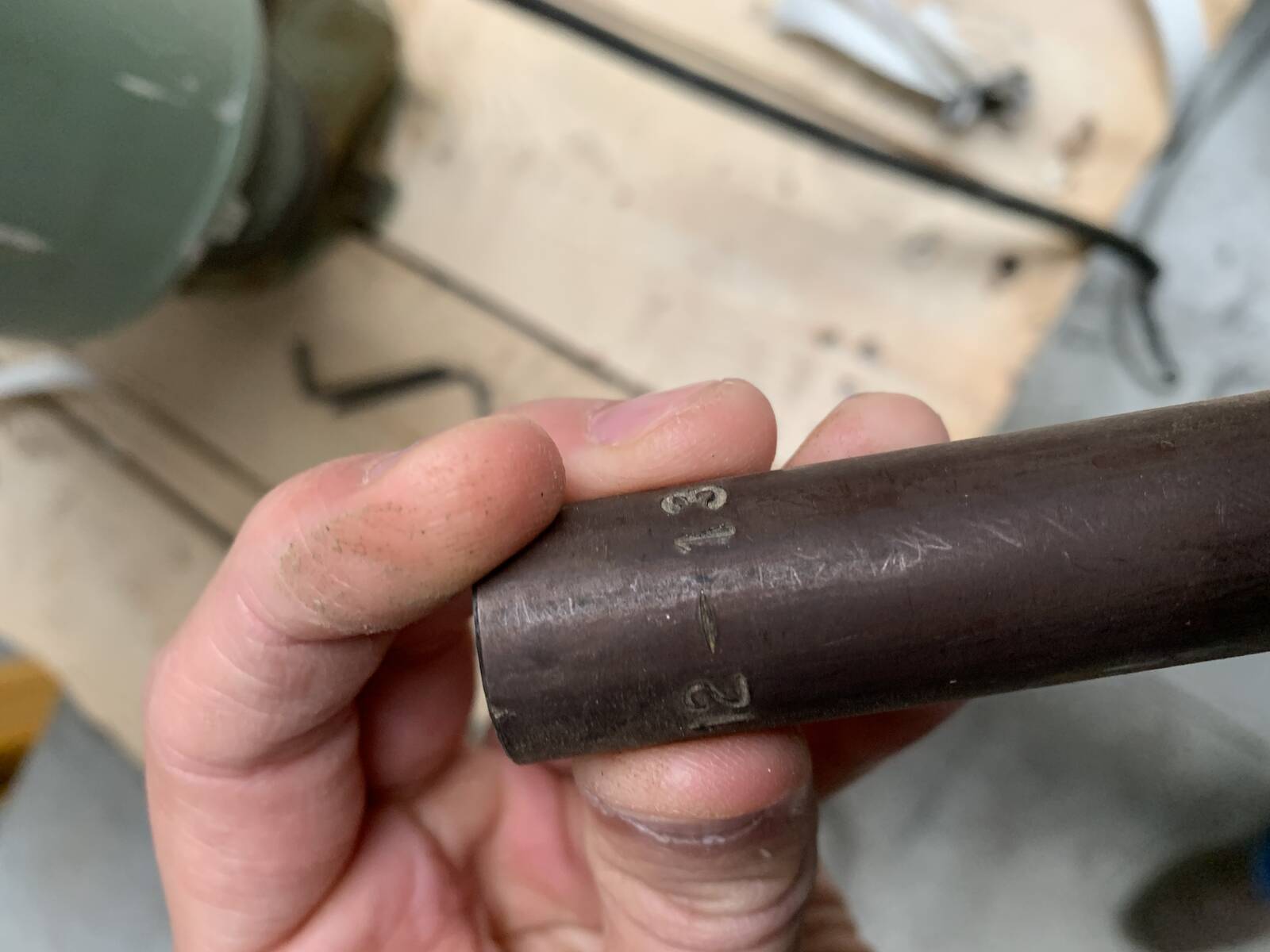

incl. adapter for dowel diameters 8-9 mm, 10-11 mm and 12-13 mm.

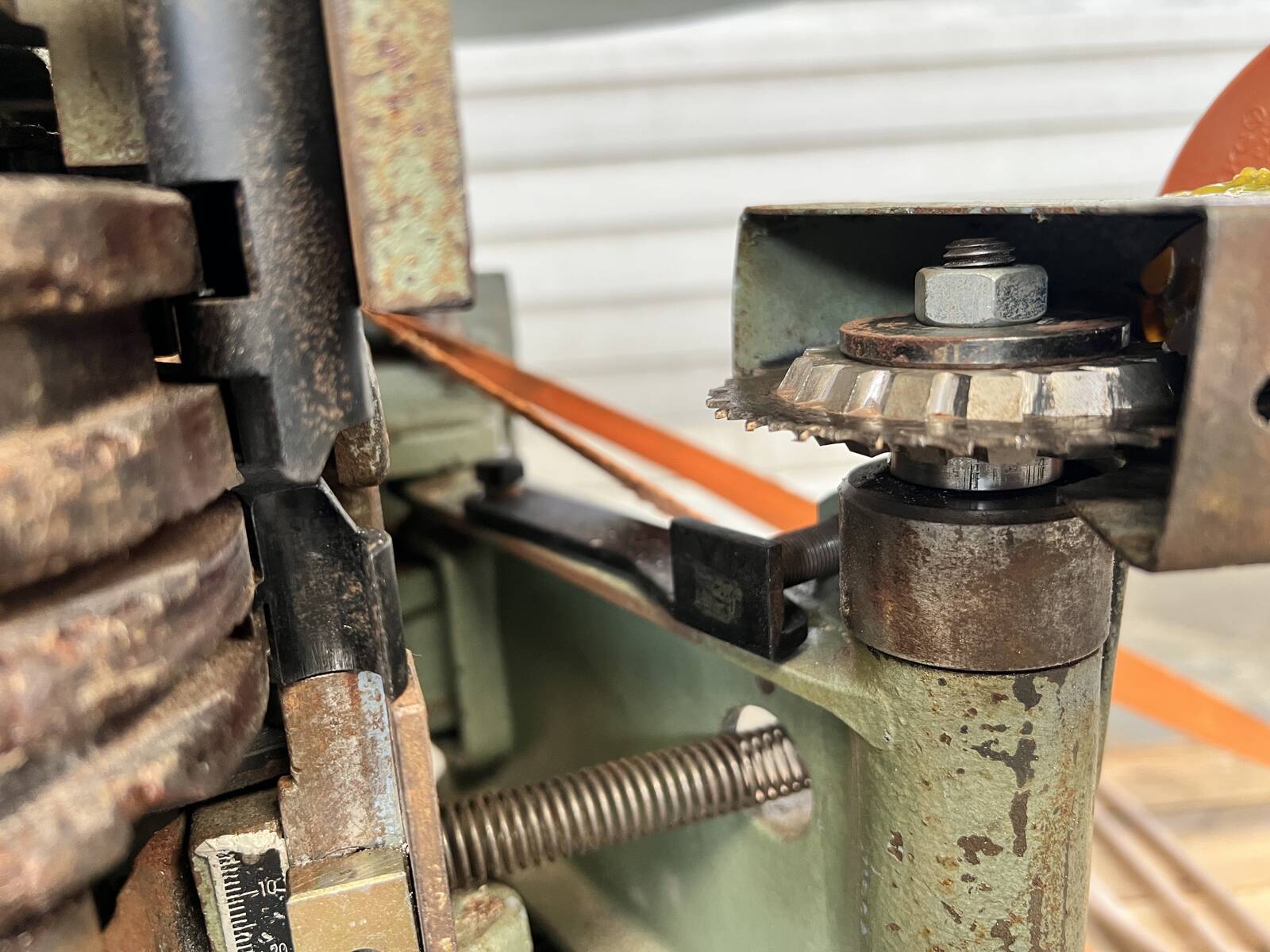

Sprocket and chain were replaced by the previous owner.

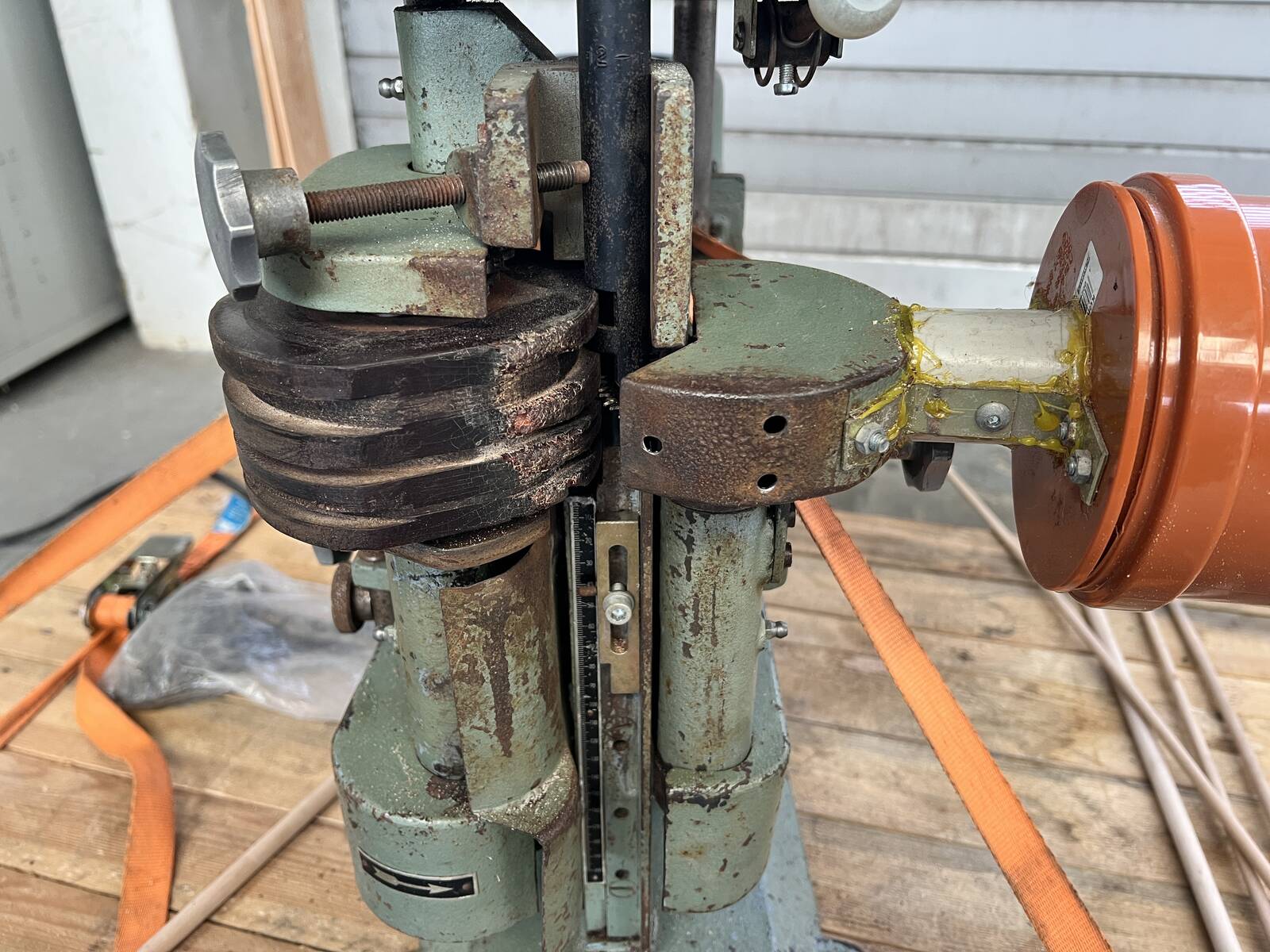

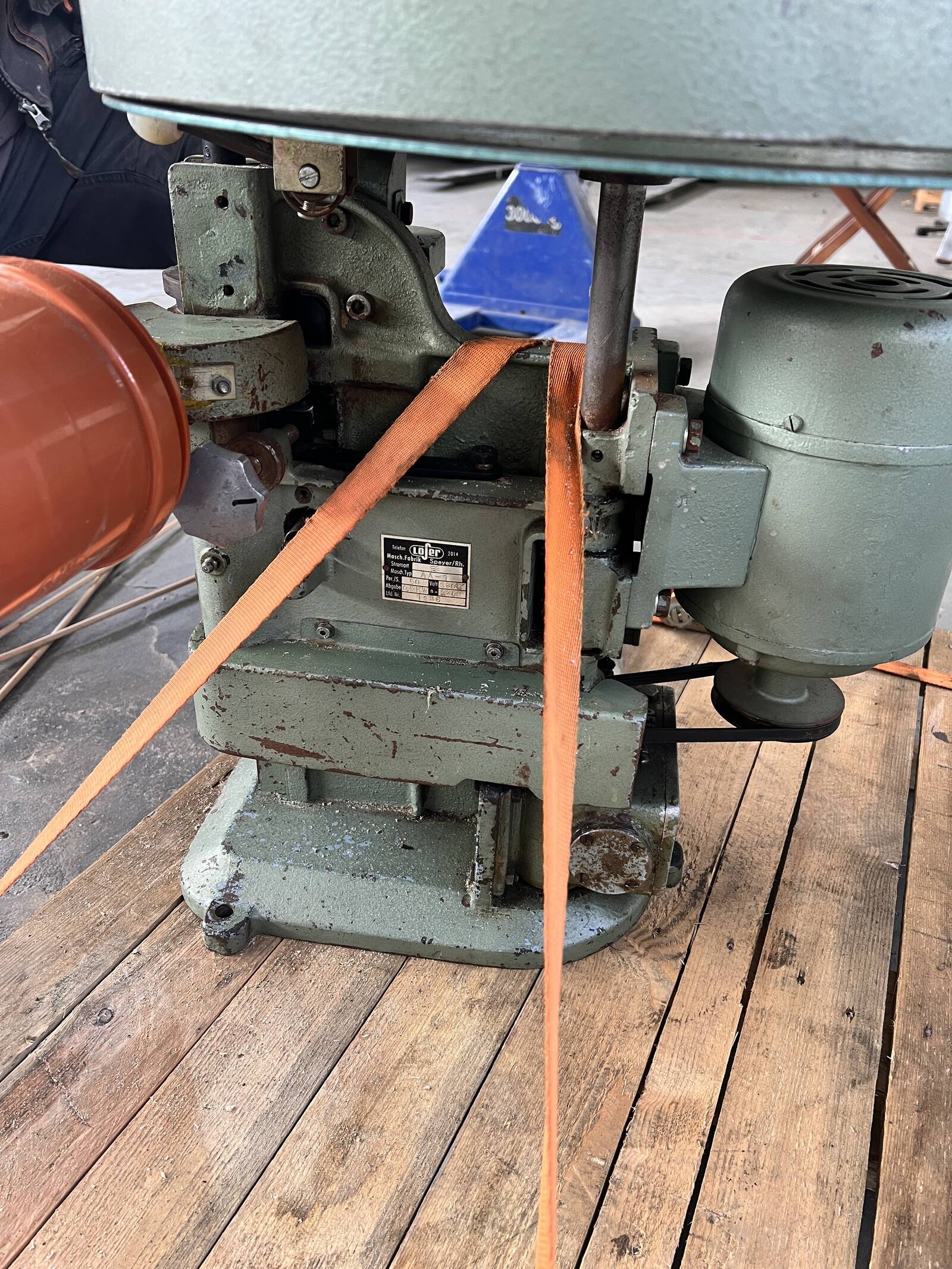

Note: Motor runs and cutting to length works perfectly. Chamfering does not work properly - the pressure wheel/copy wheel should be replaced.
