Weinig Universal workpiece return system - second-hand

Description

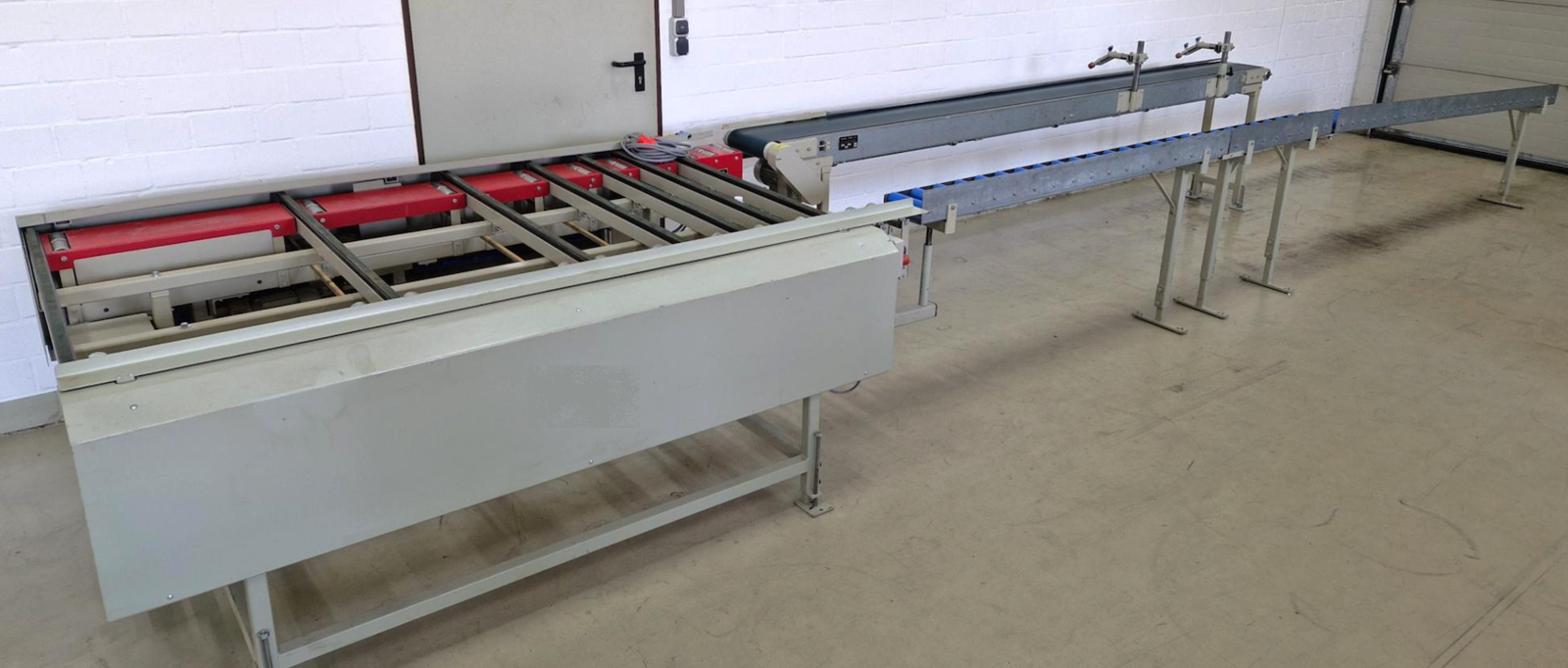

Universal workpiece return system
make Weinig

Suitable for automatic workpiece return of strips and profiled wood, e.g. behind planing machines, sanding machines, etc., for one-man operation.

Consisting of:
Infeed conveyor belt

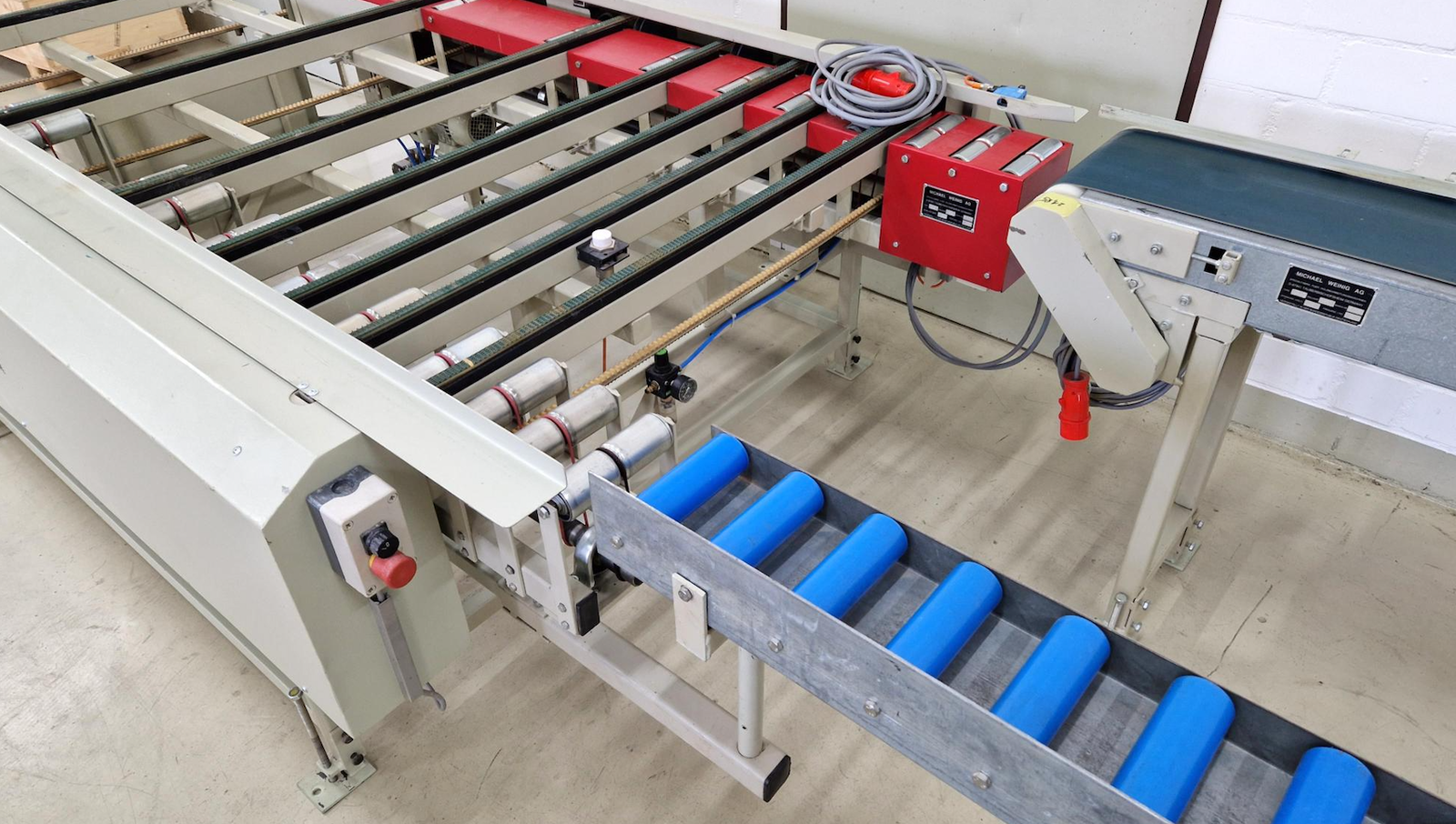

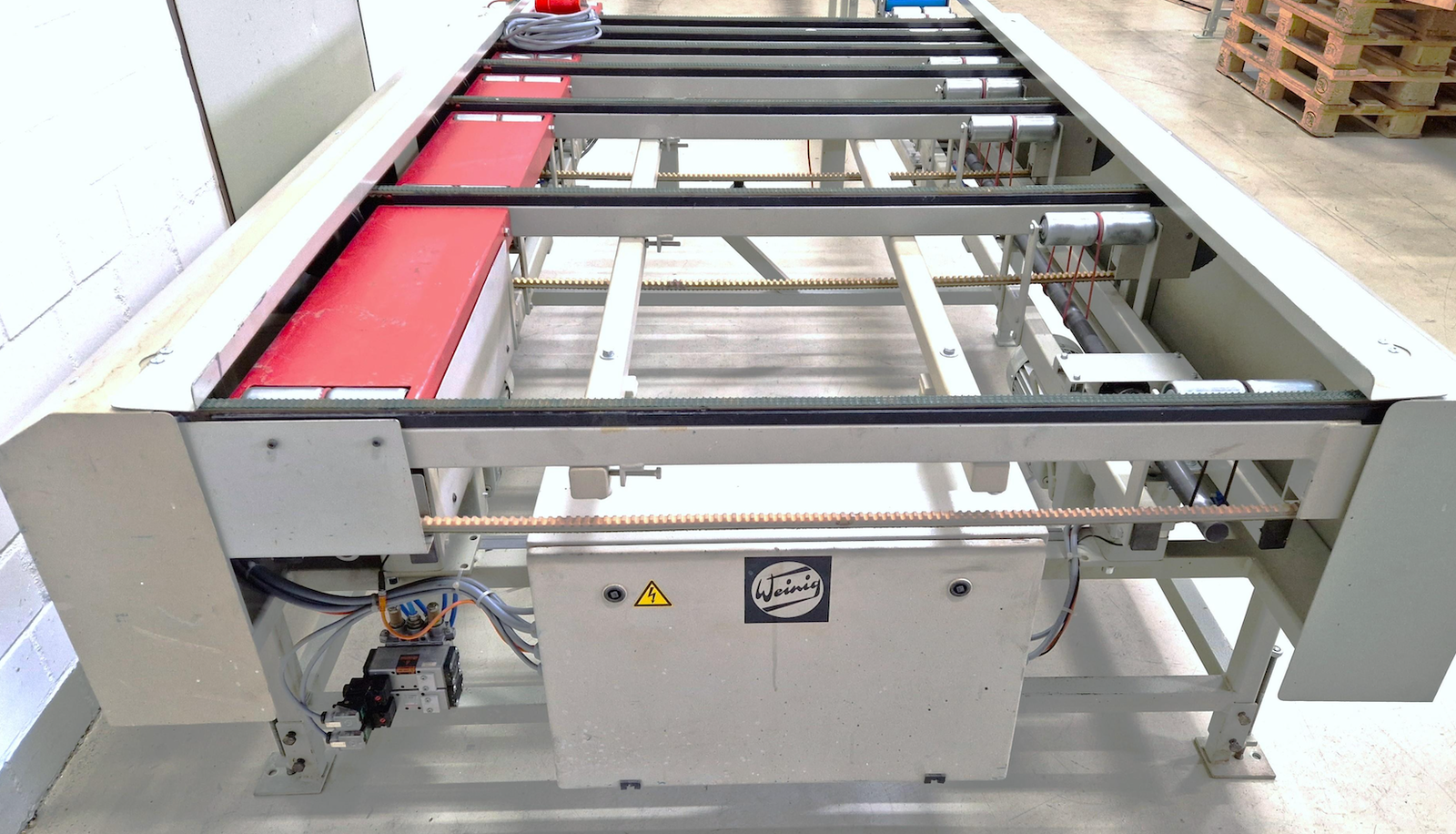

Cross transfer system with driven roller conveyors and cross belt conveyor
Return roller conveyor to the operator, length 7,500 mm (not driven)

Workpiece dimensions Length approx. 300–3,500 mm
Workpiece dimensions Width approx. 30–230 mm
Workpiece dimensions Thickness min. approx. 20 mm

Conveyor path / cross buffer approx. 1,100 mm
Driven inlet and outlet roller conveyor, pneumatically synchronized
Working height 800–960 mm

Drives:
Roller conveyor inlet: 0.18 kW, 30 m/min, constant
Cross transport motor 0.37 kW, 40 m/min, constant
Roller conveyor outlet: 0.18 kW, 60 m/min, constant

Cross transport dimensions approx. 2300 x 1600 mm
