Quickwood Brush Sanding Machine / Moulding Sanding Machine bottom/top - second-hand

Machine number 8108

Manufacturer

Quickwood

Model

QL 3

Category

Sanding, Polishing & Cleaning

Condition

used

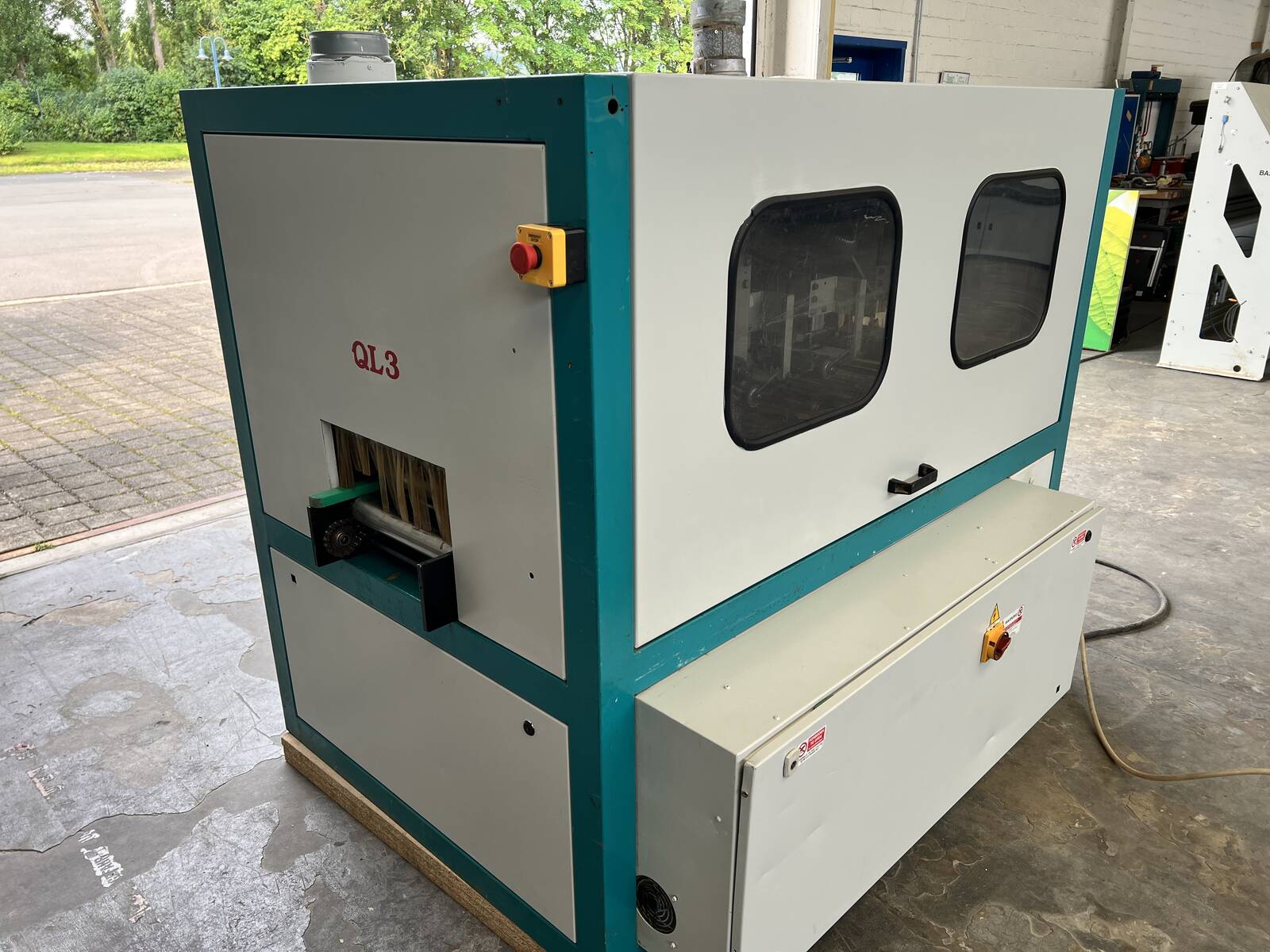

Quickwood Brush Sanding Machine / Moulding Sanding Machine bottom/top - second-hand QL 3 main picture

Description

Double-sided brush sanding machine / strip sanding machine
make Quickwood
type QL 3

Year of manufacture 2004

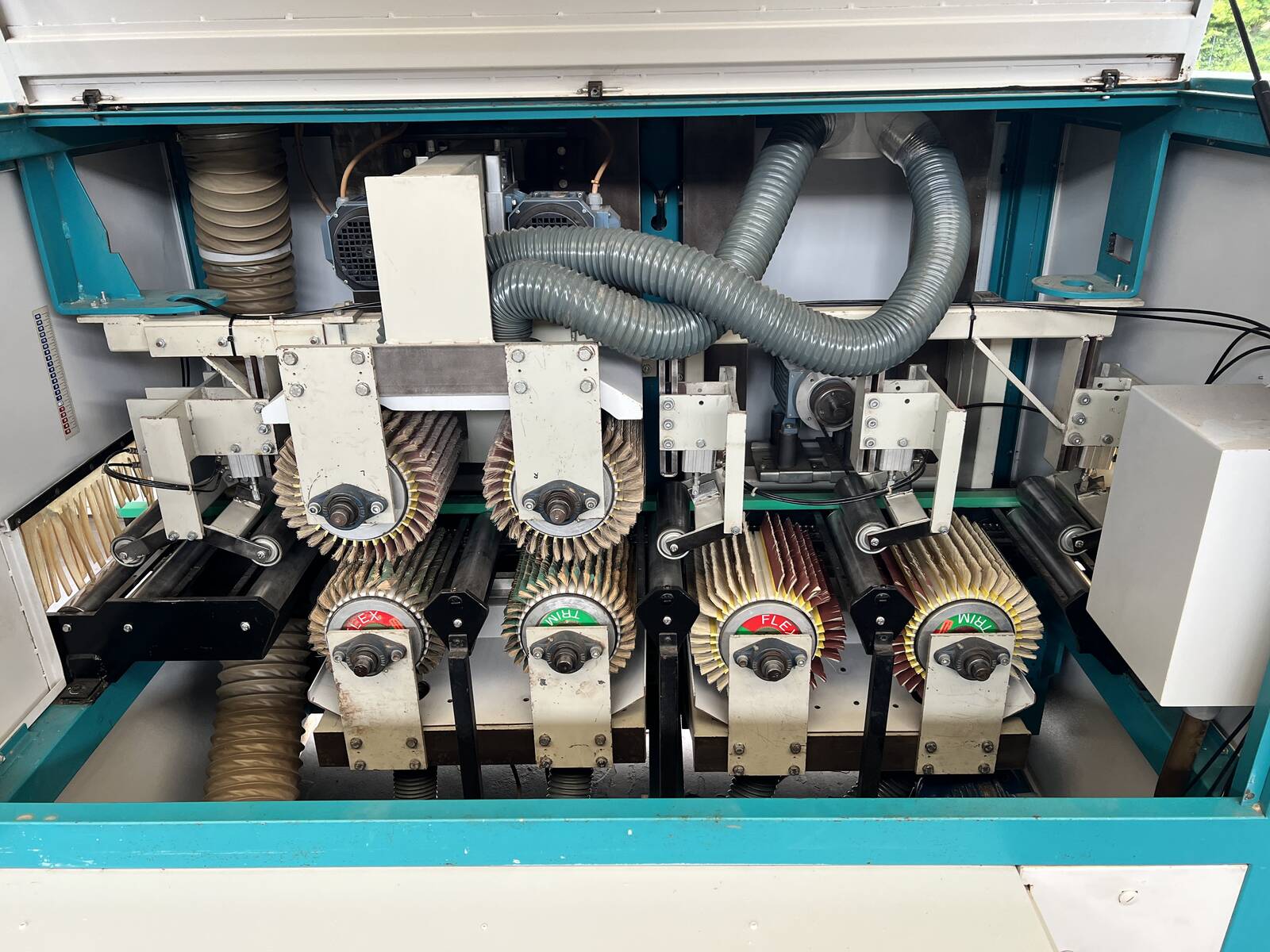

Structuring and sanding machine, double-sided operation, with a total of 6 brush units.

Machine suitable for integration in machine line, as table height is constant.

Working width 300 mm
Passage height approx. 100 mm
Minimum part length approx. 500 mm

Equipped with:

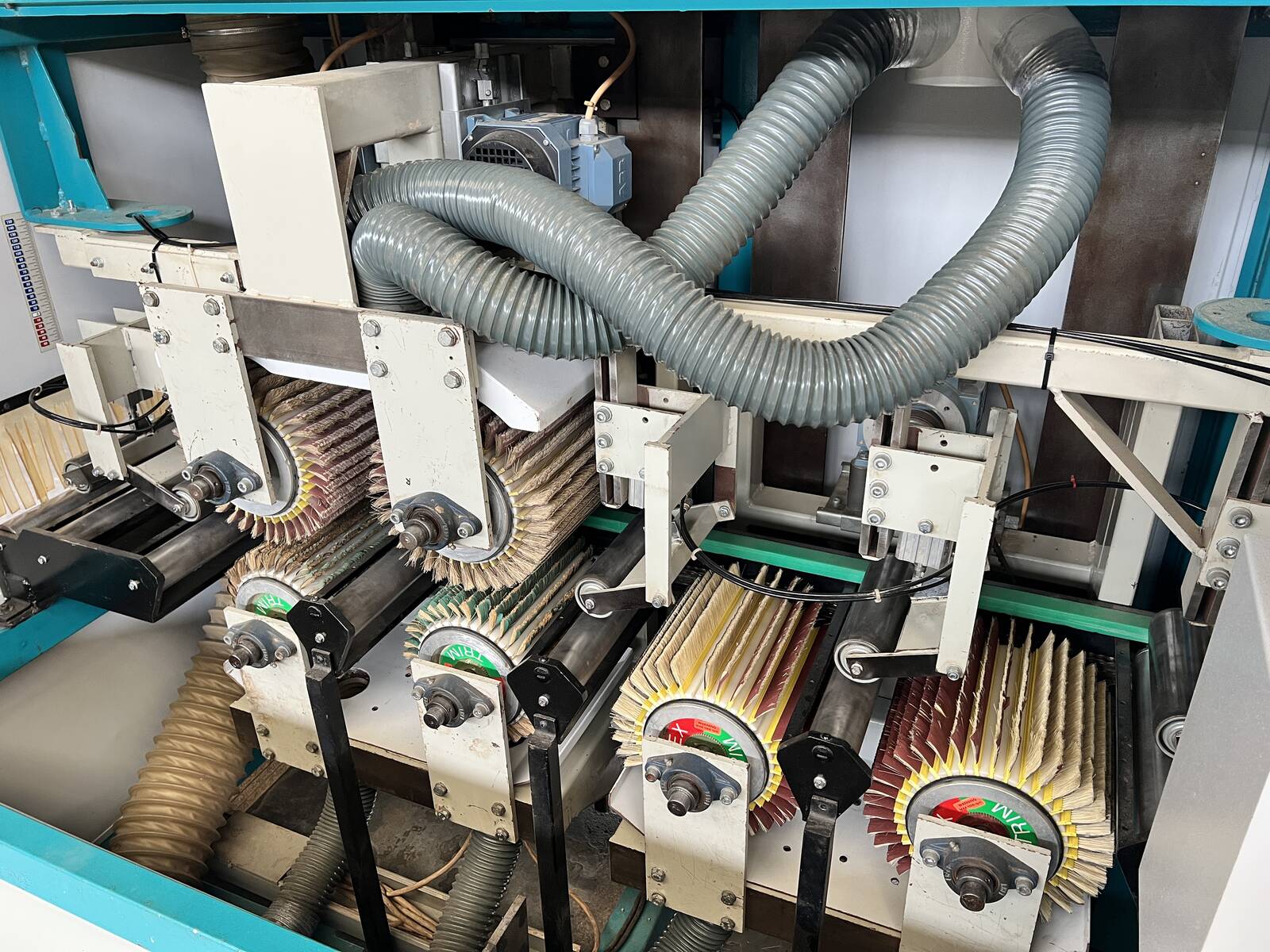

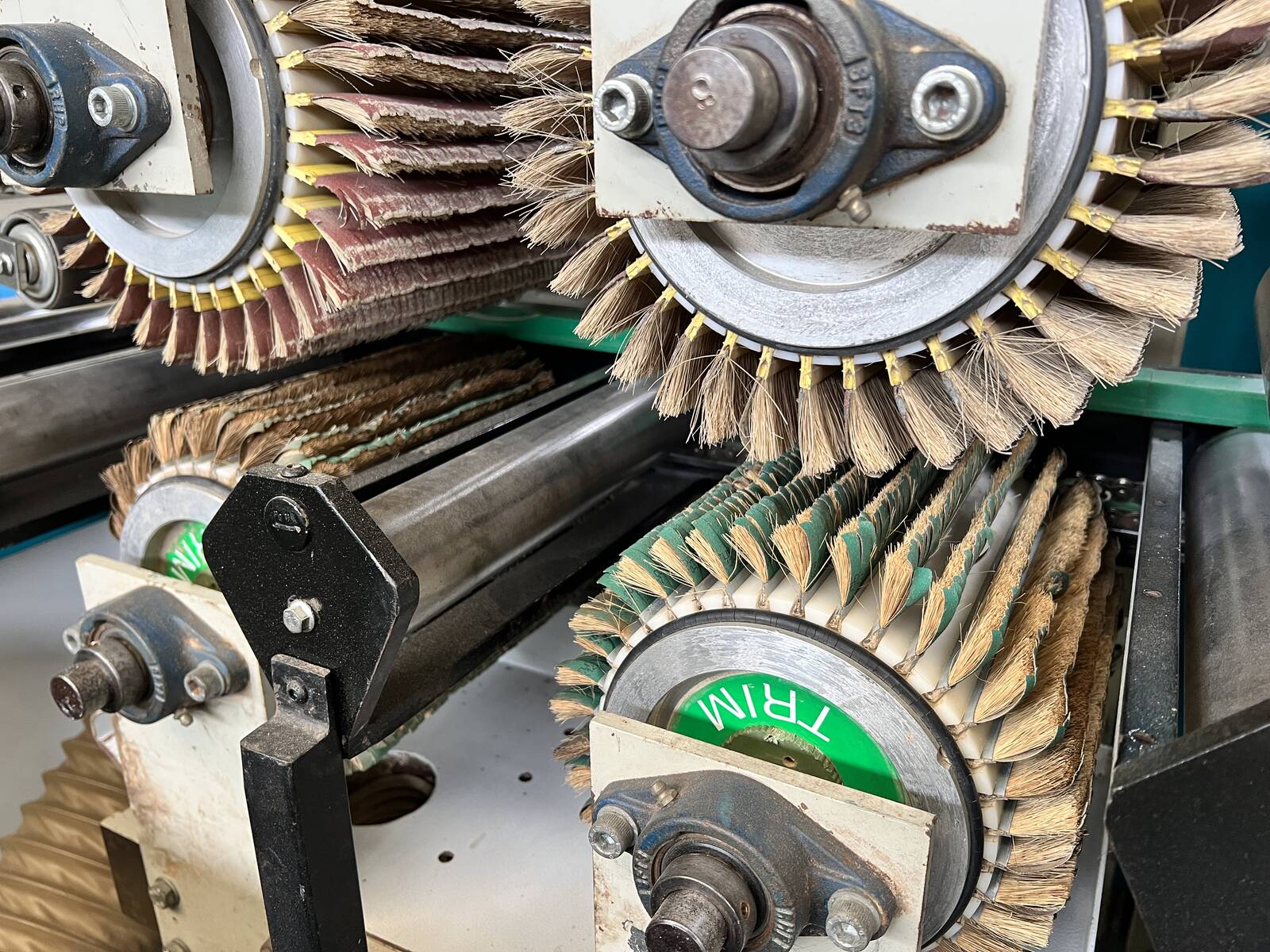

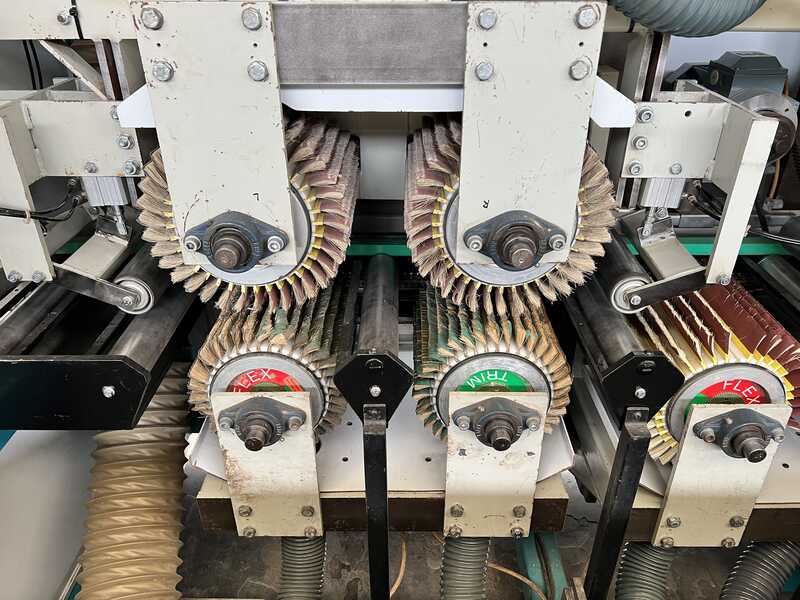

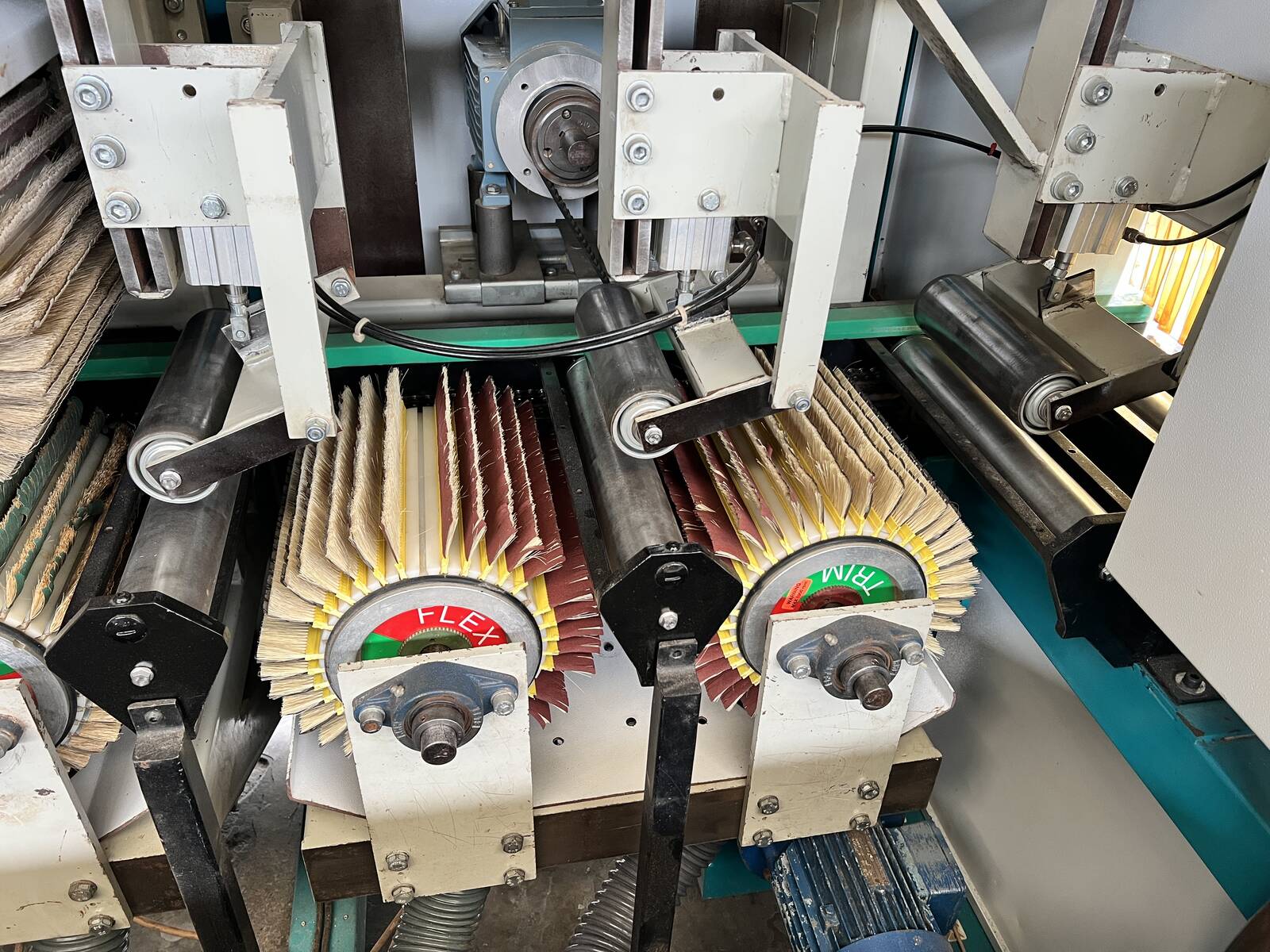

2x brush unit from below, 1.5 kW each, frequency-controlled, suitable for structuring and sanding
2x brush unit from below, 0.75 kW each, frequency-controlled, suitable for fine sanding
2x brush unit from above, 0.75 kW each, frequency-controlled, suitable for fine sanding

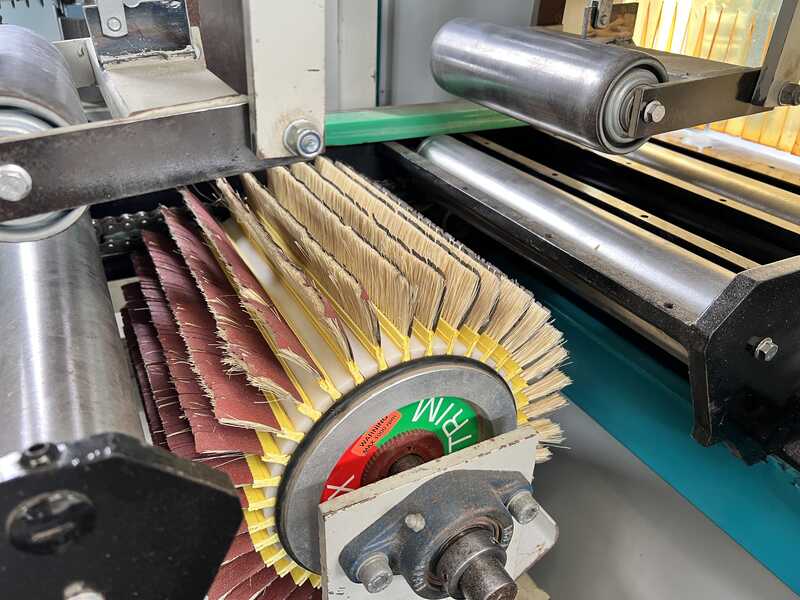

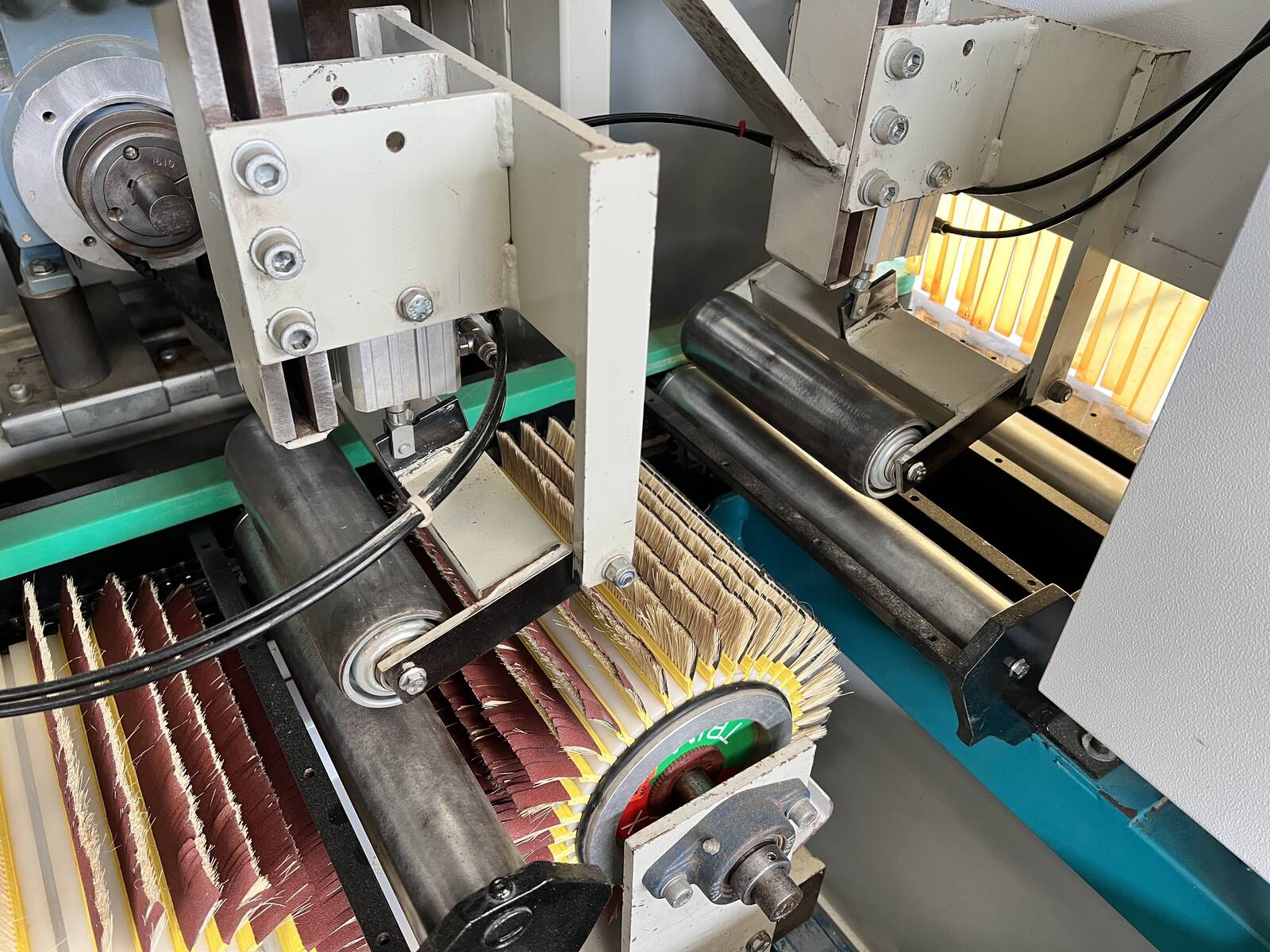

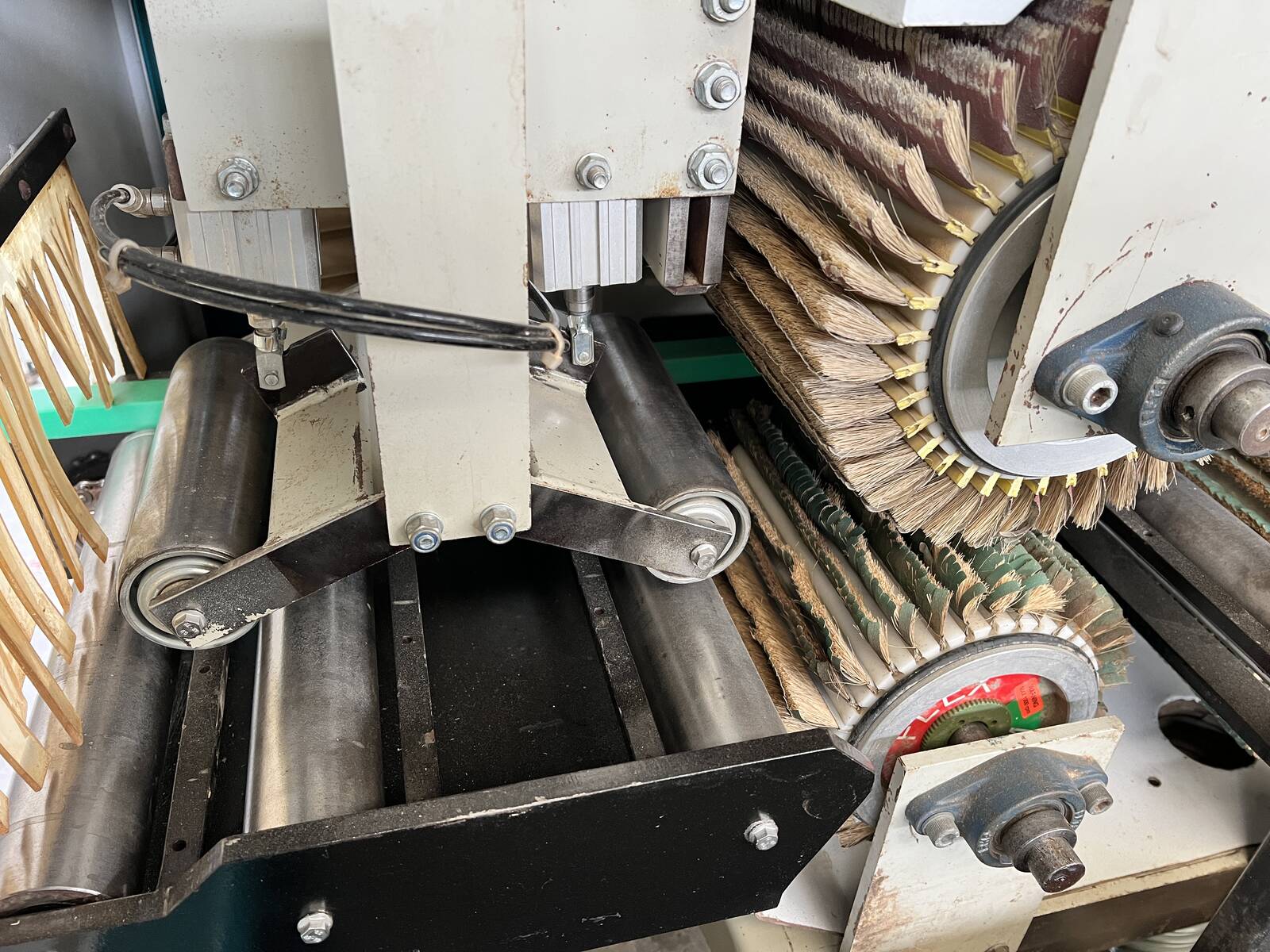

Pneumatically controlled pressure rollers for workpiece guidance and stabilization

Infinitely variable feed rate, approx. 5 - 25 m/min.

Suction connections 150 mm

Dimensions approx. 2045 x 1350 x 1700 mm LxWxH
Weight approx. 1000 kg

Machine will be cleaned and technically checked in the meantime.
Delivery time approx. 4 weeks
