Description
Double-sided brush sanding machine / strip sanding machine
make Quickwood
type QL 3
Year of manufacture 2004
Structuring and sanding machine, double-sided operation, with a total of 6 brush units.
Machine suitable for integration in machine line, as table height is constant.
Working width 300 mm
Passage height approx. 100 mm
Minimum part length approx. 500 mm
Equipped with:

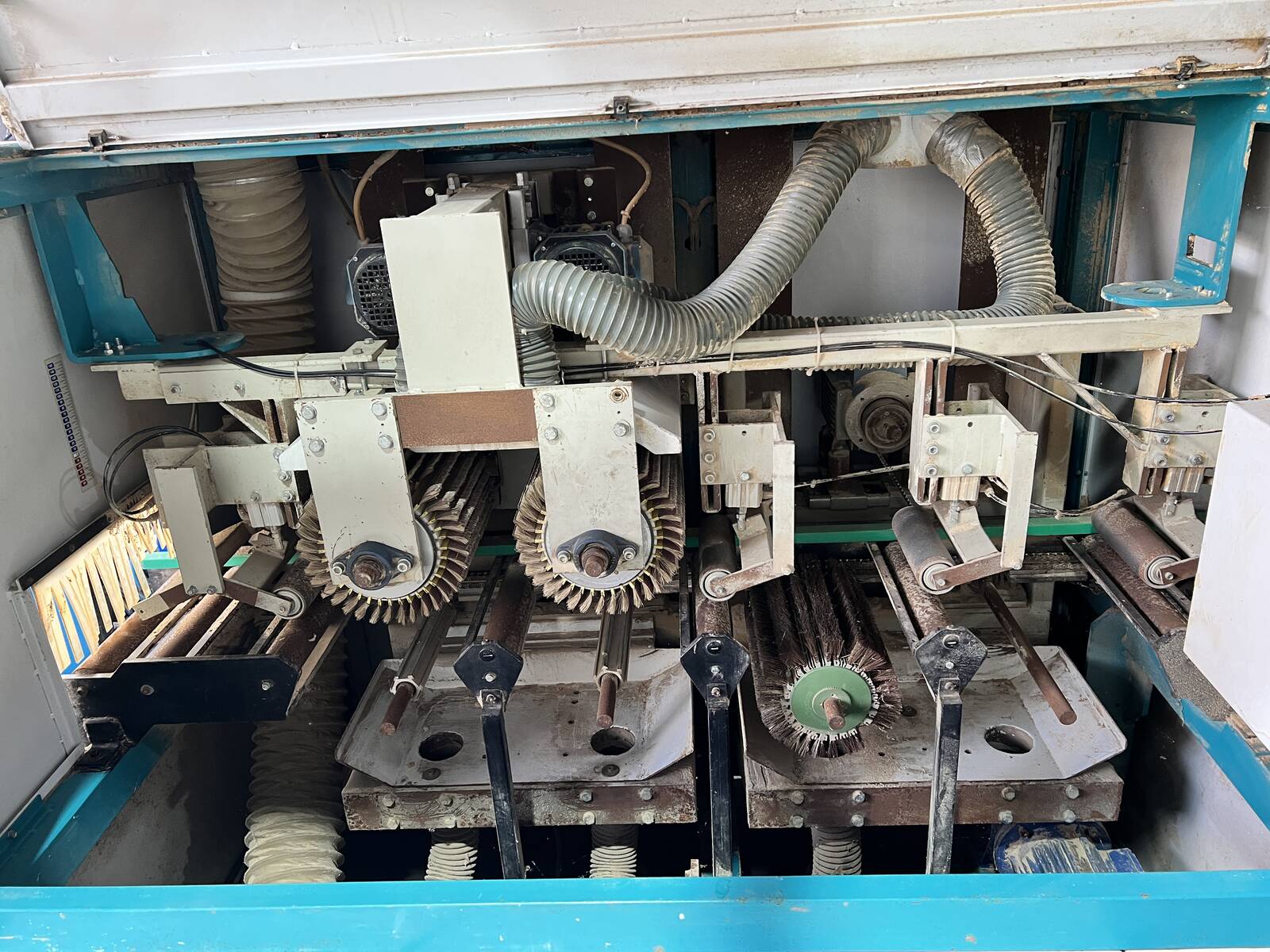

2x brush unit from below, 1.5 kW each, frequency-controlled, suitable for structuring and sanding
2x brush unit from below, 0.75 kW each, frequency-controlled, suitable for fine sanding
2x brush unit from above, 0.75 kW each, frequency-controlled, suitable for fine sanding
Pneumatically controlled pressure rollers for workpiece guidance and stabilization
Infinitely variable feed rate, approx. 5 - 25 m/min.
Suction connections 150 mm
Dimensions approx. 2045 x 1350 x 1700 mm LxWxH
Weight approx. 1000 kg
Machine will be cleaned and technically checked in the meantime.
Delivery time approx. 4 weeks
Photos de
Brush Sanding Machine / Moulding Sanding Machine bottom/top - second-hand
