Fisher + Rückle Cross Veneer Splicer - second hand not available

Machine number 5833

Manufacturer

Fisher + Rückle

Model

FURNIMASTER -plus FZR-21

Category

Veneer Processing

Condition

used

This machine is not available anymore.

We hope one of the following machines fits your needs:

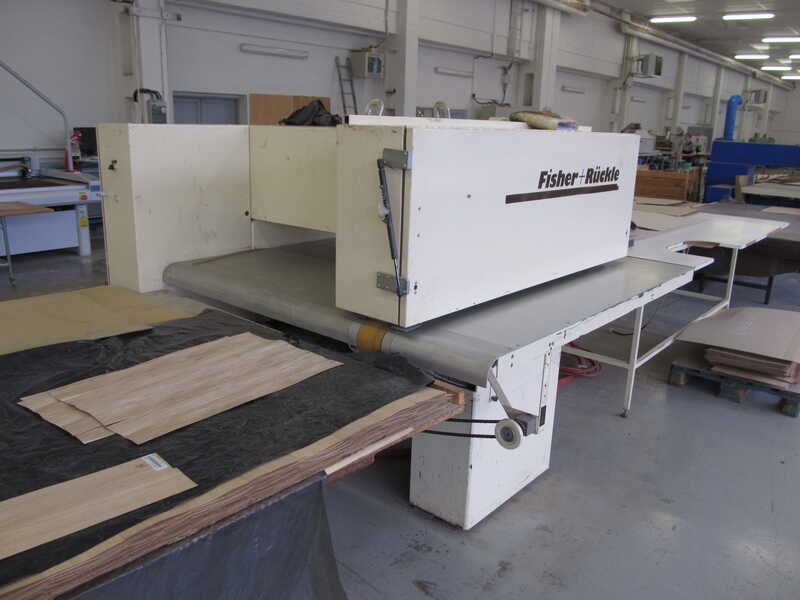

Fisher + Rückle Cross Veneer Splicer - second hand FURNIMASTER -plus FZR-21 main picture not available

Description

Veneer Cross Splicer
make Fisher & Rückle
type FURNIMASTER-plus FZR-21

built 2007

For the rational, joint-proof transversal splicing of parallel veneer strips to endless or individual formats. The peeled or knife-cut veneer strips must be pre-glued with PVAc or urea glues.

Capacity:
approx. 17-20 cycles / min.

Technical data:
veneer strip lengths (in the fibre direction) 350 - 2100 mm
veneer strip width (cross to the fibre direction) 50 - 600 mm
veneer format width (transverse to the fiber direction), min. 250 mm
veneer strip thickness 0.3 - 1.5 mm

Equipment:
feeding system for the efficient and comfortable feeding of veneer strips
panel-Automatic for the sliding of veneer formats with pre-sorted veneer strips or selected veneer leaf number.

Features:
- FURNIMASTER-plus has a veneer alignment function (veneer transport).
- perfect jointed knife-cut and / or peeling veneers of various types of wood
- the world's best-selling cross-splicing system for joined veneers
- unique and several hundred times proven hydraulic horizontal clamping system for completely dense glue joints
- robust and strong design guarantees a long service life and a reliable and fail-safe operation
- easy operation thanks to touchscreen with clearly arranged symbols and separate pressure regulators
- accessible traverse for easy and quick access to the heating plates for cleaning and maintenance work
- low wearing parts, low operating and maintenance costs

Direct depositing device DA-25
For removing and depositing the veneer formats directly after splicing or format cutting. The veneer formats are removed gently, without mechanical stress and deposited. The compact depositing device can be quickly and easily removed for service work or the Clipper blade change at the rear of the machine.
min. veneer format length (in the fibre direction) 350 - 600 * - 2100 mm
veneer format widths (cross to the fibre direction) 250 - 500 * - 2500 mm
max. stacking height 500 mm
stacking from left, right or rear
No guarantee of stack precision.
