Furniertechnik Longitudinal veneer splicing machine - second-hand not available

Descripción

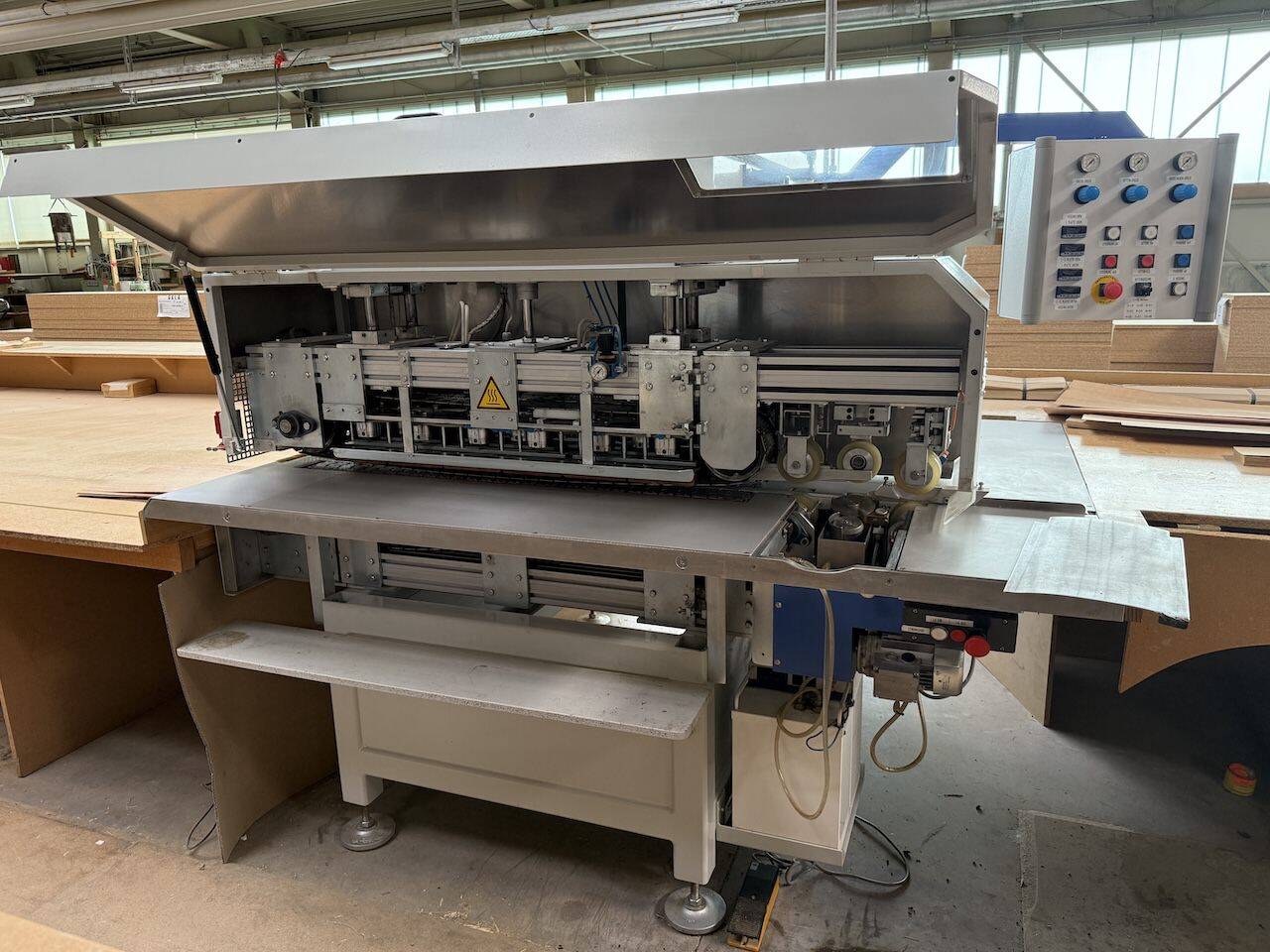

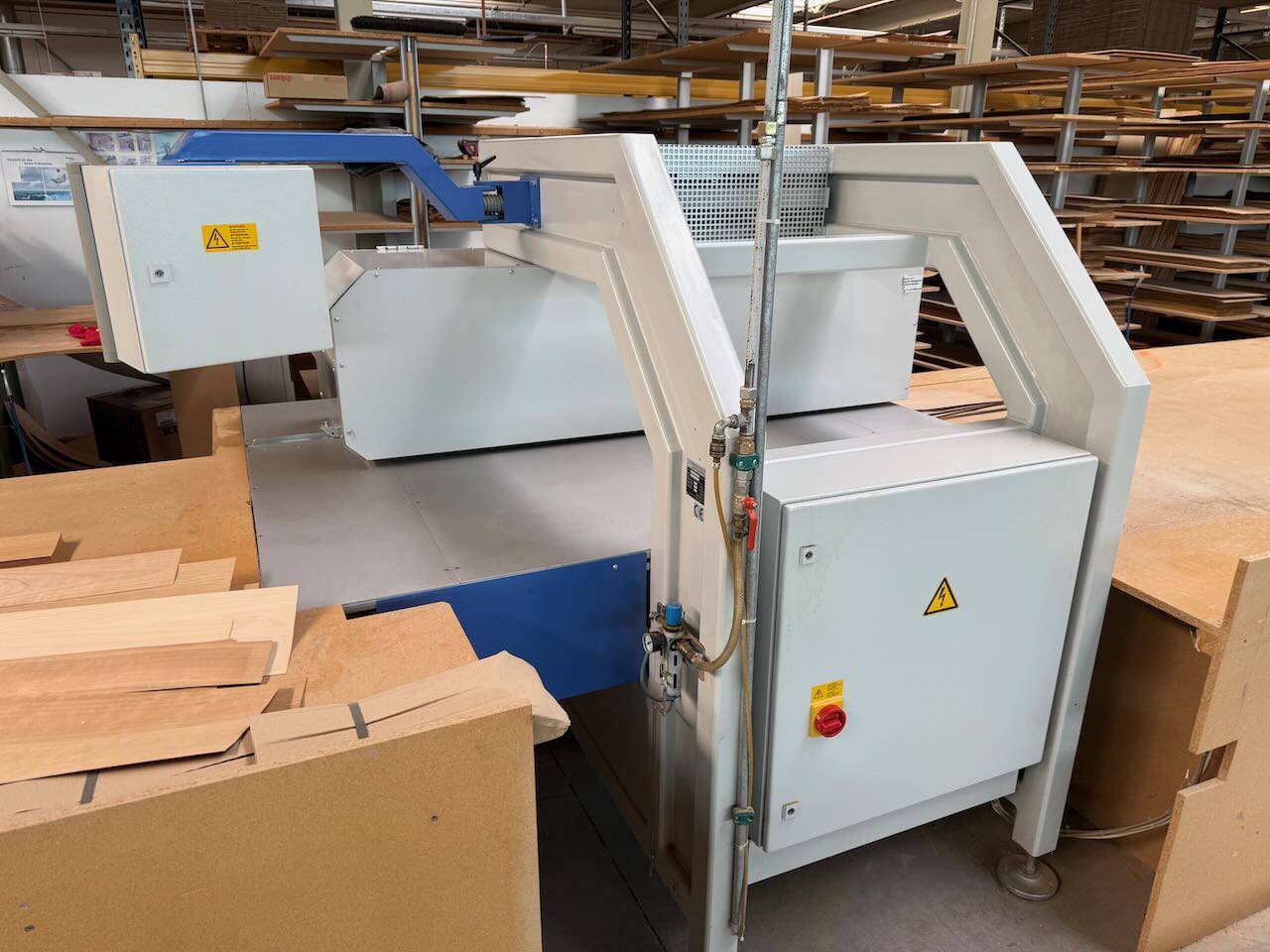

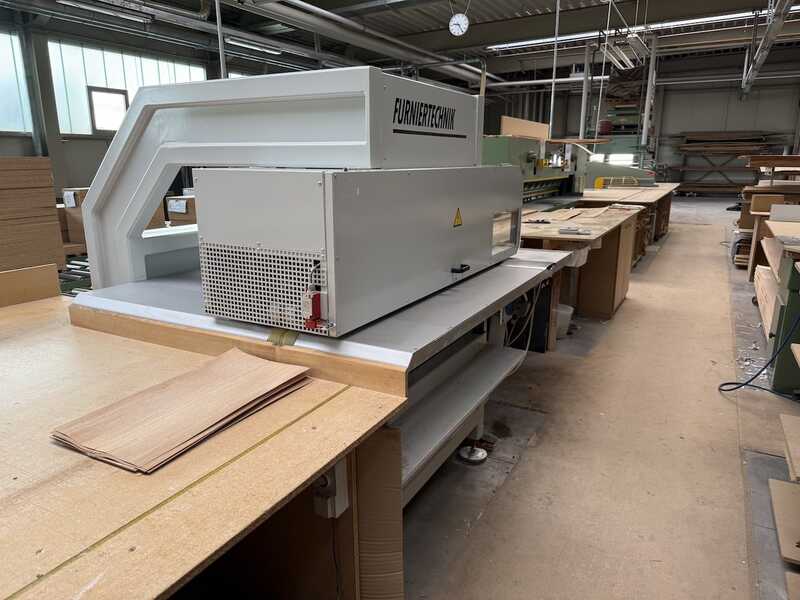

Veneer Splicer
make Furniertechnik
type LZ

Veneer strip assembly machine with integrated joint gluing

Veneer thickness: 0.4–2.5 mm
Veneer width: min. approx. 40 mm
Veneer strip length min. approx. 300 mm

Outrigger width 1000 mm

Transport speed infinitely variable, approx. 10 – 40 m/min.
Heating zone length approx. 1,000 mm
Heating temperature up to 230° C
Heating elements infinitely variable

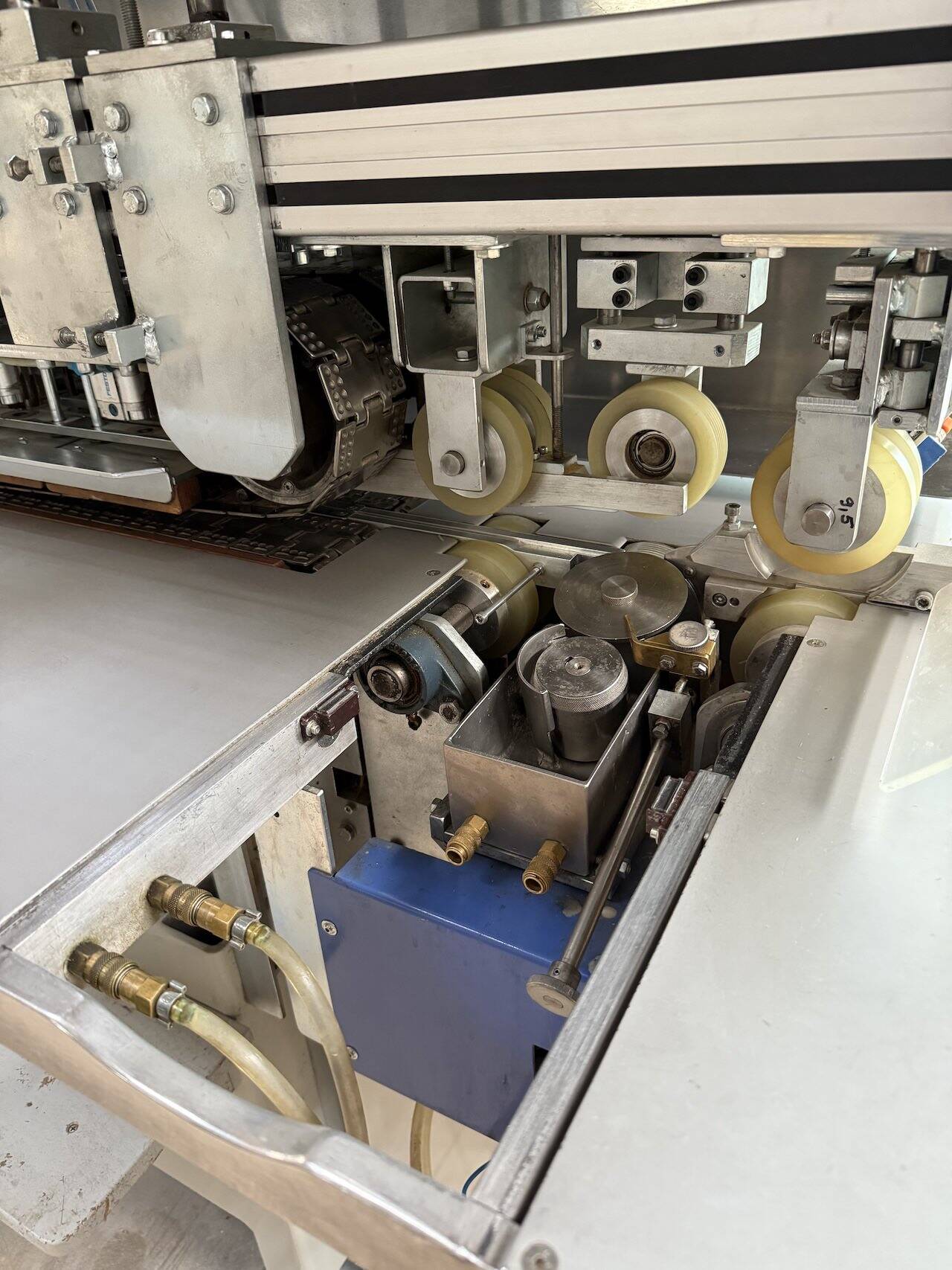

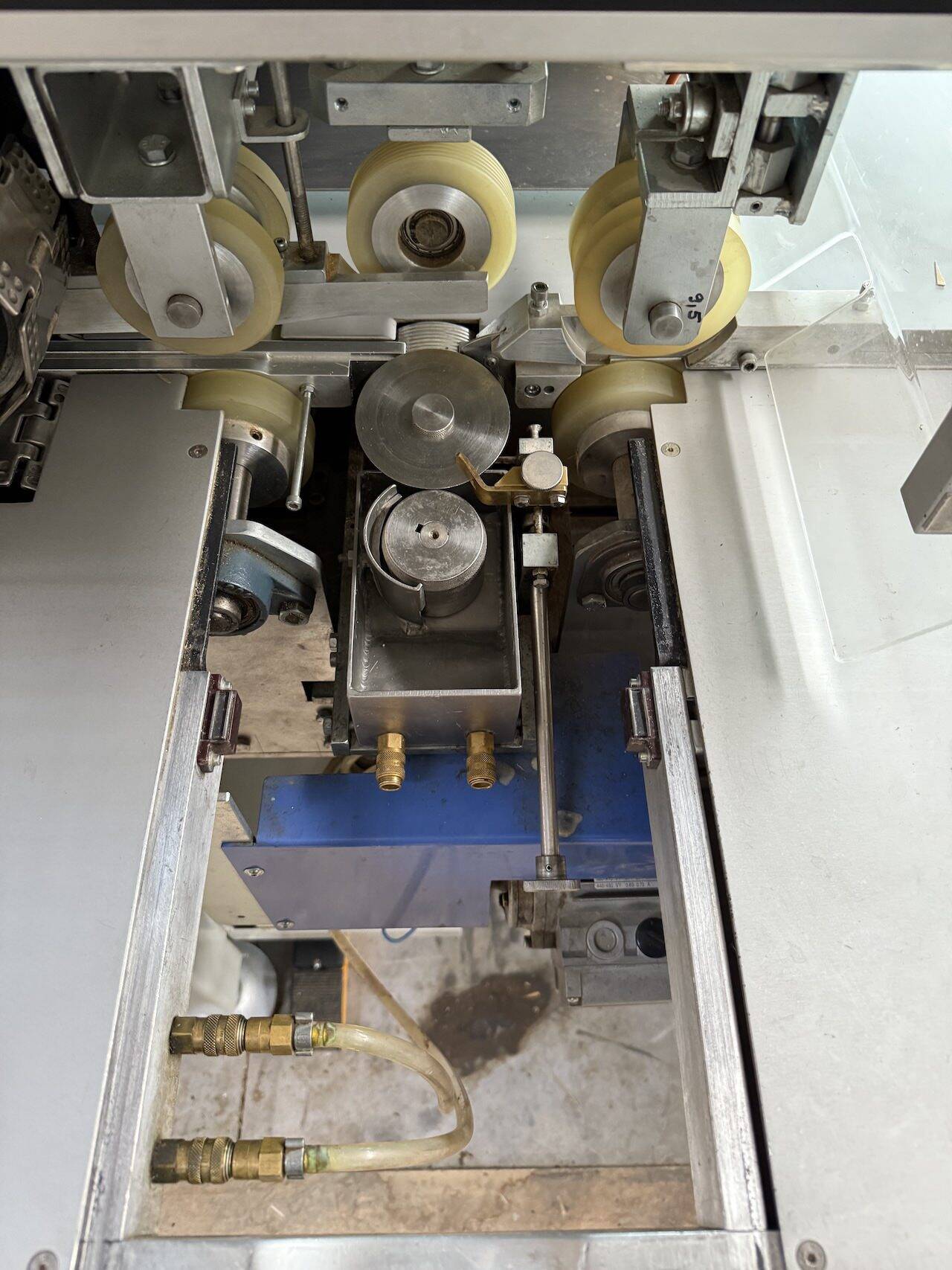

Glue type: urea and PVAc glue

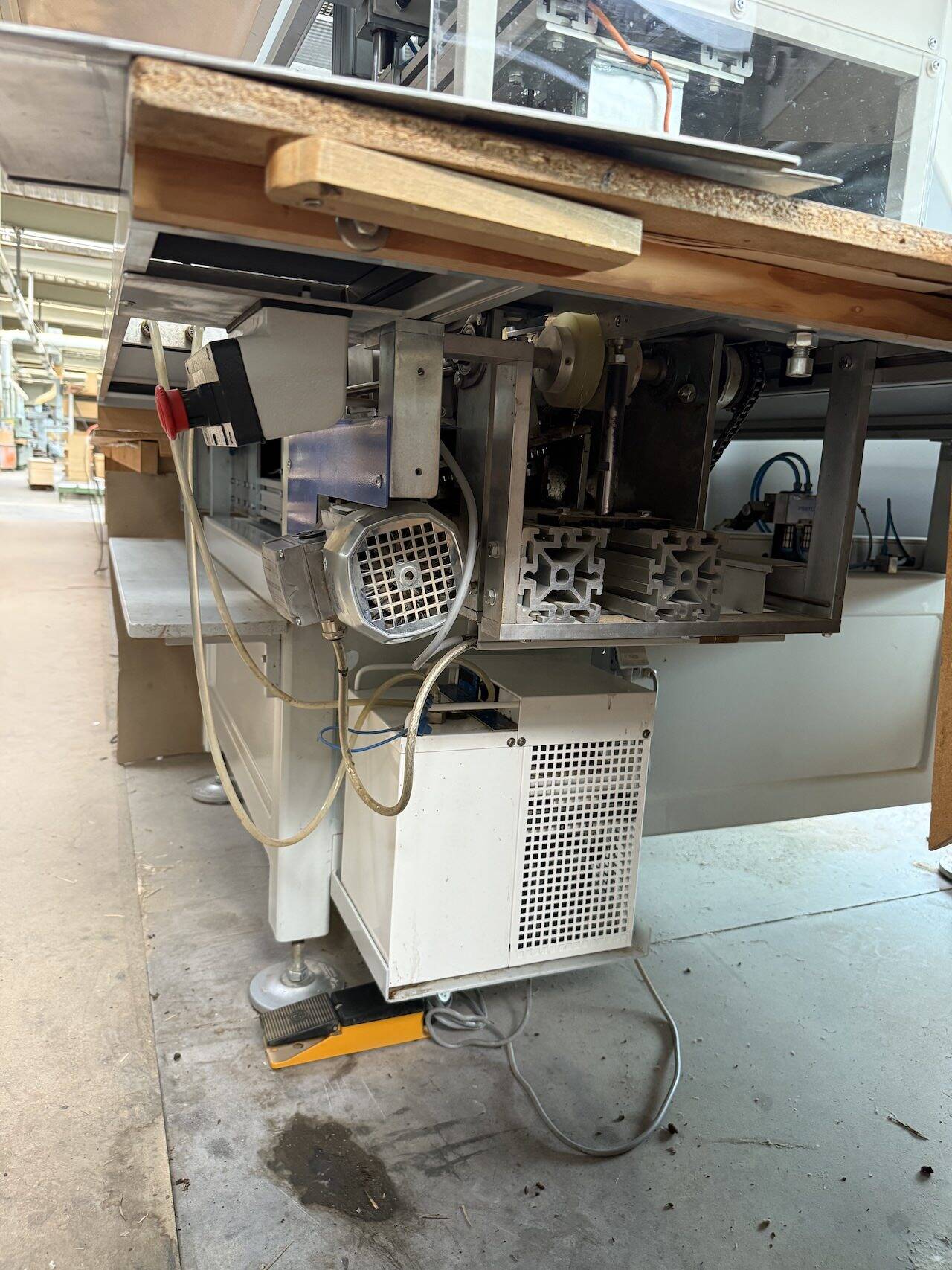

Includes glue pot cooling unit for longer pot life

Total connected load approx. 6.0 kW
Voltage: 400 V / 50 Hz
Compressed air: 6 bar
Compressed air consumption: approx. 5 L / min

Dimensions approx. 2000 x 1800 x 1700 mm
Weight approx. 1300 kg
